AHU TE
AHUW TE
Installationinstructions

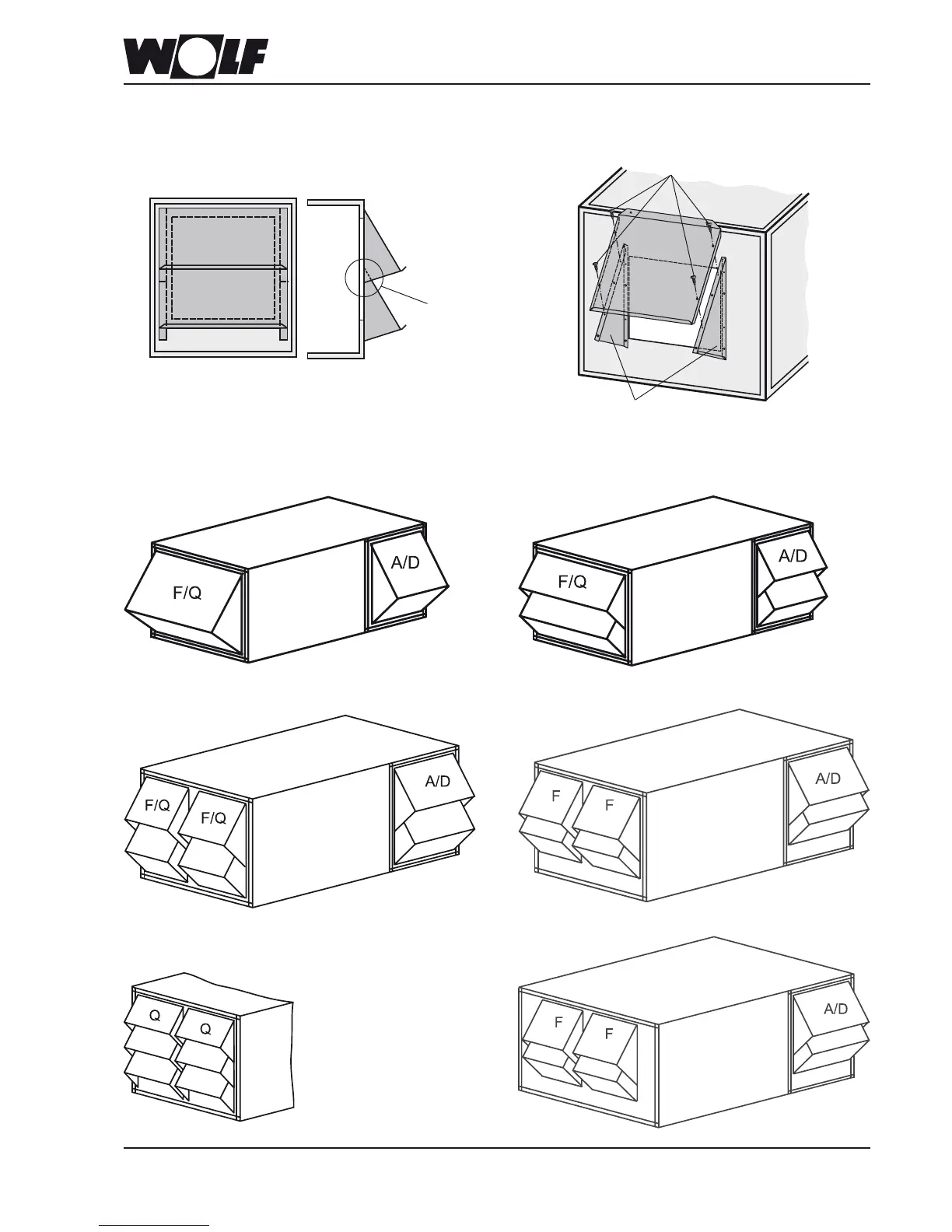

Intake/dischargehood
Side panels
(rain gutter externally)
Top
section
Screws
Assemble the side panels and top section as shown, using
the screws supplied.
Foracongurationwithtwoorthreeintake/dischargehoods
one above the other, the upper hood overlaps the lower hood.
Overlap
Versions
AHU TE 21 - 210
AHU TE 270 - 380
AHU TE 680AHU TE 450 - 600
AHU TE 850 - 1000AHU TE 680 - 1000
