INSTALLATION INSTRUCTIONS
BATTERY INSTALLATION
The battery-powered ignition uses a AAA
battery, provided with the BBQ grill, to be
i
nstalled behind each ignition button.
T
o install or replace, remove the ignition
button by unscrewing in a counterclockwise
direction. Insert the AAA battery into the cavity
w
ith the positive end in first and replace the
ignition button. Refer to the illustration below.
To make sure the sparker is operating, press
the ignition button and listen for a spark.
BBQ GRILL COMPONENTS
The porcelain-coated cast iron grill grates are
5" (127) wide for easy handling and cleaning.
B
elow the heavy-duty grill grates are the
stainless steel heat radiants located every 5"
(127). These radiants, provided with the BBQ
g
rill, are positioned over the grill burners to
concentrate the heat. Refer to the illustrations
below.
The radiants are supported on each end by a
pin located just above the grill burner. Be sure
the heat radiants are oriented so that the
triangular cut-out is positioned to the rear of
the grill.
The Wolf BBQ grill design eliminates the use of
briquettes or lava rocks. The grill burners
produce 10,000 Btu/hr (2.9 kW) per burner.

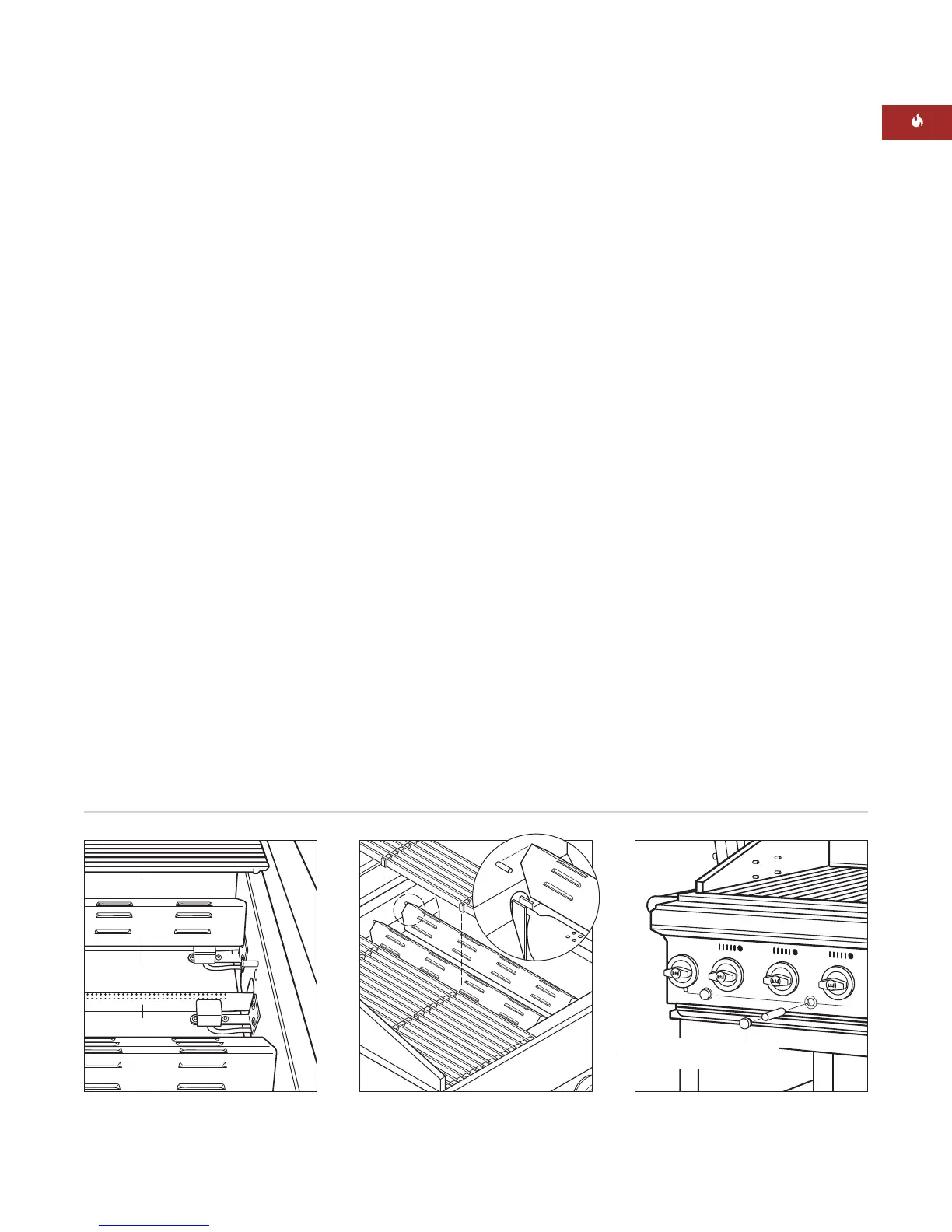

BBQ grill components Radiant positioning
Insert battery behind
ignition button
Location of battery
