Wolf ICBDF304 - Page 16

Wolf Warming Drawers 16
51 mm x 51 mm
ANTI-TIP BLOCK
D
IMENSION
WILL VARY*
597 mm
TYPICAL
*Dimension must accommodate height of anti-tip block and drawer face overlap.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

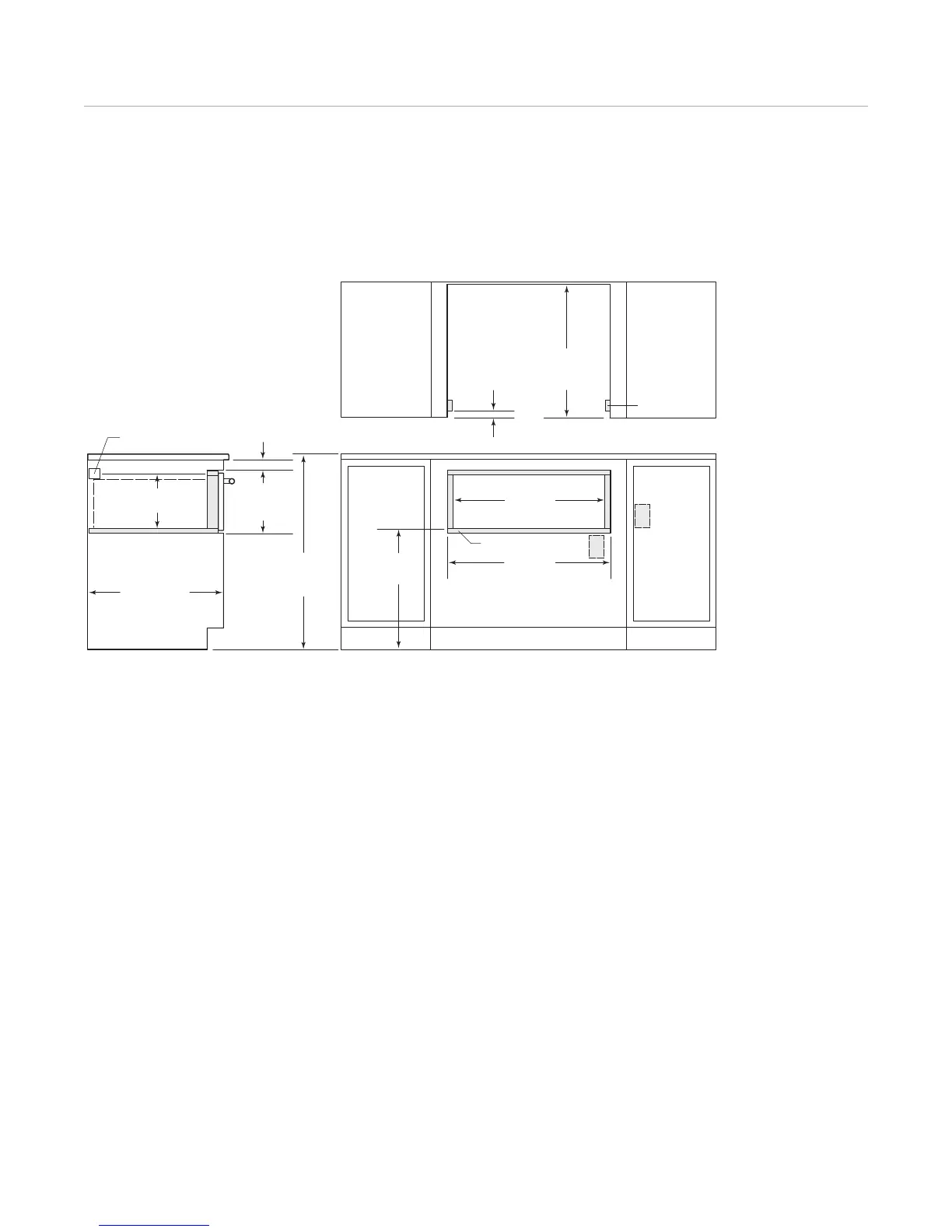

FRONT VIEWSIDE VIEW
610 mm
min
CABINET DEPTH
772 mm
F
LUSH INSET WIDTH
727 mm
OPENING WIDTH
22 mm PLATFORM
22 mm TOP AND SIDE CLEATS
914 mm
F
LOOR TO
C
OUNTERTOP
276 mm
F
LUSH INSET
HEIGHT
232 mm
OPENING HEIGHT
E
E
S
IDE CLEATS
610 mm
min
FLUSH INSET
DEPTH
25 mm
T
OP VIEW
E Series, Pro Series or Integrated Drawer Front
FLUSH INSET INSTALLATION
