Wolf ICBDF304 - Page 22

Wolf Induction and Electric Cooktops 22
914 mm INDUCTION COOKTOPS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-410V AC; 50/60 Hz
Maximum connected load:
Single phase: 11.2 kW
3phase: 4 kW
Total amps:
Single phase: 49 amps
3phase: 18 amps
Refer to the wiring diagram showing the connections for
each lead to the terminal box on the unit.
Induction Cooktop Electrical Requirements
IMPORTANT NOTE: B
e aware of local codes and ordi-
nances when installing your service.
381 mm INDUCTION COOKTOPS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-410V AC; 50/60 Hz
Maximum connected load:
Single phase: 3.6 kW
3phase: 3.6 kW
Total amps:
Single phase: 16 amps
3phase: 16 amps
762 mm INDUCTION COOKTOPS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-410V AC; 50/60 Hz
Maximum connected load:
Single phase: 7.2 kW
3phase: 3.6 kW
Total amps:
Single phase: 32 amps
3phase: 16 amps
N
L1

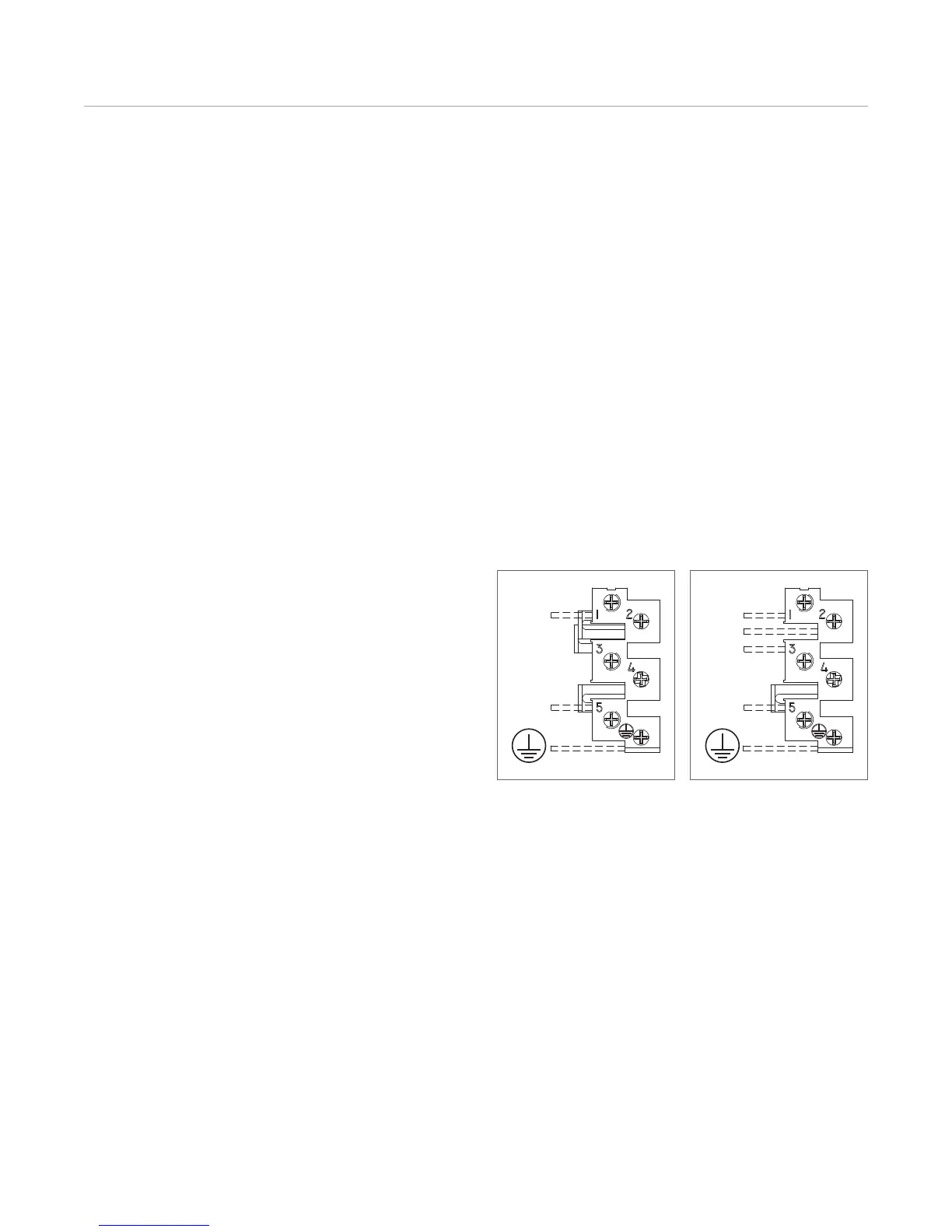

Single phase wiring diagram. 3phase wiring diagram.
N
L1
L2
L3
˜
3N
˜
