Wolf Gas Cooktops 34
102 mm
E
G
457 mm min
914 mm
FLOOR TO
COUNTERTOP
762 mm min
COUNTERTOP
T
O COMBUSTIBLE
M
ATERIALS
914 mm OVEN OPENING
254 mm
89 mm
S
EE COUNTERTOP
CUT-OUT BELOW
889 mm
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
FRONT
489 mm
CUT-OUT
DEPTH
64 mm min
229 mm TO
COMBUSTIBLE
*
229 mm TO
COMBUSTIBLE
*
S
IDE
C
ABINET
3
30 mm
max
*Minimum clearance from cooktop cut-out to combustible materials up to 457 mm above countertop.
NOTE: Gas and electrical location applies only to installation with built-in oven.
64
mm*
914 mm Gas Cooktop

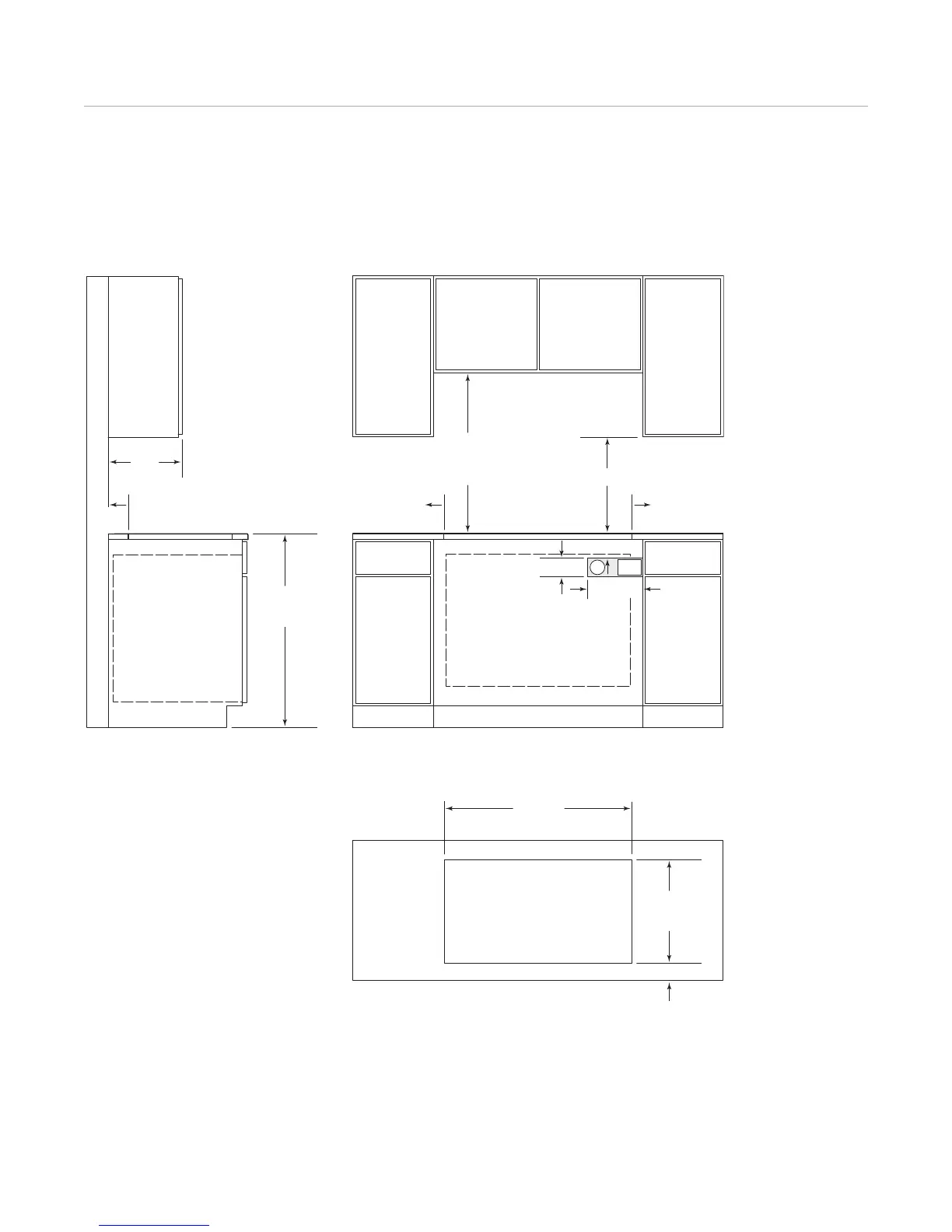

STANDARD INSTALLATION
