KG TopInstallationinstructions

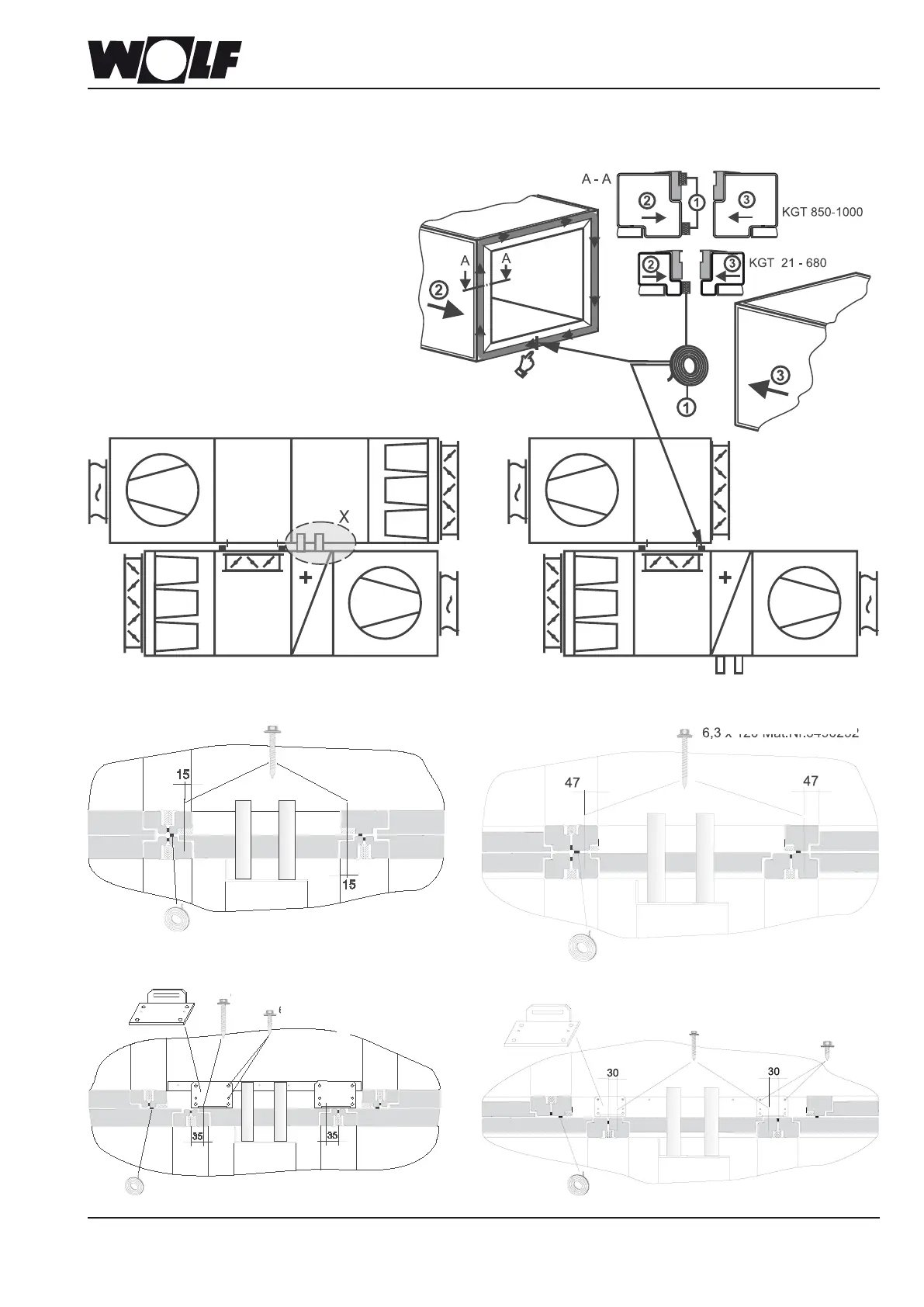

Connectingunits
All the small items required for assembly are packed inside a component with inspection
door (preferably fan section), along with the accessories supplied loose. A label inscribed
"ZubehörimGerät"(Accessoriesinside)identiesthecomponentinquestion.
KG Top 21-380
Self-drilling/tapping screw
X
6.3 x 90 Mat. no. 3490238
KG Top 450-1000
Self-drilling/tapping screw
X
6.3 x 120 Mat. no. 3490252
Self-drilling/tapping screw
Self-drilling/tapping
screw
with washer
Appliance connection bracket
Part no. 6616824
X
6.3 x 62 Mat. no. 3480031
Self-drilling/tapping screws
Appliance connection bracket
Part no. 6616824
X
8 x 120 Mat. no. 3418502
6.3 x 25 Mat. no. 3480038
6.3 x 62 Mat. no. 3480031
