Wolf KG - Piggyback Unit Installation

18
3062049_201610
KG TopInstallationinstructions
Piggybackunits
(airintake/exhaustairunits
stackedoneontopoftheother)
Piggyback units supplied with top and bottom units separated must be securely connected
on site (after the units have been positioned) and sealed tight on the whole perimeter
against rainwater penetration by means of a permanently elastic seal (weatherproof
version KGW).
UnitsaresecuredbymeansofxingelementsandSelf-drilling/tappingscrew5,5x19
on the outside, as shown (on site).
Therequisitenumberofxingelementsissuppliedwiththeair-handlingunit.
Only secure the top and bottom units together after the individual cubes unit and the
top and bottom units have been assembled.
Ifrequired,installpermanentlyresilientsealingstripsorplasticsealingprolesbefore
loweringthetopunitintopositiononthebottomunit.

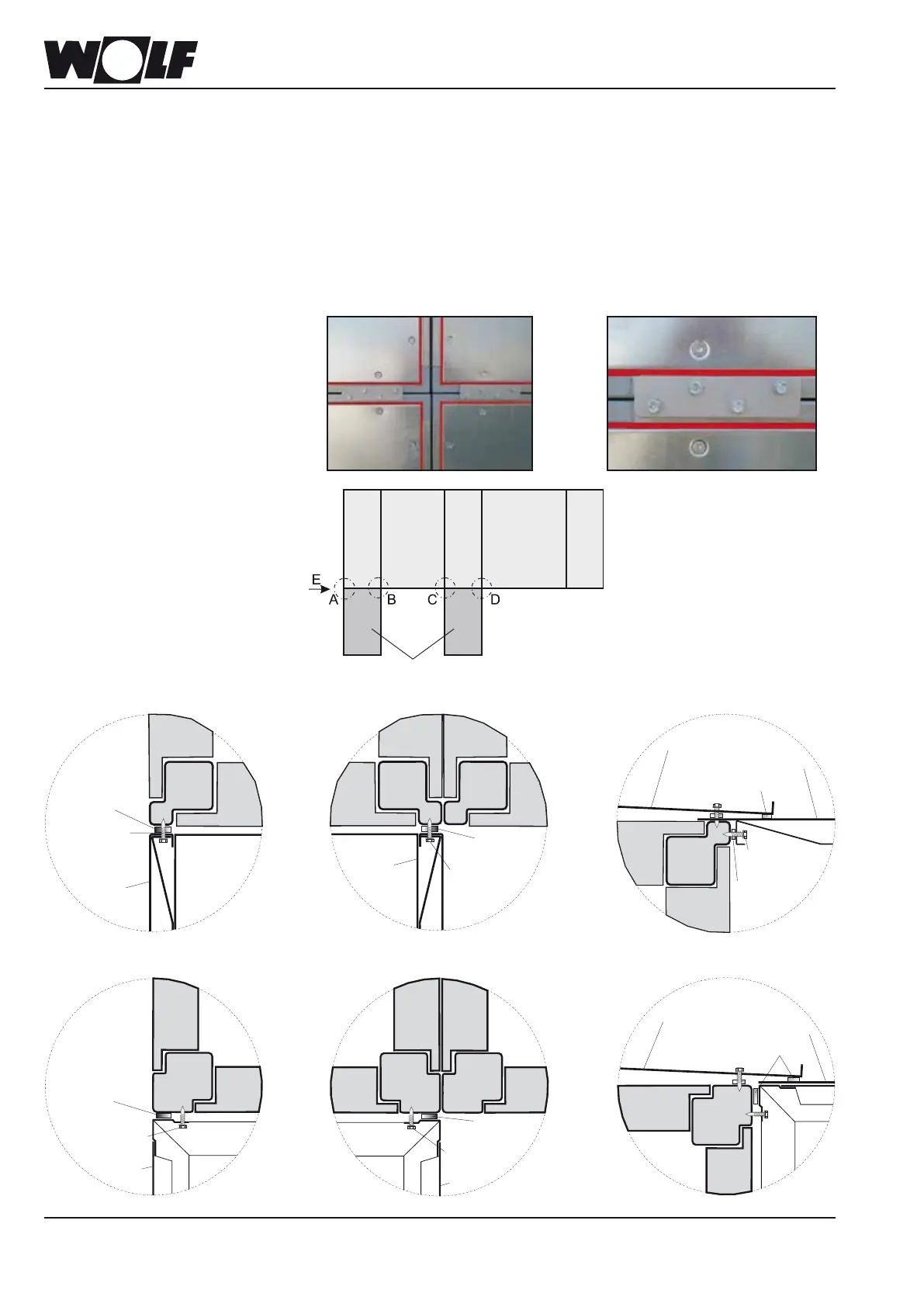

KGW projection
KGW top view
KGW projection
KGW 450-1000
Projection
Self-drilling/
tapping screw
5.5 x 19
Sealing tape
ViewA
Projection
Self-drilling/
tapping screw
5.5 x 19
Sealing
tape
ViewB,C,D
Projection
Roof
Sealing tape
ViewE
KGW 21-380
Projection
Self-drilling/
tapping screw
5.5 x 19
Sealing tape
ViewA
Projection
Roof
Self-drilling/
tapping screw
5.5 x 19
Sealing tape
Sealing tape
ViewEViewB,C,D
Self-drilling/
tapping screw
5.5 x 19
Sealing tape
Projection
