Side Burner Installation
LP GAS CONNECTION
1 Connect 2-stage LP gas regulator to are tee at location
shown. Connect are swivel connector to one end of
are tee. Refer to the illustration below.
2 Connect regulator assembly to exible gas line coming
into grill cart from side burner as shown in the illustration
below.
3 Connect regulator assembly to grill manifold at are
swivel connector as shown in the illustration below.
4 Reinstall rear panel and door of grill cart. Reposition grill
drip tray. Place burner cap on burner head, place grate
on burner pan and afx knob to bezel with bezel nylon
liner.
NATURAL GAS CONNECTION
1 Split high pressure natural gas line into two lines, one to
attach to grill natural gas regulator and one to attach to
side burner via exible line and
1
/2" NPT adapter. Place
exible gas line through cart access hole.
2 Place exible gas line through cart access hole and
attach to side burner regulator at pipe elbow. Elbow may
be rotated to face downward for larger adapters. Do not
rotate elbow upward. Refer to the illustration below.
INSTALLATION
FLARE
SWIVEL
LP GAS
REGULATOR
FLARE
TEE
FLEXIBLE
GAS LINE
GRILL
MANIFOLD

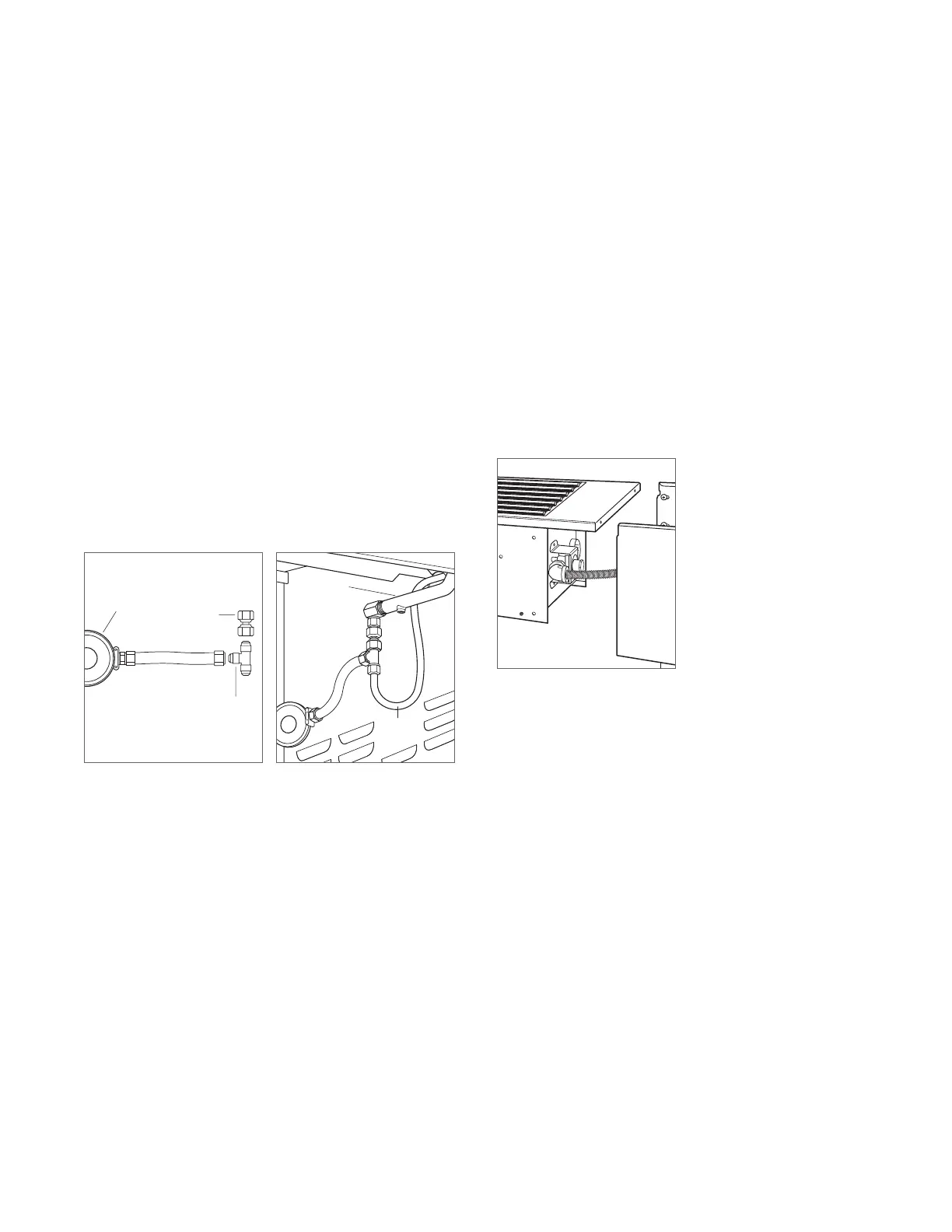

LP gas regulator assembly
LP gas connection
Natural gas connection
