Side Burner Installation
AUXILIARY HARNESS (IF APPLICABLE)
If the Wolf outdoor grill has a serial number prior to the
numbers listed (OG30: 11364339, OG36: 11363946,
OG42: 11363911) an auxiliary harness will be provided
with the side burner. If not, contact Wolf customer care
800-222-7820.
1 Upper rear panel of grill cart must be removed to install
auxiliary harness. Remove rear panel by removing four
screws.
2 With wire ties provided, attach auxiliary harness to re
box n or existing wire harness. 4-pin connector cluster
should be placed facing rear of grill and 2-pin connector
facing front. Harness must be tied down tightly and must
not touch grill re box. Refer to the illustration below.
3 If connected, disconnect transformer 4-pin connector at
rear of grill. Attach one of 4-pin connectors to 4-pin con-
nector attached to grill. Attach other 4-pin connector to
4-pin connector from transformer.
4 Remove unpopulated connector housing from wire har-
ness coming from grill. Insert each connector housing
from side burner harness to corresponding housing on
grill harness and on auxiliary harness. There are two con-
nections to be made. Refer to the illustrations below.
5 Reinstall upper rear panel of cart.

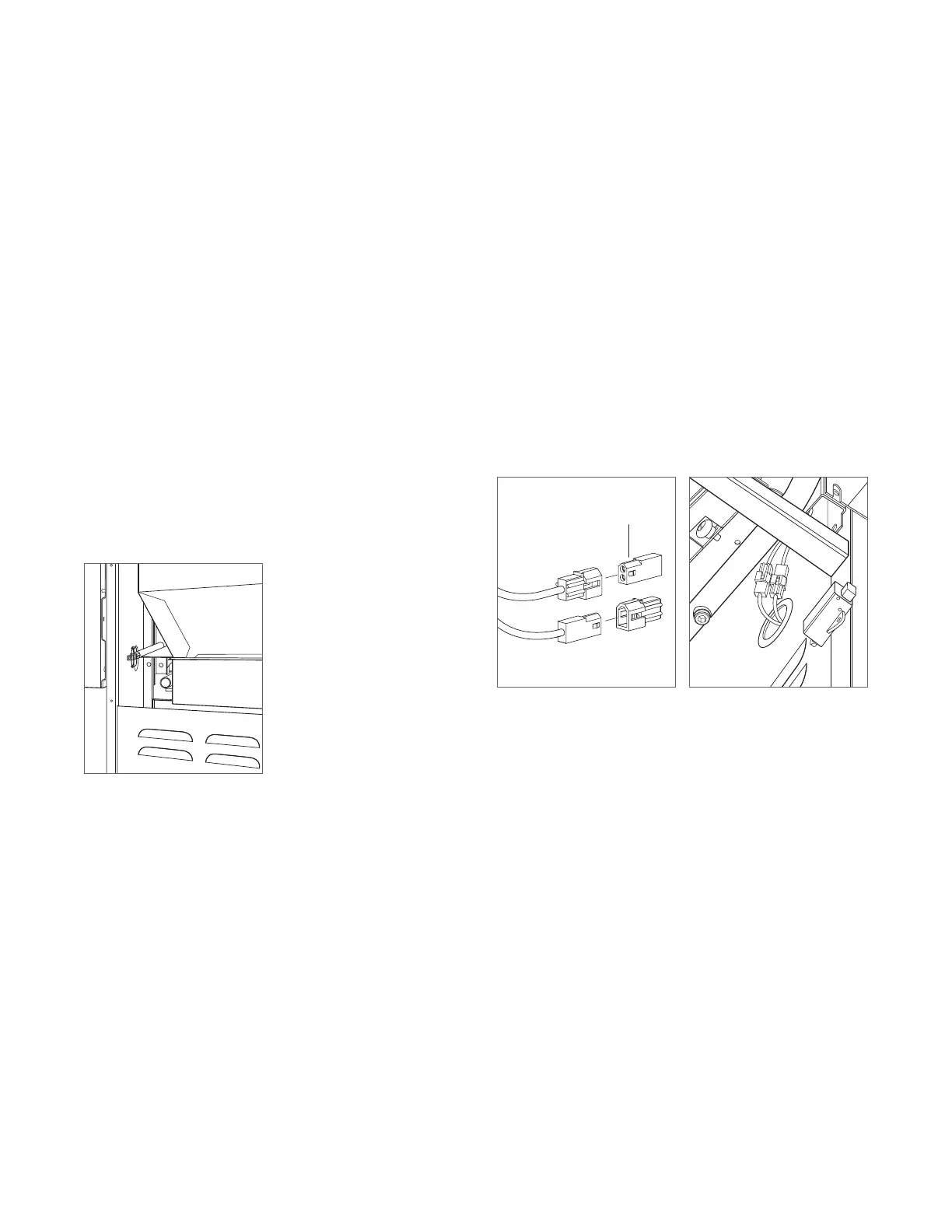

INSTALLATION
Auxiliary harness
UNPOPULATED
CONNECTORS
Connectors
Connector housing
