Component Access / Removal
Outdoor Grill (OG) Series
4-9
#814144 - Revision A - july, 2009
Gas Regulator (Natural Gas - Convertible)
The gas regulator is attached to the end of the manifold
pipe, between the manifold and the gas supply line.
NOTE: The directions below were written with the
assumption that the grill is sitting on a cart and/or there
is access to the manifold from the bottom front or bot-
tom rear of the grille. If there is no such access, the
grill will need to be pulled forward to access the regula-
tor.
To remove the regulator (See Figure 4-17)
1. Switch gas supply to the appliance OFF.
2 Use appropriate size and type wrench to disconnect
gas supply line from bach side of regulator.
3 Use a 1-1/4” wrench or pipe wrench to extract regu-
lator from manifold.
NOTE: When reassembling, use only pipe thread com-
pound. Never use Teflon tape to seal gas pipe connec-
tions.
Landing Ledge (aka Bullnose)
The landing ledge is attached to the front of the burner
box with bolts. The two upper bolts (one each side),
pass through holes in the back of the landing ledge and
into threaded inserts in the burner box. The two lower
bolts pass through slots in the in the back of the landing
ledge and into threaded inserts in the burner box.
To remove the landing ledge, first detach the front panel
from the landing ledge as described in steps 1 and 2 of
Front Panel Assembly removal instructions, then (See
Figure 4-18):
1. With a 5/16” (8 mm) wrench or a crescent wrench,
extract the upper mounting bolts, one each side.
2. With a 7/16” (11 mm) wrench or a crescent wrench,
loosen, but do not remove, the lower bolts, one
each side.
3. Lift the landing ledge straight up then away from the
burner box.

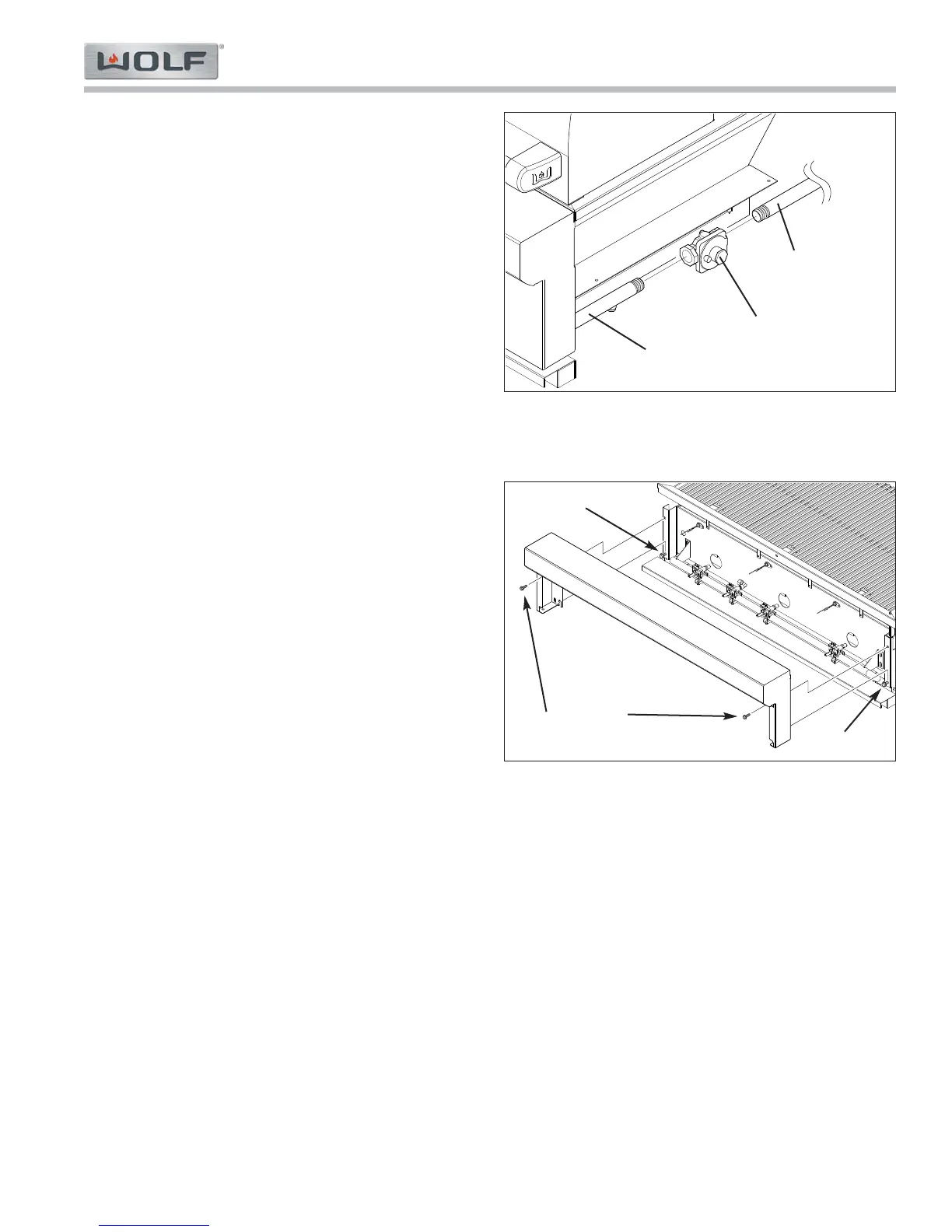

Figure 4-18. Landing Ledge Removal
Figure 4-17. Regulator Removal
Regulator
Manifold
Gas Supply
Landing Ledge (Bullnose)
Lower Bolt
Lower Bolt
Upper Bolts
To Next Page
