22 Owner Service MAN1272 (10/22/2019)
Position backhoe for easy lubrication by placing boom
and dipper at 90° to each other with bucket cutting
edge vertical and teeth resting on ground. Lower stabi-
lizers to lubricate cylinders.

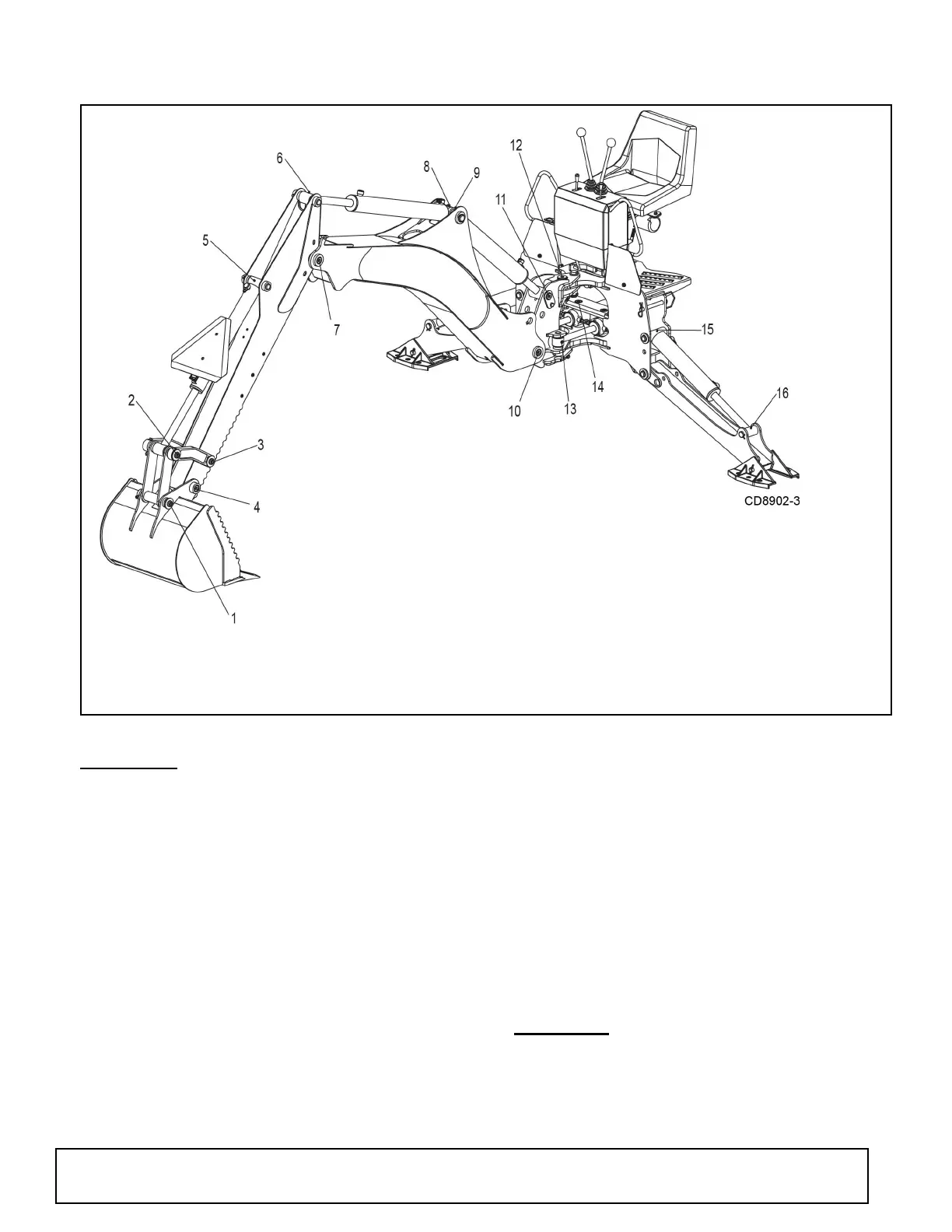

Figure 19. Lubrication Points
CLEANING
After Each Use
● Remove large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
● Inspect machine and replace worn or damaged
parts.
● Replace any safety decals that are missing or not
readable.
Periodically or Before Extended Storage
● Clean large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
● Remove the remainder using a low-pressure water
spray.
1. Be careful when spraying near scratched or torn
safety decals or near edges of decals as water
spray can peel decal off surface.
2. Be careful when spraying near chipped or
scratched paint as water spray can lift paint.
3. If a pressure washer is used, follow the advice
of the pressure washer manufacturer.
● Inspect machine and replace worn or damaged
parts.
● Sand down scratches and the edges of areas of
missing paint and coat with Woods spray paint of
matching color (purchase from your Woods
dealer).
● Replace any safety decals that are missing or not
readable (supplied free by your Woods dealer).
See Safety Decals section for location drawing.
● Temperature changes can cause backhoe to move
during storage. Store in a clean, dry place. Put
waterproof cover over backhoe if stored outside.
DISPOSAL
If the backhoe becomes worn past its usable life, dis-
pose of it according to local ordinances. DO NOT use
the backhoe and its individual components for anything
other than their intended use.
9. Boom cylinder base end (2 places)
10. Boom pivot
11. Boom cylinder rod end
12. Swing frame pivot (top & bottom)
13. Swing cylinder rod end (left & right)
14. Swing cylinder pivot
(left & right, top & bottom)
15. Stabilizer base end (left & right)
16. Stabilizer rod end (left & right)
1. Bucket link pivot
2. Bucket cylinder rod end
3. Guide link pivot
4. Bucket pivot
5. Bucket cylinder base end
6. Dipper cylinder rod end
7. Dipper pivot
8. Dipper cylinder base end
