38 Parts

MAN1280 (4/05/2019)

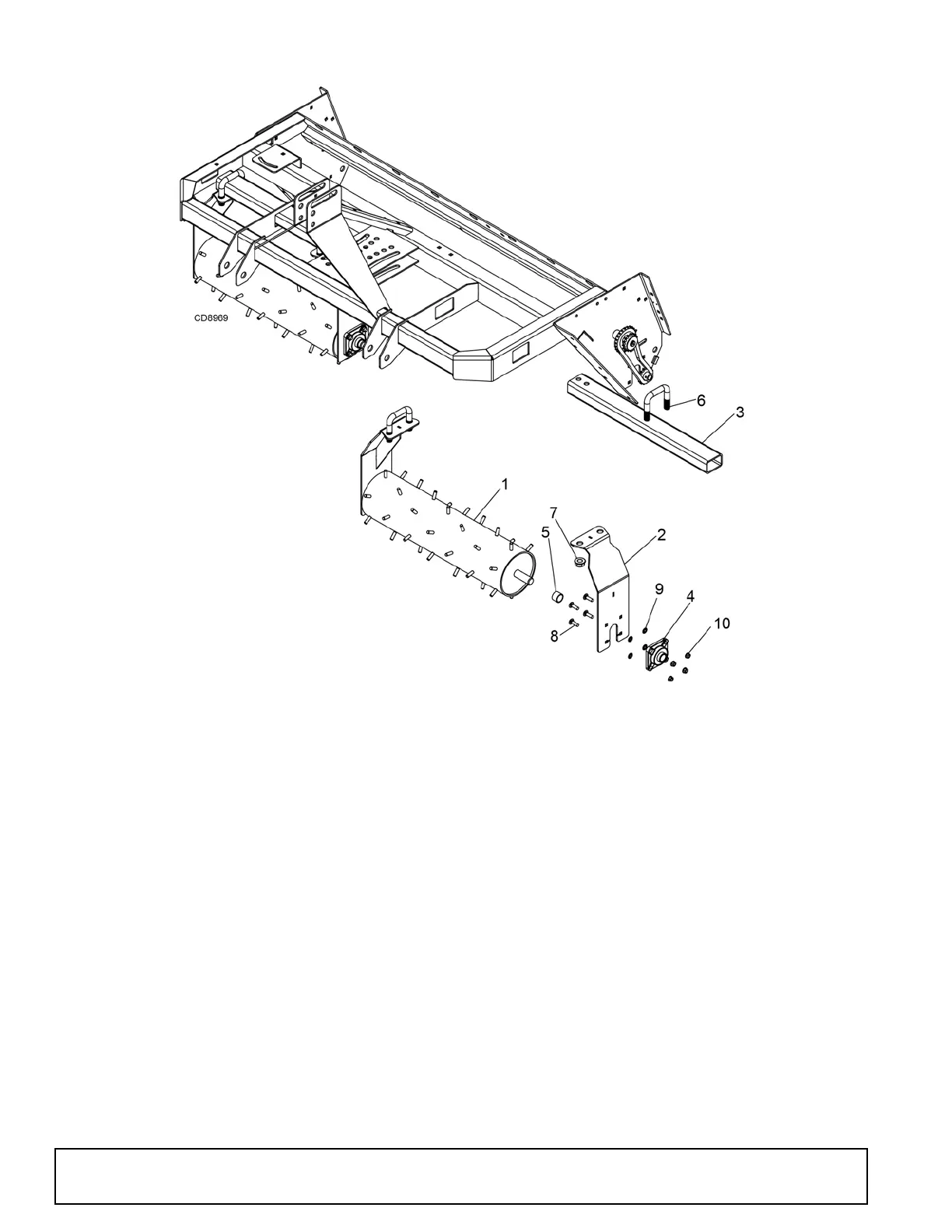

CSS48, CSS60 FRONT SPIKE ROLLER OPTION

REF PART DESCRIPTION CSS48 CSS60

1 61170660 WA, roller front CSS60 - 2

1 61170648 WA, roller front CSS48 2 -

2 609308 WA, mount spiked roller CSS 4 4

3 61163960 Tube, hang CSS60 - 2

3 61163948 Tube, hang CSS48 spiked roller 2 -

4 20A920 1" bearing w/ housing 4 4

5 1035675 Slv, 1.03 x 1.25 x 0.88 4 4

6 1040620 U-bolt 3/4 x 3.81 x 3.31 4 4

7 W302207 Nut lock 3/4 NC - flange head 8 8

8 20973 Bolt crg 3/8 NC x 1-1/2 GR5 16 16

9 1028375 Nut, 3/8 push-on bolt retainer 16 16

10 14350 Nut lock 3/8 NC flange 16 16
