Woods CSS48 User Manual

Parts 39
MAN1280 (4/05/2019)

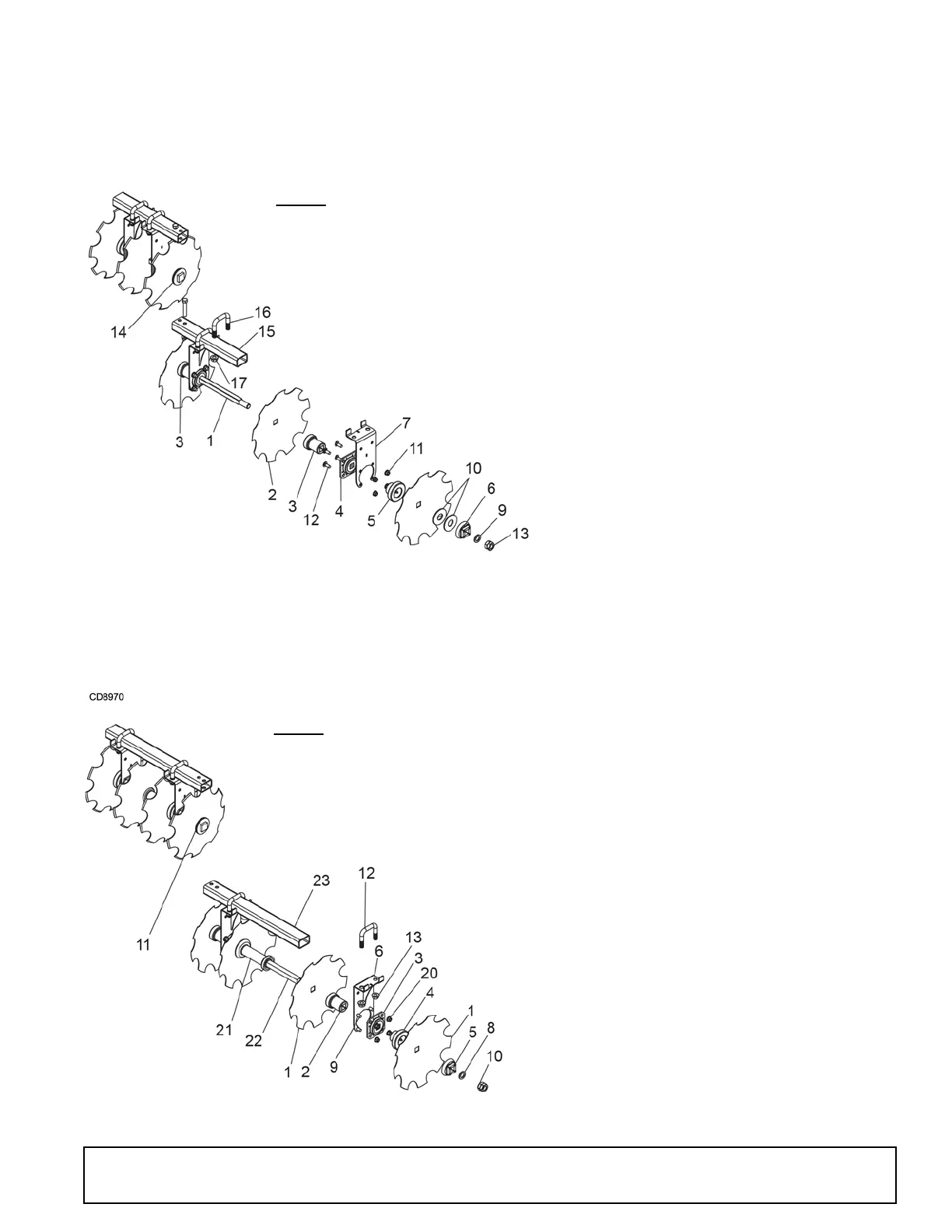

CSS48, CSS60 FRONT DISC OPTION
REF PART DESCRIPTION QTY
1 1040602 Axle shaft 1.00 sq x 19.0 2
2 1038696 Disc blade 16 in. notched 6
3 1011323 Spool spacer, 3 - 5/8" 4
4 1022500 Bearing assembly, flange, 1 sq 4
5 1011324 Spool spacer, 2 - 3/8" 4
6 1022501 End cap washer, disc 2
7 611634 WA, mount disc CSS 4
9 611655 Washer, 1.03 x 1.63 x .188 2
10 611694 Washer, 1.41 x 3.50 x .188 4
11 11900 Nut lock 1/2 NC flange 16
12 W301109 Bolt crg 1/2 NC x 1-1/4 ZP 16
13 2250 Nut hex 1 NC jam plated 4
14 611656 Washer, bumper 1.00 sq 4
15 611725 Tube, gang CSS48 disc 2
16 1040620 U-bolt 3/4 x 3.81 x 3.31 4
17 W302207 Nut lock 3/4 NC- flange head 8
REF PART DESCRIPTION QTY
1 1038696 Disc blade 16 in. notched 8
2 1011323 Spool spacer, 3 - 5/8" 4
3 1022500 Bearing assembly, flange, 1 sq 4
4 1011324 Spool spacer, 3 - 3/8" 4
5 1022501 End cap washer, disc 2
6 611634 WA, mount disc CSS 4
8 611655 Washer, 1.03 x 1.63 x .188 2
9 W301109 Bolt crg 1/2 NC x 1-1/4 ZP 16
10 2250 Nut hex 1 NC jam plated 4
11 611656 Washer, bumper 1.00 sq 4
12 1040620 U-bolt 3/4 x 3.81 x 3.31 4
13 W302207 Nut lock 3/4 NC flange head 8
20 11900 Nut lock 1/2 NC flange 16
21 1011349 Spool spacer, 7 - 3/8 2
22 1011299 Axle, disc, 1" sq x 26" 2
23 61163960 Tube, gang CSS60 2
CSS48
CSS60
(2x)
(2x)
