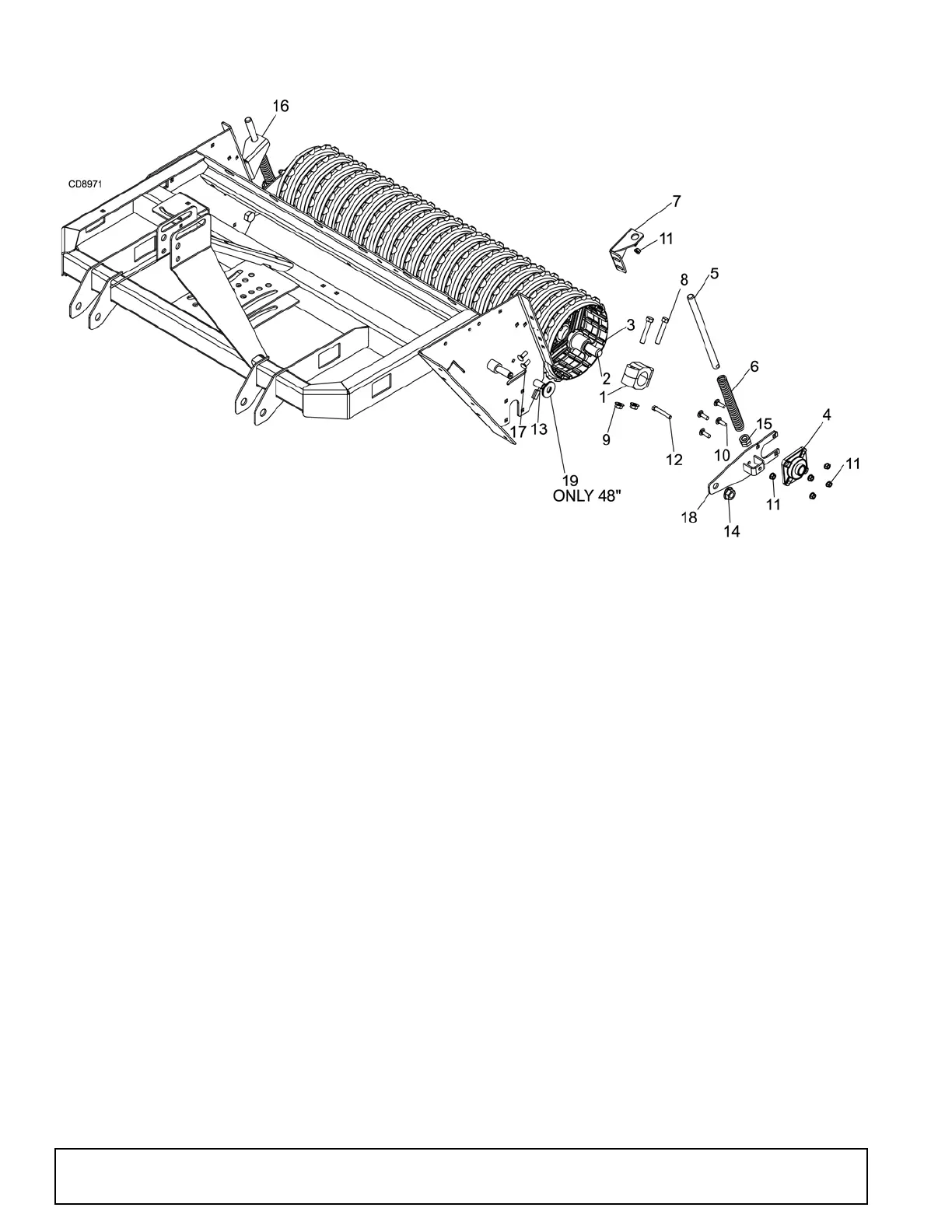

REF PART DESCRIPTION CSS48 CSS60
1 1034676 Clamp, cultipacker 1-3/4 4 4
2 61172348 WA, cultipacker shaft CSS48 1
2 61172360 WA, cultipacker shaft CSS60 1
3 1038781P Wheel 11 - 1/2 in. cultipacker 20 25
4 20A920 1" bearing w/ housing 2 2
5 20A111 Stud, spring 13" 2 2
6 20A125 Spring, comp 1.13 x .16 x 9.0 42.64 2 2
7 611573 Stop, cultipacker spring CSS LH 1 1
8 5621 HHCS 1/2 NC x 2-3/4 GR5 4 4
9 11900 Nut lock 1/2 NC flange 4 4
10 20973 Bolt crg 3/8 NC x 1-1/4 GR5 8 8
11 14350 Nut lock 3/8 NC flange 14 14
12 2290 HHCS 3/8 NC x 2-1/2 GR5 ZP 2 2
13 4616 HHCS 3/4 NC x 1-1/2 GR5 ZP 2 2
14 W302207 Nut lock 3/4 NC - flange head 2 2
15 29485 Nut jam 3/4 NC ZP 4 4
16 611672 Stop, cultipacker spring CSS RH 1 1
17 6697 Bolt crg 3/8 NC x 1 GR5 ZP 4 4
18 611742 WA, arm cultipacker CSS 2 2
19 1257 Washer 3/4 flat ZP 4 -
