Parts 47
MAN1280 (4/05/2019)

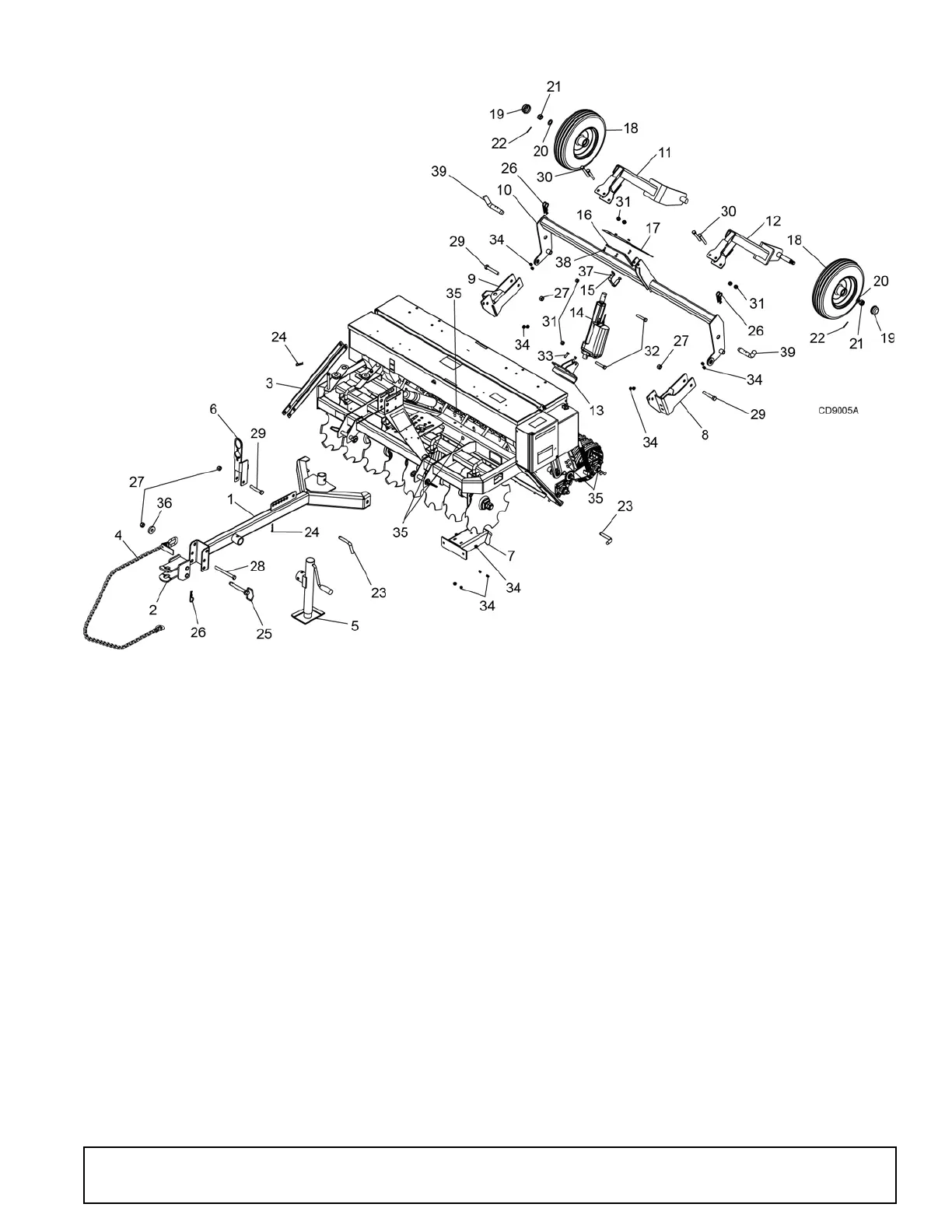

ELECTRIC TOW KIT OPTION
REF PART QTY DESCRIPTION
1 609679 1 WA, Tow Tongue CSS
2 609708 1 WA, Tow Hitch PSS
3 609686 1 Channel, adjustment
4 19407 1 Asy, safety chain, 10,000 lb
5 23790 1 Swivel parking jack
6 613733 1 Plate, hose holder electric
7 613715 1 WA, frame stiffener
8 609687 1 WA, mounting bracket left
9 609690 1 WA, mounting bracket right
10 60969560 1 WA, pivot arm electric CSS60
60969548 1 WA, pivot arm electric CSS48
11 609700 1 WA, wheel arm right
12 609699 1 WA, wheel arm left
13 609705 1 WA, actuator mount
14 75547 1 12V actuator 1500 harness cnsl
15 611701 1 Channel, formed SMV retainer CSS
16 611717 1 Link, SMV tow kit CSS
17 24611 1 Sign (SMV) slow moving vehicle
18
S400312B0
2 Splitter part, tire w/cup, seal, bearing
19
S40033200
2 Splitter part, hub cap
20
2864
2 Washer 3/4 SAE flat
21 5849 2 Nut hex 3/4 NF slotted
22 5241 2 1/8 x 1-1/4 cotter pin
23 1005338 2 Pin bent .62 x 3.0 w/clip
24 2688 2 Pin, cotter, hair, .059 WD x 1-1/8
25 1037593 1 Hitch pin 3/4 x 4-3/4
26 18270 5 3/16 safety pin
27 6239 4 Nut lock 5/8 NC
28 78193 1 HHCS 5/8 x 6-1/2 GR5 YD
29 W300457 3 HHCS 5/8 NC x 3-3/4 GR5 ZP
30 10380 4 HHCS 1/2 NC x 4 GR5 ZP
31 765 6 Nut lock 1/2 NC ZP
32 5621 2 HHCS 1/2 NC x 2-3/4 GR5
33 12169 2 HHCS 3/8 NC x 1-1/4 GR5 ZP
34 14350 14 Nut lock 3/8 NC flng
35 6697 12 Bolt crg 3/8 NC x 1 GR5 ZP
36 W8424 1 Washer 3/4 ID 2 OD 3/8 thick
37 W70065 3 Nut whiz 1/4 NC
38 2457 3 HHCS 1/4 NC x 3/4 GR5
39 611703 2 Pin, bent 1.00 x 4.04
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
REF PART QTY DESCRIPTION
(Rev. 10/10/2019)
