48 Parts
MAN1280 (4/05/2019)

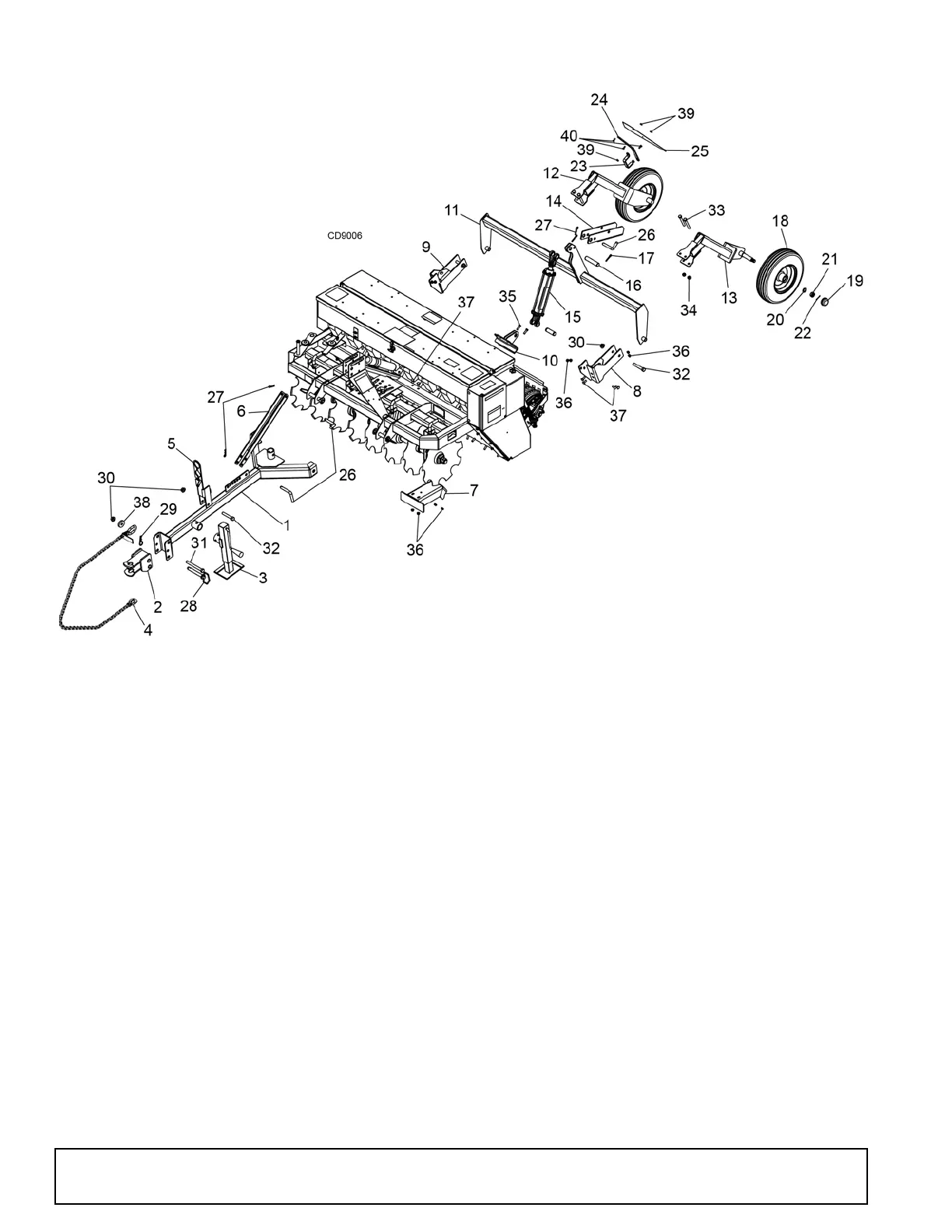

HYDRAULIC TOW KIT OPTION
REF PART QTY DESCRIPTION
1 609679 1 Tow tongue
2 609708 1 Tow hitch
3 23790 1 Swivel parking jack
4 19407 1 Safety chain, 10,000 LB
5 613730 1 Hose holder
6 609686 1 Adjustment channel
7 613715 1 Frame stiffener
8 609687 1 Mounting bracket left
9 609690 1 Mounting bracket right
10 613726 1 Hydraulic cylinder mount
11 61372248 1 Pivot arm CSS48 HYD (CSS48 only)
61372260 1 Pivot arm CSS60 HYD (CSS60 only)
12 613724 1 Wheel arm right HYD
13 613725 1 Wheel arm left HYD
14 613732 1 Cylinder lock
15 1038881 1 Cylinder 2 x 10, 1.06 rod
16 8345 1 Pin headless 1.00 x 4.08
17 1285 * 2 1/4 x 1-1/2 cotter pin
18
S400312B0
2 Wheel & tire, 16 x 4.5
19
S40033200
2 Wheel hub cap
20
2864
* 2 Washer 3/4 SAE flat
21 5849 2 Castle nut 3/4 NF
22 5241 * 2 1/8 x 1-1/4 cotter pin
23 611701 1 SMV retainer CSS
24 611717 1 SMV link tow kit CSS
25 24611 1 Sign (SMV) slow moving vehicle
26 1005338 3 Pin bent .62 x 3.0 w/ clip
27 2688 * 3 5/32 hair pin cotter
28 1037593 * 1 Hitch pin 3/4 x 4-3/4
29 18270 * 1 3/16 safety pin
30 6238 * 4 Lock nut 5/8 NC
31 78193 * 1 HHCS 5/8 NC x 6-1/2 GR5 Yd
32 W300457 * 3 HHCS 5/8 NC x 3-3/4 GR5 ZP
33 10380 * 4 HHCS 1/2 NC x 4 GR5 ZP
34 765 * 4 Nut lock 1/2 NC ZP
35 12169 * 2 HHCS 3/8 NC x 1-1/4 GR5 ZP
36 14350 * 12 Nut lock 3/8 NC flange
37 6697 * 10 Bolt carriage 3/8 NC x 1 GR5 ZP
38 W8424 1 Washer 3/4 ID 2 OD 3/8 thick ZP
39 W70065 * 3 Nut whiz 1/4 NC
40 2457 * 3 HHCS 1/4 NC x 3/4 GR5
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
REF PART QTY DESCRIPTION
(Rev. 8/20/2019)
