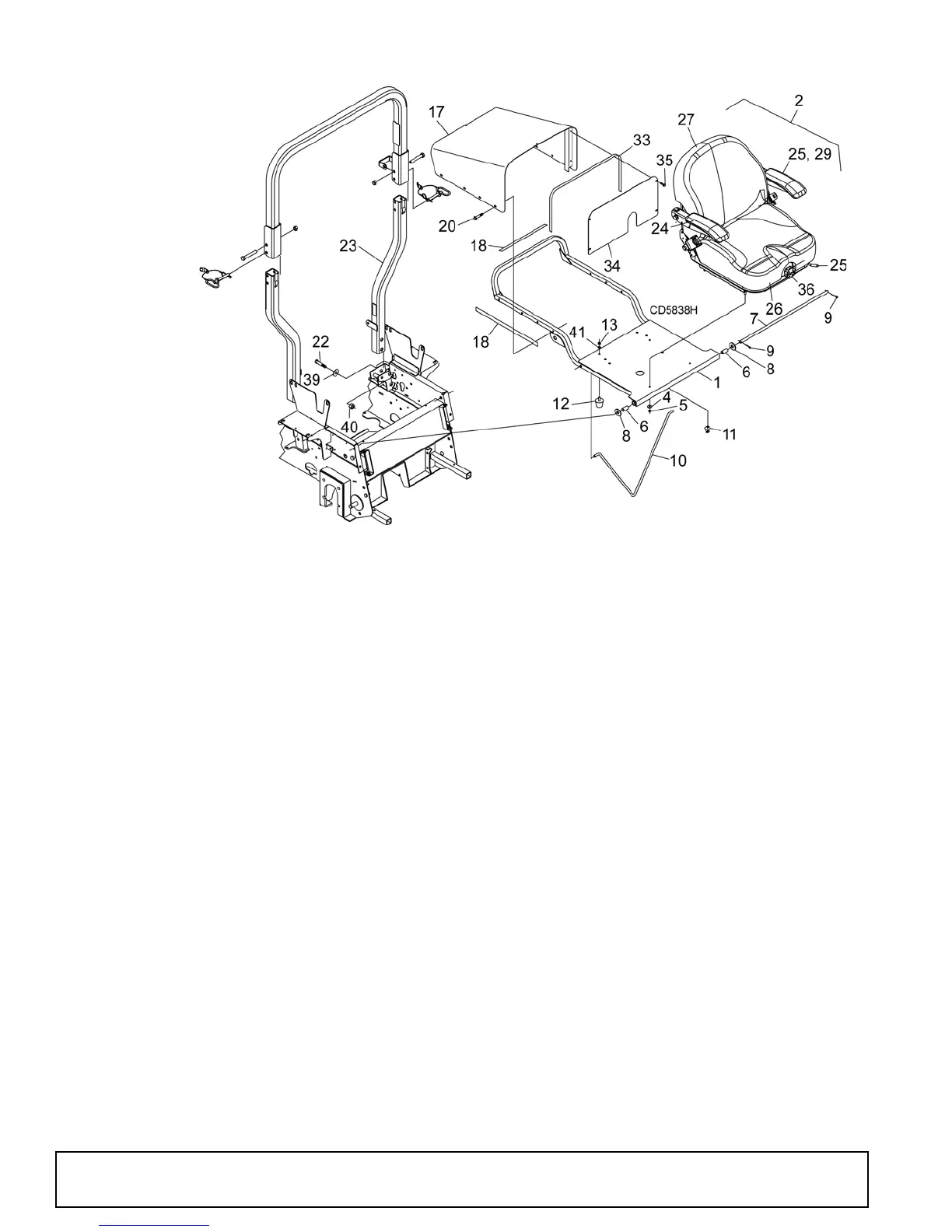

REF PART QTY DESCRIPTION
1 78369 1 Seat pan
2 78468 1 Suspension seat
4 4378 * 4 5/16 Flat washer
5 FA220 * 4 5/16 Nylok nut
6 73581 2 Pivot bushing
7 72410 1 Pivot rod
8 854 * 2 1/2 Flat washer
9 71630 * 2 1/8 x 3/4 Cotter pin
10 78098 1 Prop rod
11 07534100 1 Rod clip
12 07533000 2 Rubber bumper
13 5283 * 2 5/16 NF nut
14 24408 * 1 5/16 NC x 1-1/2 HHCS
15 21170 1 5/16 NC Hex nut
17 75429 1 Hood assembly
(includes items 18 & 19)
18 78030 2 Hood seal
19 73944 1 Foam cowl seal
20 12400 * 8 3/8 NC x 1 Self tap screw
21 78165 2 Foam seal 24"
22 21341 * 4 5/8 NC x 3-1/4 HHCS GR5
REF PART QTY DESCRIPTION
23 1032106 1 FZ ROPS Assembly
24 78494 1 Kit, arm rest RH
25 78495 1 Kit, arm rest LH
26 78500 1 Kit, cushion cover
27 78501 1 Kit, back seat cushion
28 78503 1 Kit, track
29 78496 1 Arm pad
30 75502 1 Switch
31 75503 1 Plunger
32 75504 1 Spring
33 75512 1 Trim lok 40.5"
34 75473 1 Baffle
35 ----- * 4 Screw #10 -32 self tapping x 7/16
36 78504 1 Knob, seat adjustment (Not shown)
37 75368 1 Decal, Woods (not shown)
38 75370 2 Decal, Mow’n Machine FZ (not shown)
39 51817 4 5/8 SAE Hardened flat washer
40 19025 4 5/8 NC Flange lock nut
41 2472 * 2 5/16 Lock washer
42 78327 * 2 10-24 x 1-1/2 Pan head machine screw
* Standard hardware, obtain locally
