PRODUCT DESCRIPTION
The surface/rotary planer is intended specially for planing operations on solid timber, using
high-alloyed (HL) knives. When rotary planing, the contact surface of the workpiece must be
flat. If bigger or heavier workpieces should be worked, it is necessary to clamp the machine
firmly to its supporting bench or table (e.g. as with screw clamps). The machine is not suita-
ble for operation outdoors. Any other use beyond this scope is considered as failing to com-
ply with the intended purpose. The manufacturer is not liable for any damage or injuries
caused as a result of this; the risk is borne solely by the user.
PRIOR TO USE
Unpack the appliance and check that all parts are included. If any part is missing or dam-
aged, contact your dealer immediately. Dispose all packing material according to local regu-
lations.

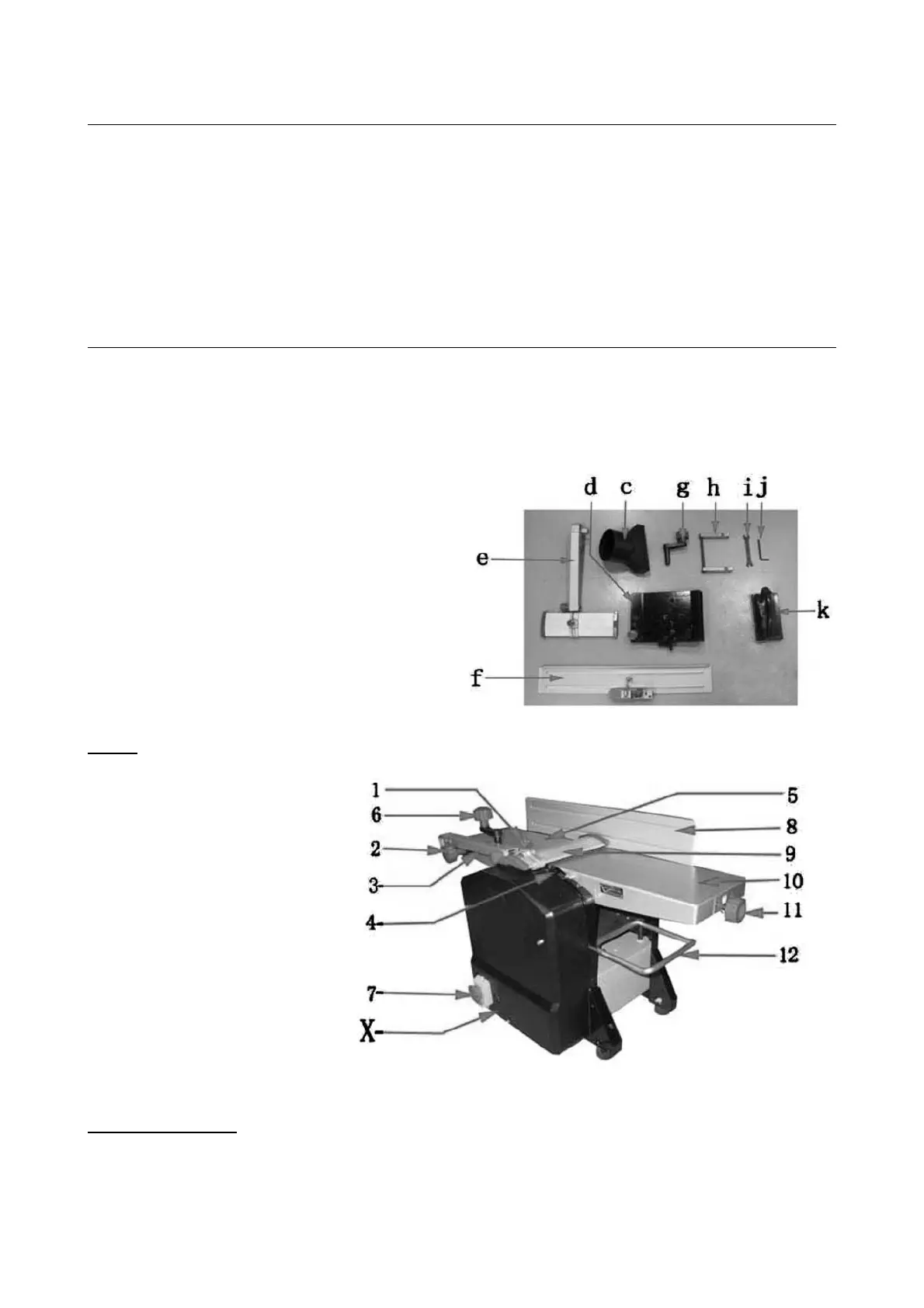

Content:
c Double-ended dust adaptor 100 mm 1 pc
d Dust extraction port 1 pc
e Knife guard 1 pc
f Guide fence unit 1 pc
g Hand crank 1 pc
h Blade set block 1 pc
i Open-ended spanner 1 pc
j Allen key 1 pc
k Push block 1 pc
Parts
1. Locking knob
2. Knob
3. Fixture for knife guard
4. Safety interlock switch
5. Fixed table
6. Hand crank
7. Main switch
8. Guide fence
9. Knife guard
10. Adjustable table
11. Knob for cutting depth
12. Extension support
X. Overload switch
Guide fence unit
- Place the guide fence (8) on the top of the right side plate. Be sure the two holes of the
guide fence are aligned with the two screw holes of the table plate.
To Next Page
