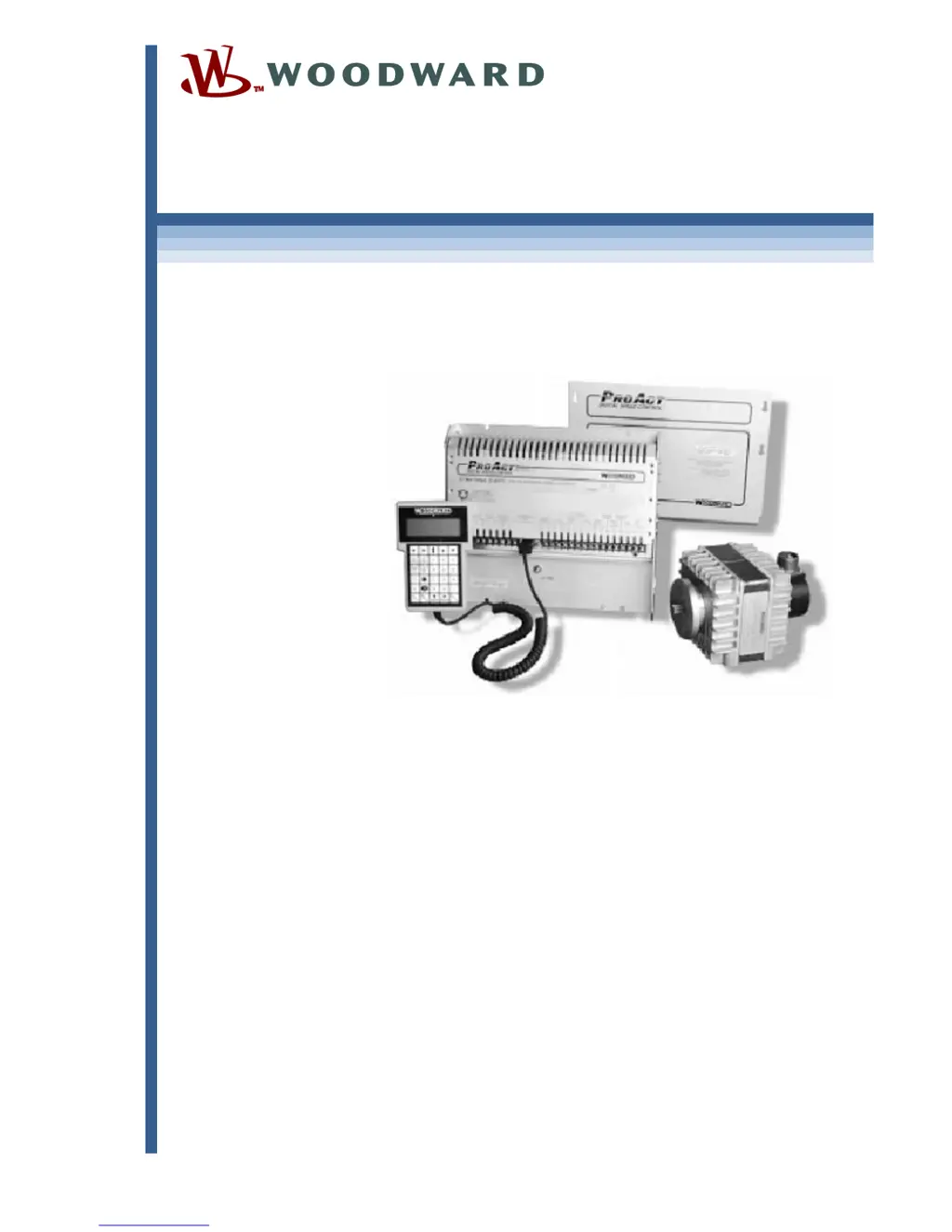

Woodward ProAct II - User Manual

Other manuals for Woodward ProAct II

Technical Supplement18 pages

Questions and Answers

S
Stacy ChoiAug 23, 2025
What to do if Woodward ProAct II prime mover will not accept full load?
- B
  brendaramosAug 23, 2025
  If the prime mover won't accept a full load, consider the following: * **Prime Mover Condition:** If droop occurs only near the full-load point, the prime mover might not be producing the required power or is being overloaded. This is indicated if the fuel control is at its maximum position. * **ProAct Control Settings:** Check the Max Fuel Limit setting and increase it if necessary. Review the Torque Limiter settings and increase them if needed. Verify the droop setting, setting it to 0 if required. Inspect the Aux Input terminals to ensure the auxiliaries are within range, with a maximum voltage of 2.5 Vdc. Also, check the linkage from the actuator to the fuel rack.
C
connie72Aug 27, 2025
Why Woodward Controller actuator drives opposite direction?
- B
  Brian ContrerasAug 27, 2025
  The actuator might be driving in the opposite direction because the actuator drive wires and position feedback are connected with reverse polarity. To solve this, check the wiring to ensure it has the correct polarity.
R
richard02Aug 30, 2025
What to do if Woodward Controller actuator drives into max stop with a command to min fuel?
- C
  Carrie WeaverAug 31, 2025
  If the actuator drives into the max stop when a command to min fuel is applied, it could be due to incorrectly connected actuator drive or position feedback signals. Check the wiring for proper polarity of the actuator drive wires. Also, verify the polarity of the actuator position feedback input wiring.
J
julie23Sep 3, 2025
How to fix Woodward Controller actuator driving into min stop with mid fuel command?
- P
  Pedro Jackson DVMSep 3, 2025
  If the actuator drives into the minimum stop when a command to mid fuel is applied, it may be due to the position command signal not being received correctly. Check the wiring for proper polarity of the position command input leads. Also, ensure that the position command input has a good connection to the input signal by inspecting the wiring.
J
jnunezSep 7, 2025
What to do if Woodward Controller actuator and control system do not respond?
- M
  michaelmercerSep 7, 2025
  If the actuator and control system are unresponsive with all voltage outputs at 0 V, the actuator and driver may not be receiving power. Check the wiring for proper polarity of the input power leads. Also, verify that the input power leads have a secure connection to the battery + or battery –.
J
julian40Nov 11, 2025
What to do if Woodward ProAct II Control Systems prime mover won't start?
- M
  Melissa Garner MDNov 11, 2025
  If the prime mover won't start and the actuator isn't moving to the start fuel position, here's what you can check: 1. **Supply Voltage:** Verify the supply voltage from terminals 24 (+) to 25 (–). If the polarity is reversed, correct it. 2. **Actuator Response:** If there's voltage at control terminals 1 (+) and 2 (–) but the actuator remains still, inspect the wiring to the actuator for any breaks or shorts. Also, check the actuator and feedback polarity. Ensure the actuator and its linkage are properly installed and functioning, paying attention to rotation direction, linkage issues, worn parts, or incorrect adjustments. 3. **Start Fuel Limit:** Increase the start fuel limit until the prime mover starts. 4. **Run/Stop Contact:** Check terminal 23. The Run/Stop contact must be close...
T
Terri StevensNov 14, 2025
Why does my Woodward ProAct II prime mover overspeed only on starts?
- P
  Pamela LawsonNov 15, 2025
  If your prime mover is overspeeding only during starts, consider these potential causes: * **Control Adjustment:** The control might be set for sluggish operation, leading to overspeed on startup. Adjust the GAIN slowly for the fastest stable response. Ensure the Stability setting isn't too low; increase it if needed. The Start Fuel Limit or Start Ramp might be set too high, or the start speed could be too low. Also, verify that the correct set of dynamics has been selected. * **Linkage/Coupling:** For diesel setups, ensure the fuel rack isn't binding and the linkage is correctly adjusted. Verify the fuel rack is responding quickly to the actuator. In carburetor setups, check for any binding in the butterfly valve. Inspect the linkage or coupling adjustment. * **ProAct control:** If...
C
Christopher WilliamsNov 18, 2025
How to stabilize Woodward ProAct II prime mover at rated no-load speed?
- C
  Cody HortonNov 18, 2025
  To stabilize a prime mover at its rated no-load speed, consider the following: * **ProAct Control Adjustments:** Adjust GAIN, Stability, and ACTUATOR COMPENSATION within Menu 1 or 2. Also, check the Gain Breakpoint for lower speeds. * **External Wiring:** Ensure that necessary external wires are properly shielded to minimize noise and interference. Verify a common ground connection between the switchgear frame, governor chassis, and prime mover. Temporarily remove the battery-charger cables from the control battery system to see if it improves operation. If so, replace the wires one at a time to identify the source of the issue. Shield or reroute external wiring away from high-current lines or components. If the problem persists, remove the control from the switchgear and temporarily ...

Summary

Description of Operation

Control Dynamics

Explains how control algorithms are designed for reciprocating engine applications.

Speed Reference and Ramps

Describes ProAct's discrete speed reference control and ramp functions.

ProAct Actuator Details

Information on the ProAct actuator's design, torque, and rotational capabilities.

Installation Guide

Power Requirements

Electrical Connections

Installation Checkout Procedure

Operation and Adjustment

ProAct Control Menu Summary

Dynamics Settings (Menu 1)

Configuration of primary dynamics settings including gain, stability, and compensation.

Speed Reference Settings (Menu 3)

Parameters for setting engine speed references, limits, and ramps.

Limiter Settings (Menu 4)

Configuration of fuel and torque limiters to control engine output.

Configuration Set Points (Menu 6)

System Troubleshooting

Troubleshooting Charts

A guide to diagnosing and resolving common problems with the ProAct system.

ProAct Control Specifications

Woodward ProAct II Specifications

General

Actuator Type	Electro-Hydraulic
Operating Voltage	24 VDC
Enclosure Rating	IP65
Control Input	4-20 mA
Operating Temperature Range	-40°C to +70°C
Communication Protocols	Modbus RTU
