Greenstar Ri Compact 6 720 646 610 (2013/12) 5
2 APPLIANCE INFORMATION
2.1 APPLIANCE

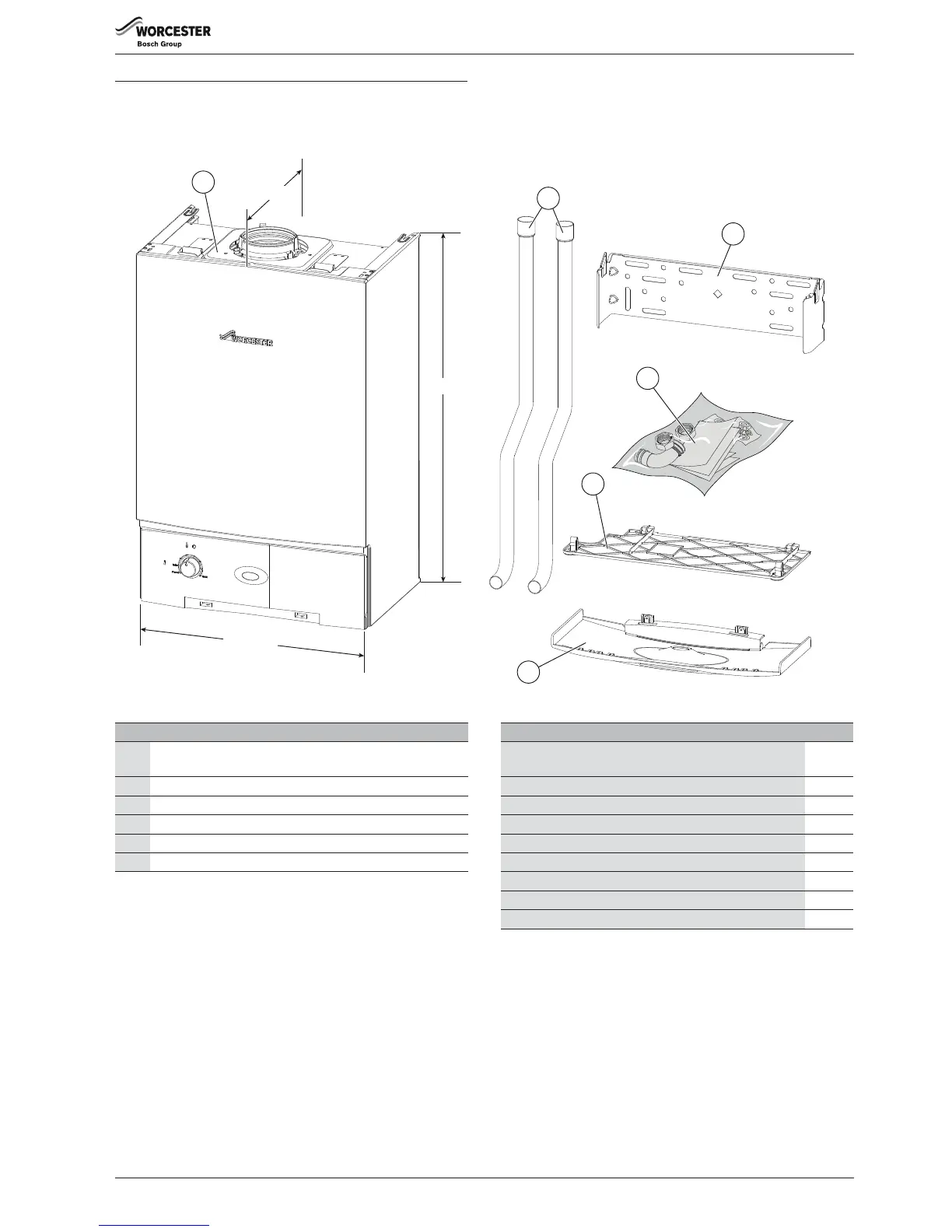

Fig. 1 Ri Compact standard package
BOILER FEATURES AND CHECKLIST
• Pre-wired and pre-plumbed
• Aluminium coated steel inner frame
• Digital control system
• Memory retention after power cut
• Automatic ignition
• Direct burner ignition electrodes
• Built-in frost protection
• Built-in fault finding diagnostics
• Fixed gas valve settings
• Combustion air fan with speed regulator
• CH temperature sensor & control
• Pump anti-seizure protection
• Flue gas temperature sensor
• Condensate siphonic trap
*600mm to top of case front
390mm
270mm
590mm*
1
2
3
5
6
6720646610-01.2Wo
4
STANDARD PACKAGE:
1 Wall hung gas fired condensing regular boiler for central
heating and domestic hot water
2 Tail pipes - water only
3 Wall plate
4 Hardware literature pack (see checklist)
5 Bottom panel
6Fascia panel
CHECK LIST - Hardware literature pack Qty.
Greenstar Ri Compact Installation, Commissioning and
Servicing Instructions
1
Users Instructions 1
Pipe condensate, elbow 1
Wall mounting template 1
Sealing Pack: 1
- Compression Nut 22mm 3
- Compression Ring 22mm 3
Screws (flap fixings) 2
Strain relief grommet 1
