11

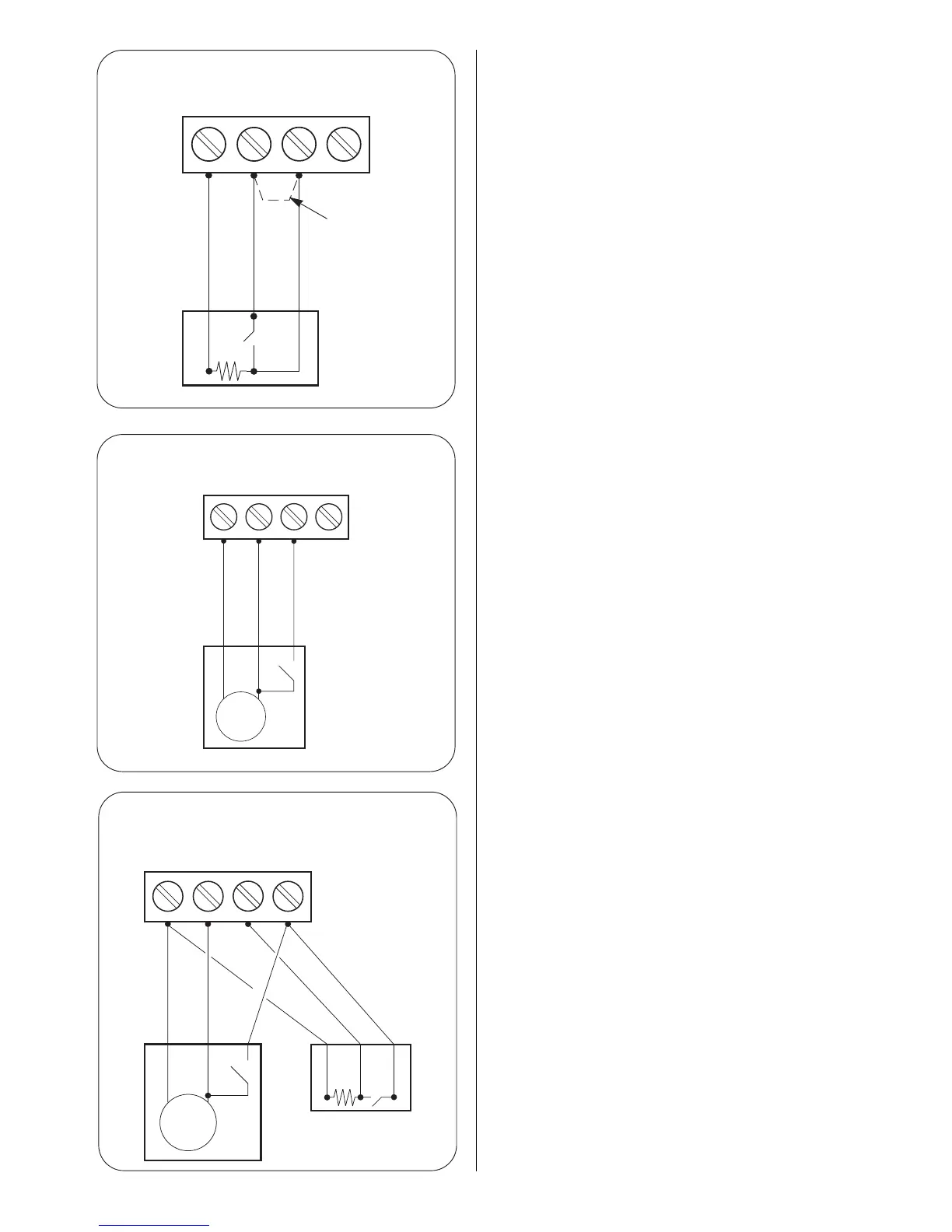

Fig. 11. 230 V room thermostat connections.
Fig. 13. 230 V room thermostat and
programmer connections.
Fig. 12. 230 V programmer connections.
NS LS
ST8
ST8
ST8
Remove link
Neutral
Live
Switched live
Neutral
Neutral
Switched live
Live
Live
Switched live
LR Spare
N
S LS LR Spare
Spare
Motor
Neutral
Live
Switched live
NS LS LR
Motor
