Worcester 350 Combi User Manual

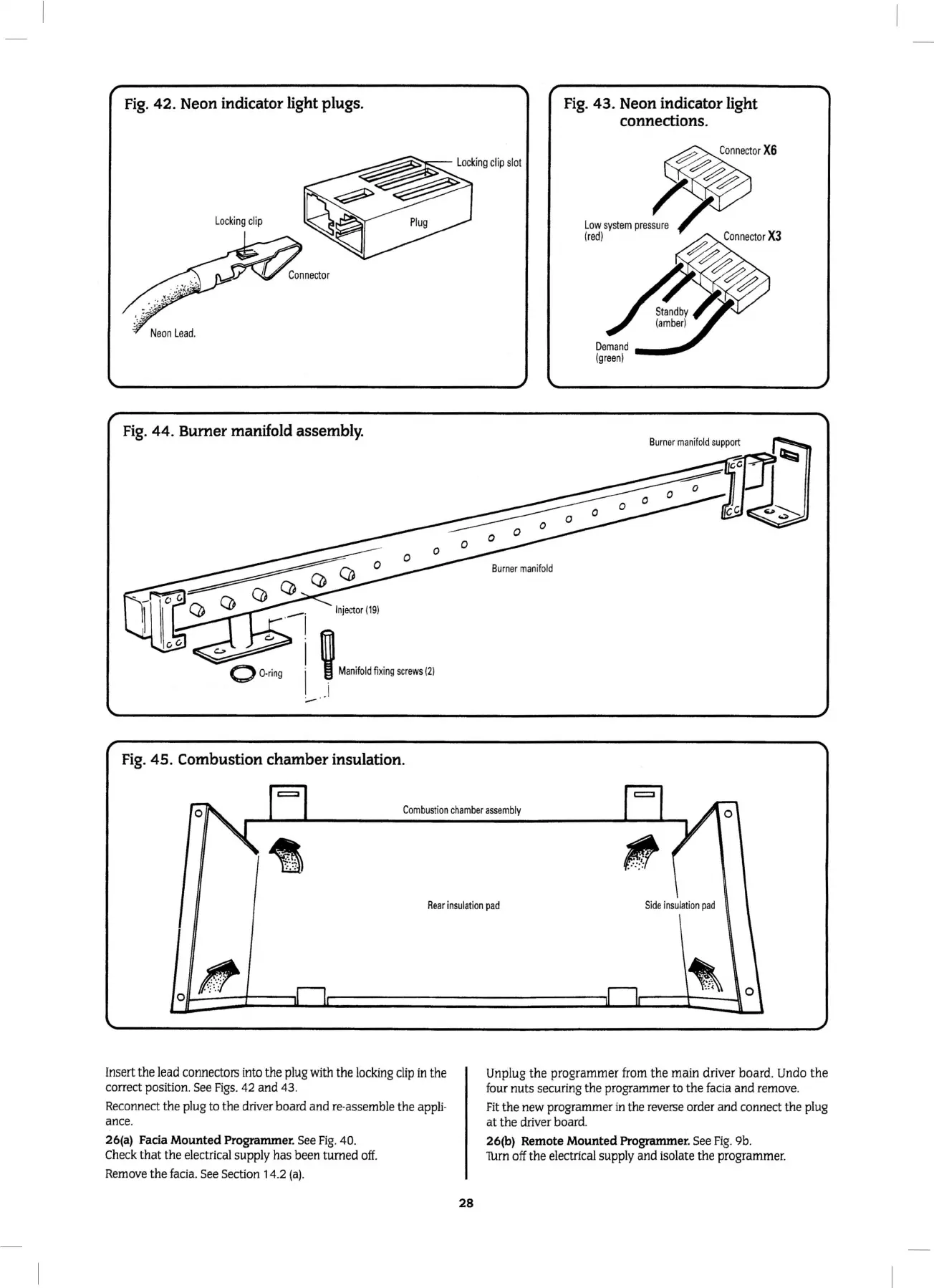

Fig . 42. Neon indicator light plugs.
Locking clip
Fig. 44. Burner manifold assembly .
. i
Fig. 45. Combustion chamber insulation.
Fig. 43. Neon indicator light
connections.
Low system pressu re
(red)
Combustion chamber assembly
Rear insulation pad S ide in sulation pad
Insert the lead connectors into the plug with the locking clip in the
correct position.
See Figs . 42 and 43 .
Reconnect the plug to the driv er board and re -assemble the appli ·
ance.
26(a) Facia Mounted Programmer. See Fig. 40.
Check that the electrical supply has been turned off.
Remove the facia. See Section 14.2 (a) .
28
Unplug the programmer f rom the main driver board. Undo the
four nuts securing the programmer to the facia and remove .
Fit the new programmer in the reverse ord er and connect the plug
at the driver board.
26{b) Remote Mounted Programmer. See Fig . 9b.
1Um off the electrical supp ly and isolate the programmer.
