GENERAL INFORMATION
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 25Si/30Si
8 716 115 165a (06/2008)
5
APPLIANCE
INFORMATION
GENERAL INFORMATION

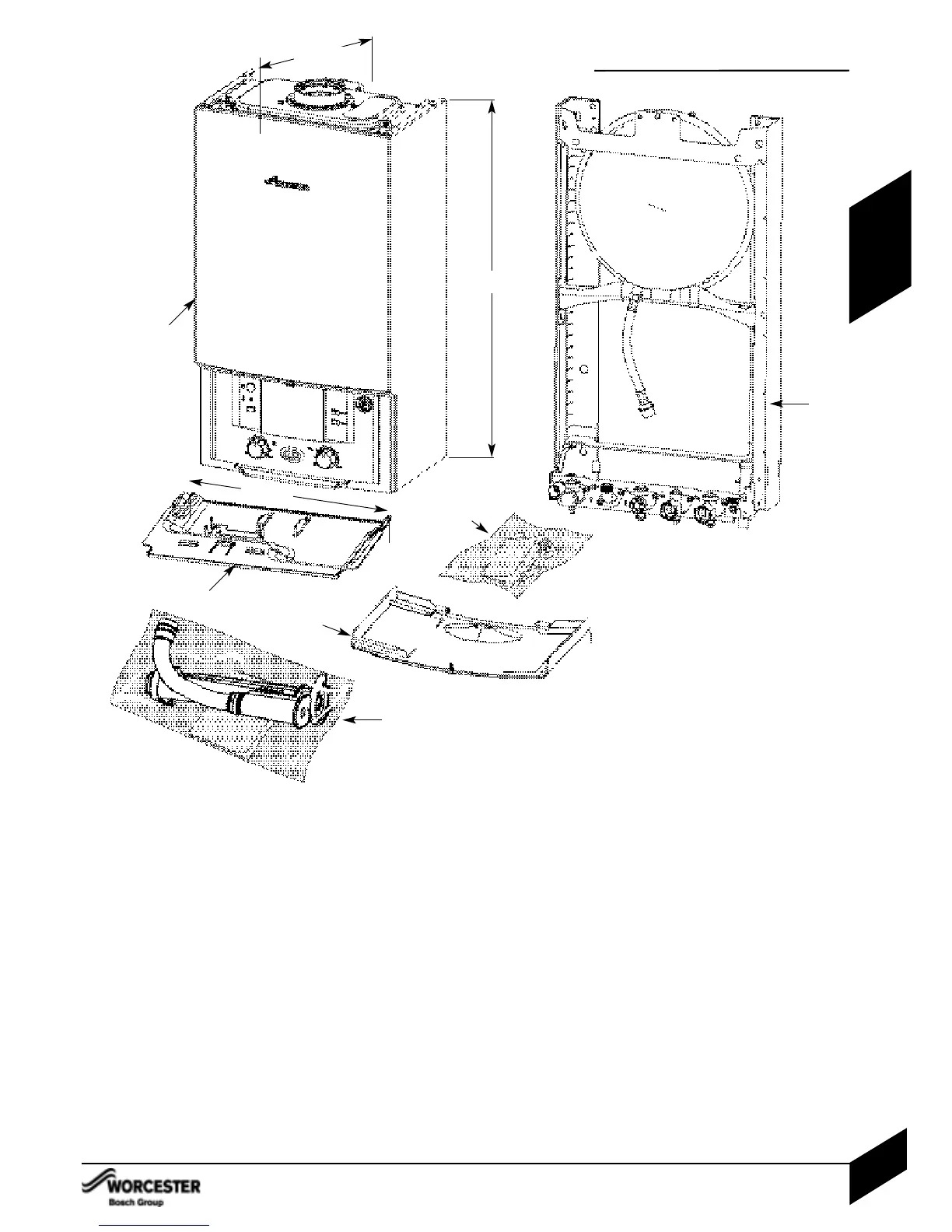

STANDARD PACKAGE:
A - Wall hung gas fired condensing combi boiler
for central heating and domestic hot water
B - Boiler support frame
C -Hardware literature pack (see checklist)
D - Bottom Panel
E - Fascia panel
F - Syphon assembly
700mm*
400mm
A
330mm
B
C
D
Depth to wall
(When fitted to wall frame)
SPECIFICATIONS:
• Pre-wired and pre-plumbed
• Galvanised steel inner frame
• Digital control system
• Automatic ignition
• Direct burner ignition electrodes
• Built-in frost thermostat
• Built-in fault finding diagnostics
• Modulating automatic gas valve
• Combustion air fan with speed regulator
• CH temperature sensor & control
• Pump anti-seizure protection
• Flue gas temperature limiter
• Condensate trap & syphon
• DHW flow sensor & temperature control
• Plate type DHW heat exchanger
Check List
Hardware/Literature pack
Item Qty.
Greenstar 25Si / 30Si Installation/Servicing Instructions.....................1
Users Instructions ..........................................................................................1
Consumer Guarantee Card .........................................................................1
Sealing Pack...................................................................................................1
Compression Nut 22mm ....................................................................... 3
Compression Ring 22mm ..................................................................... 3
Compression Nut 15mm ....................................................................... 3
Compression Ring 15mm ..................................................................... 3
Fibre Washer 18.6 x 13.5 x 1.5 ............................................................ 2
Fibre Washer 23.9 x 17.2 x 1.5............................................................. 2
Bonded Washer 3/4 ...............................................................................1
Syphon assembly........................................................................................1
Installation instructions.............................................................................1
Irish Guidelines Leaflet ..................................................................................1
Warranty Return Envelope ...........................................................................1
E
F
*710mm to top of case front

Worcester GREENSTAR 30Si Specifications

General

Model	GREENSTAR 30Si
Category	Boiler
Boiler Type	Combi
Output	30 kW
Flow Rate	12.3 l/min
Warranty	5 years
Fuel Type	Natural Gas
Mounting	Wall-mounted
Dimensions (H x W x D)	710 x 400 x 330 mm
