Worcester ZSBR 7-28 ICS1 User Manual

6 720 610 597 GB (01.07)
Details of the appliance
5
1.4 Accessories
• Standard horizontal flue kit at 100 mm outside
diameter for flues upto 4 m in length.
• Flue duct kits for horizontal (125 mm outside
diameter) for flue lengths upto 10 m (ZWBR 11-35)
or 13 m (ZWBR 7-28) and vertical flue systems for
flue lengths 12 m (ZWBR 11-35) or 15m (ZWBR 7-
28). Fitting instructions are sent with these kits.
• Heating programmer
• Security kit.

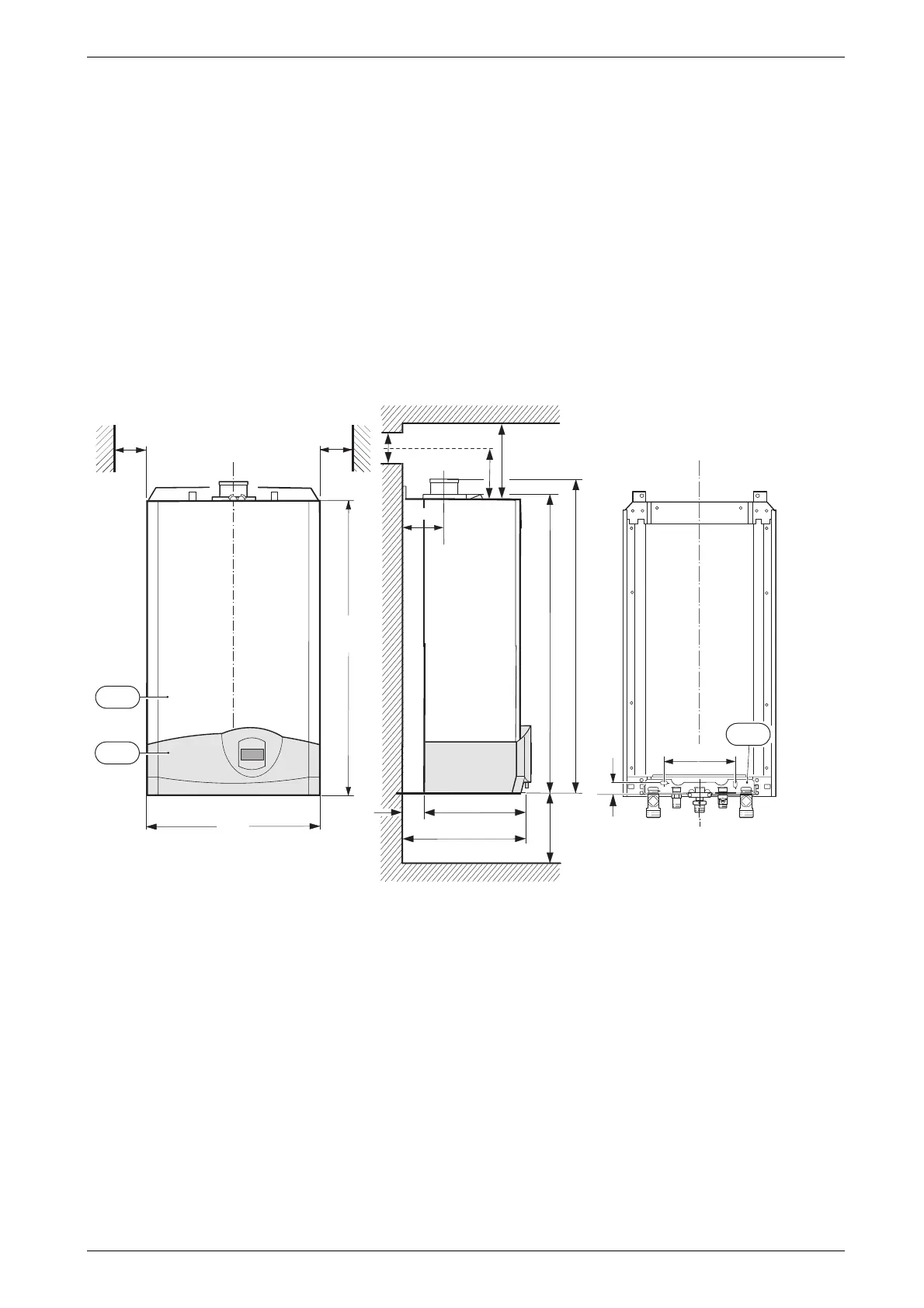

1.5 Casing dimensions
Fig. 1
13 Manifold assembly
101 Outer case
103 Facia cover
X Standard Concentric Horizontal Flue System: min. 310 mm
Alternative Concentric Flue System: min. 250 mm
Y Standard Concentric Horizontal Flue System: 158 mm
Alternative Concentric Flue System: 121 mm
Z Standard Concentric Horizontal Flue System: 105 mm
Alternative Concentric Flue System: 130 mm
min.
100
min.
100
512
850
101
103
6 720 610 602 - 01.1O
200
30
13
395
250
360
861
906
35
X
120
Y
Z
