Work Pro LM3R - Technical Data; Front Panel

1. Contents
● 1 LightMouse LM-3R.
● 1 Power Supply DC 5V 500 mA.
●
1 User manual
2. Technical Data
● DMX receiver via Ethernet Plug & Play.
● Compatible with LightMouse LM-3E.
● Art-Net 2 Node.
●
●
Customizable interface.
●
Dimensions (Width x Height x Depth): 86 x 42 x 68 mm.
Power supply: 5V 500 mA

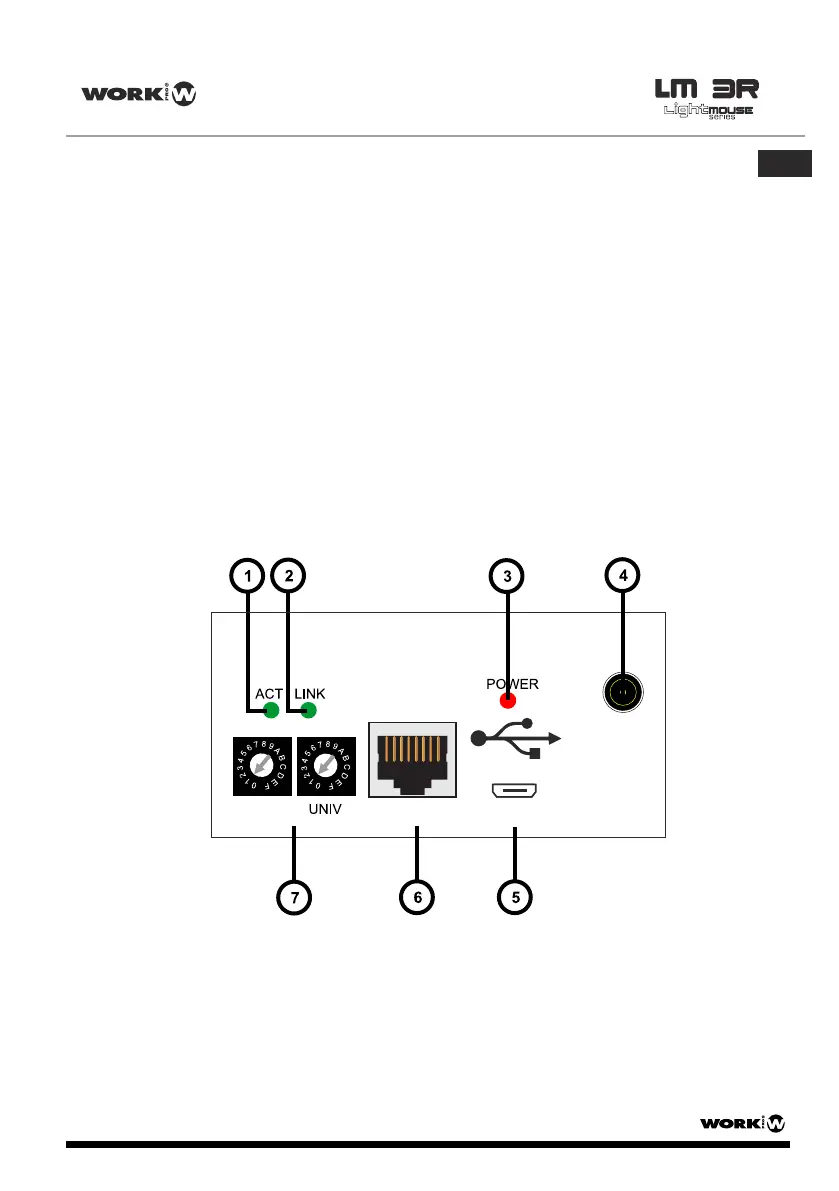

3. Front panel
3. Power LED: This LED lights when the unit is powered.
4. Plug In power connector: the device can be powered with the provided power supply by
using this connector. If this is used, then the Micro USB connector (5) MUST NOT
be used.
1. Activity LED: This LED blinks when any activity is detected in the Ethernet network.
2. Link LED: This LED is turned on when an Etherne
t network is detected (Ethernet connector
is plugged).
User Manual/Manual de Uso
LM 3R - 2 -
Sub-Net
ARTNET/LAN
USB 5VDC
EN
