24v Lithium-ion Cordless Drill with Hammer Action
MODEL: №. 51887 • 06/2016 • 51887
15
The small LED indicator on the plug
pack charger (8) will also illuminate
as a indication the plug pack charger
(8) is on and operating.

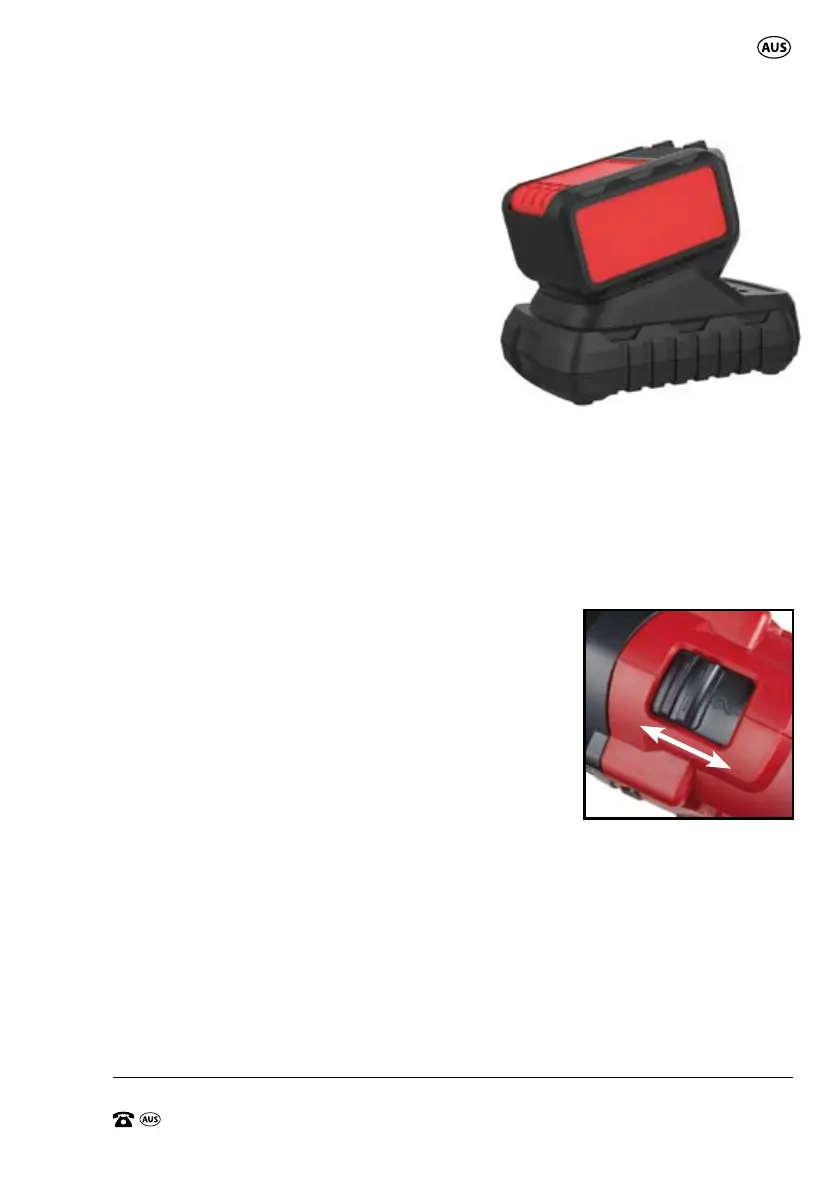

3. Align the battery pack with the charger
base (11). Insert the battery pack and
slide it firmly into position (Fig C).
The LED charging light on the charger
will light up RED during the charging
process. When the battery is fully
charged, the RED light will go off.
The battery will be ready for use after
approximately 1 hour.
The Green light will remain on until the
charger plug pack is turned off
or disconnected.
2 Speed gearbox
The 2 Speed Gearbox allows you to select a
gear with the optimum speed and torque
to suit the application.
NOTE: When changing the drill/driver
selector ensure the drill/driver is not
operating.
To select the LOW gear (low speed, high
torque setting), push the gear selector (3)
backward, towards the back of the drill/
driver. The number “1” will be displayed
(Fig D).
To select the HIGH gear (high speed, low
torque setting), push the gear selector (3)
forward, towards the chuck.
The number “2” will be displayed. (Fig D)
Speeds
C.
2
The picture here shows
the gear selector forward
so the drill/driver is in
High speed, with the
number 2 displayed.
D.
