Worx WX390 Safety And Operating Manual

10
WX390 WX390.X

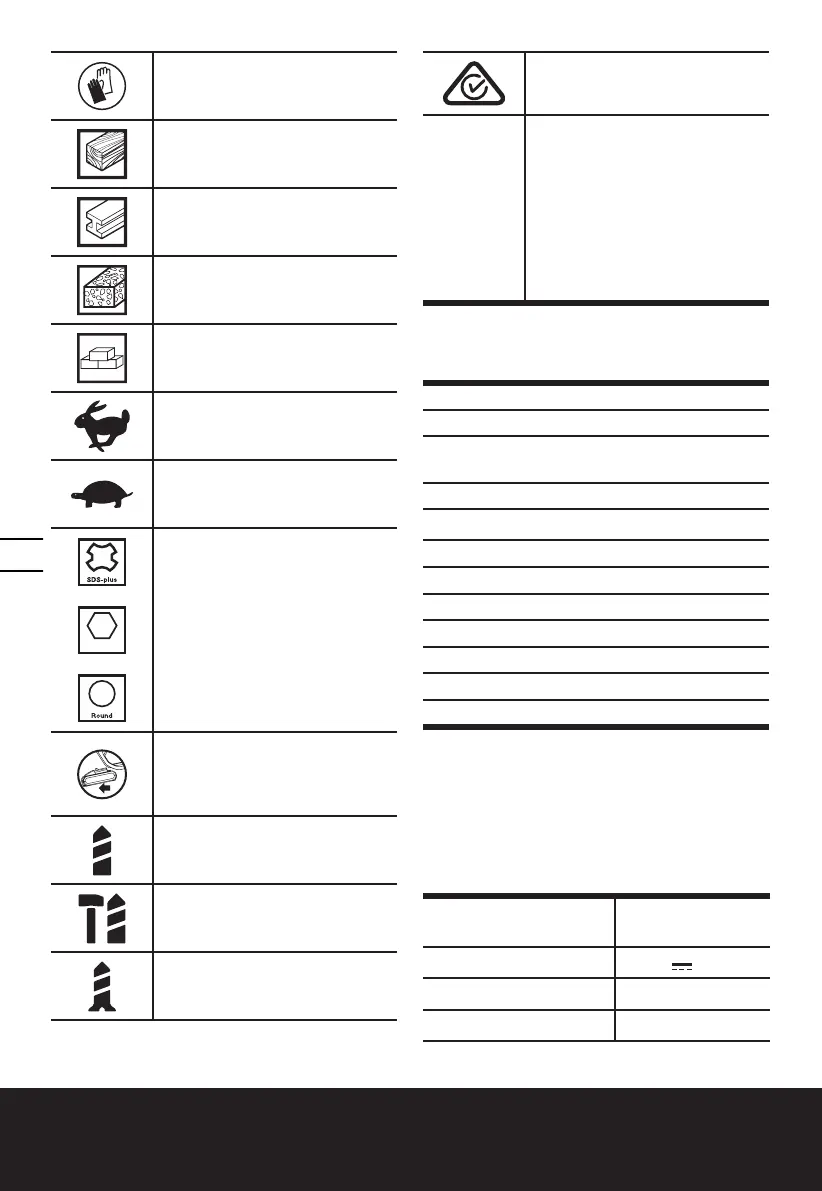

Cordless Rotary Hammer
Wear protective gloves
Wood
Steel
Concrete
Brickwork
High speed
Low speed
Tool holder
Hex
Make sure the battery is
removed prior to changing ac-
cessories.
Drilling without impact
Hammer Drilling
Screwdriving
RCM marking
ABN: Australian Business
Number. By this number,
business information such as
entity type, status, business
location etc. can be found at
website http://abr.business.
gov.au.
ABN of Positec Australia Pty
Limited is 14 101 682 357
COMPONENT LIST
1. DUST PROTECTION CAP
2. TOOL HOLDER LOCKING SLEEVE
3.
FORWARD AND REVERSE ROTATION
CONTROL
4. ONOFF SWITCH
5. BATTERY PACK
6. HAMMER DRILL DRILL SELECTOR DIAL
7. BATTERY PACK RELEASE CLIP
8. LED LIGHT
9. SDS KEYLESS CHUCK ADAPTOR
10. PH2 SCREWDRIVER BIT
11. HSS METAL DRILL BIT 5mm,6mm)*
12. SDS PLUS DRILL BITS 6mm,8mm)*
* Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
Type WX390 WX390.X(3- designation of
machinery, representative of Hammer Drill)
WX390
WX390.X **
Voltage 20V Max***
No load speed 0-900/min
Impact rate 0-5000bpm

Worx WX390 Specifications

General

Drilling	Yes
Chuck type	SDS Plus
Motor type	Brushed motor
Product color	Black, Orange
Power source	Battery
Impact rate	5000 bpm
Rated speed (max)	900 RPM
Rated speed (min)	0 RPM
Impact energy (max)	1.2 J
Drilling diameter in steel (max)	10 mm
Drilling diameter in concrete (max)	13 mm

Weight and Dimensions

Depth	68 mm
Width	259 mm
Height	184 mm
Weight	1250 g
