Woson DRINK10 - Chapter 4 Product Description and Specification; Front View; Lateral View

DRINK10 Distiller Operation Manual
REV-A Page 8 of 26
Chapter 4 Product Description and
Specification

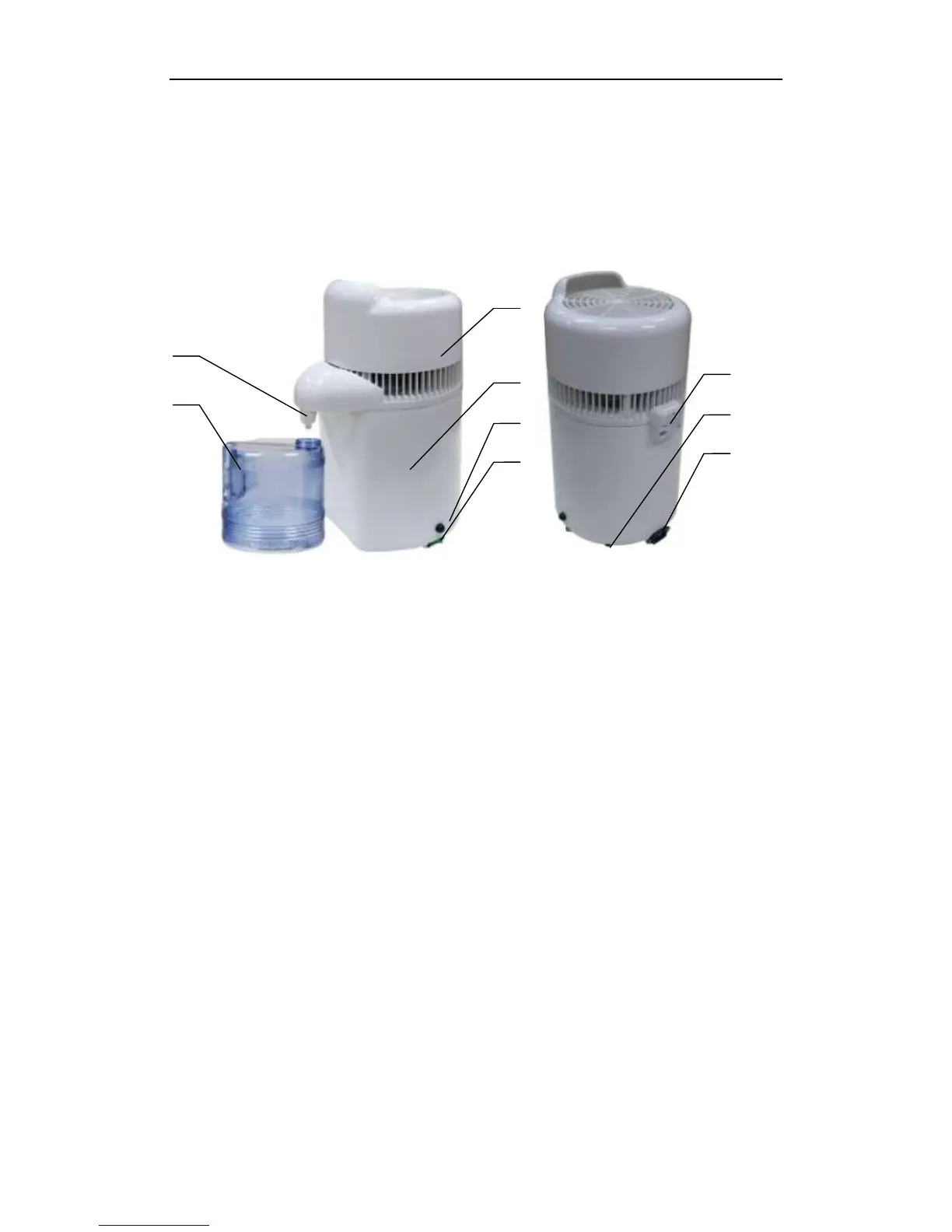

4.1 Front View
4.2 Lateral View
Name
Description
7
Power Outlet
Connect the power
8
Fuse Holder
The place of installing fuse
9
Connecting Joint
Connection with the lower body upper body joint
Name
Description
1
Filter Tip
Collecting and filtering distilled water
2
Cover
The upper part of distiller, including Condensation cooling
system
3
Body
The main part of distiller, including chamber and heating
system
4
Temperature Protection
Switch
Temperature protection of the reset switch
5
Power Switch
In charge of power，indicator light in power switch on
means the distiller is working。
6
Collecting Bucket
The vessel of collecting distilled water
2
5
4
6
1
3
7
8
9
