WALL UNIT
Inframed kitchen Wall Unit Guide
For Internal Use: WKIN00289_
Inframed_Kitchen_Guide_Rev3
Page 21

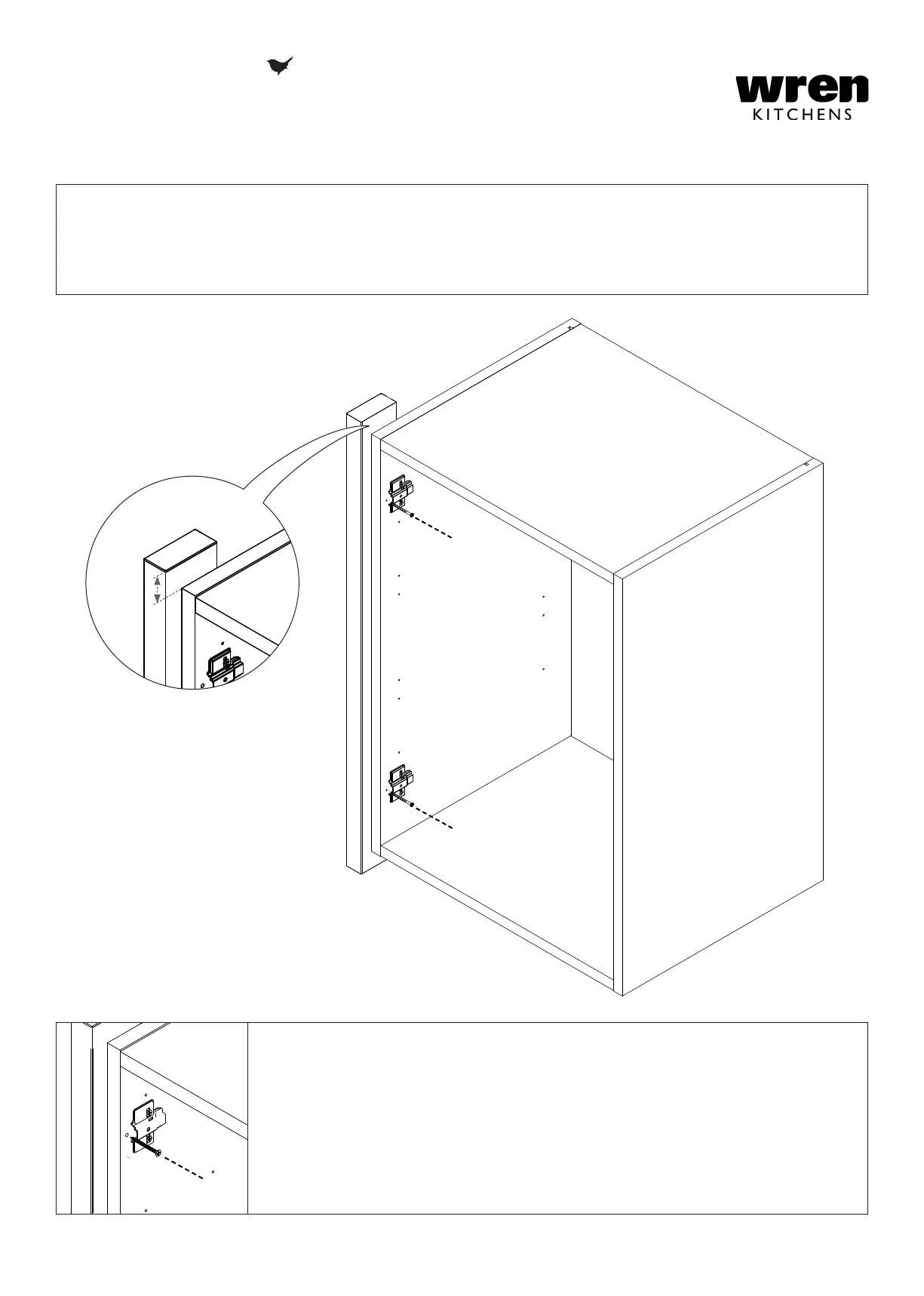

Step 1.
Position the rail door thickness + 2 mm forward from the front of the unit.
The rail is 60mm larger than the height of the unit.
Step 2.
Using 2 x 40mm screws, attach 70 x 30mm rail to the end of the unit.
Cover screw heads with cover caps.
See Customer Specic Kitchen Plan for rail positioning.
30mm
To Next Page
