6.3 Belt Tension Adjustment
The pump drive belt is self-adjusting, and requires no adjustment, just replacement. The blade drive belt is
self-adjusting also and requires no adjustment, just replacement.
6.3.1 Replacing the Drive Belt
 Stop the engine, remove the key and wait for all moving parts to stop.
 Remove the deck covers and remove the engine to blade belt. (Refer to
replacing the cutter deck belt section)
 Remove retaining knob (A), and remove the access panel (B).
 Remove the belt by using a ½” ratchet and extension to relieve the belt tension.

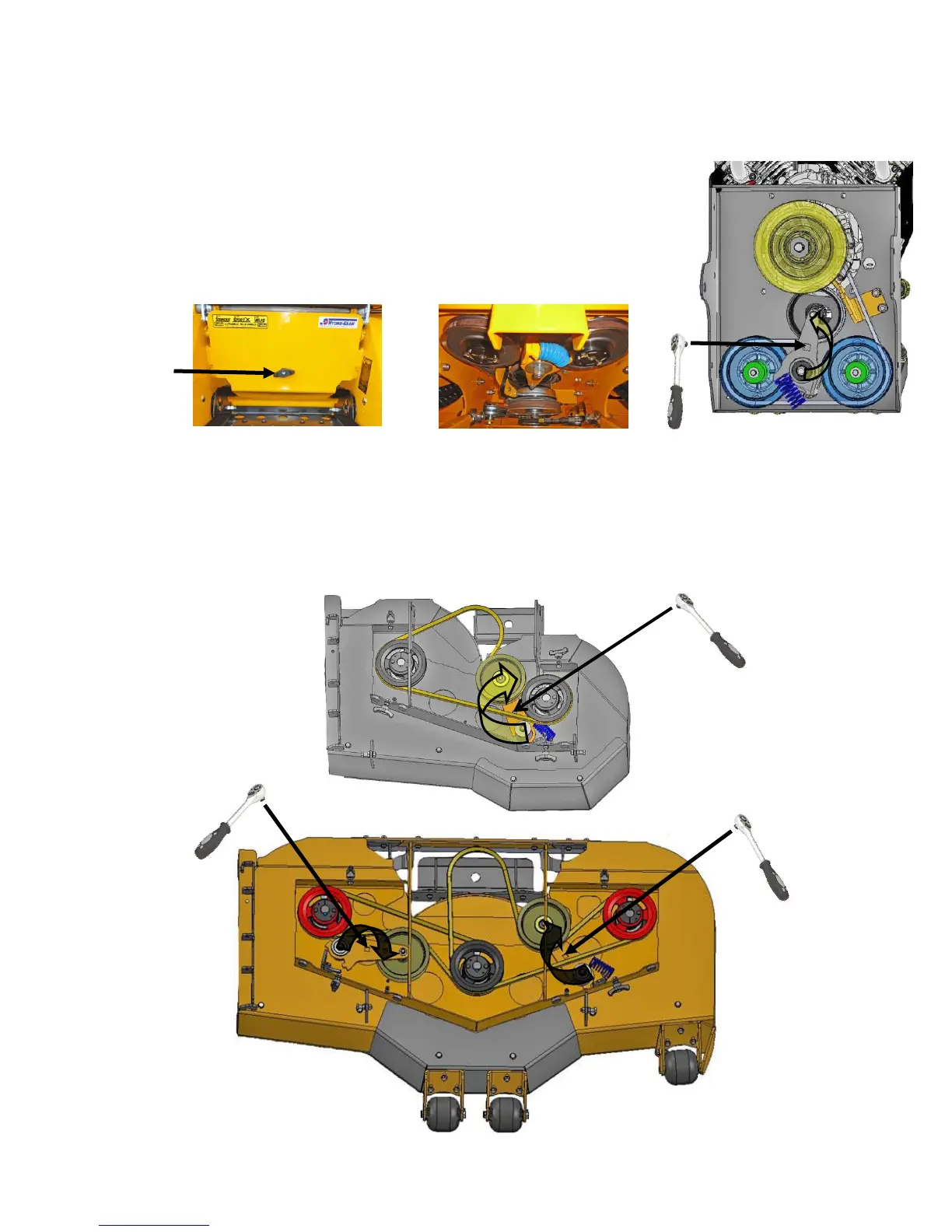

 Reinstall in reverse order. Figure shows belt routing and spring compression
direction.
6.3.2 Replacing the Cutter Deck Belt(s)
 Stop the engine, remove the key and wait for all moving parts to stop.
 Lower deck to the lowest setting.
 Remove the deck cover(s).
 Remove the belt by using a ½” ratchet and extension to relieve the belt tension.
 Reinstall in reverse order. Figure shows belt routing and spring compression direction.
36” Cutter deck
48 & 52” Cutter deck
A
B
