Revision 1.0 - 12/08/2013 13

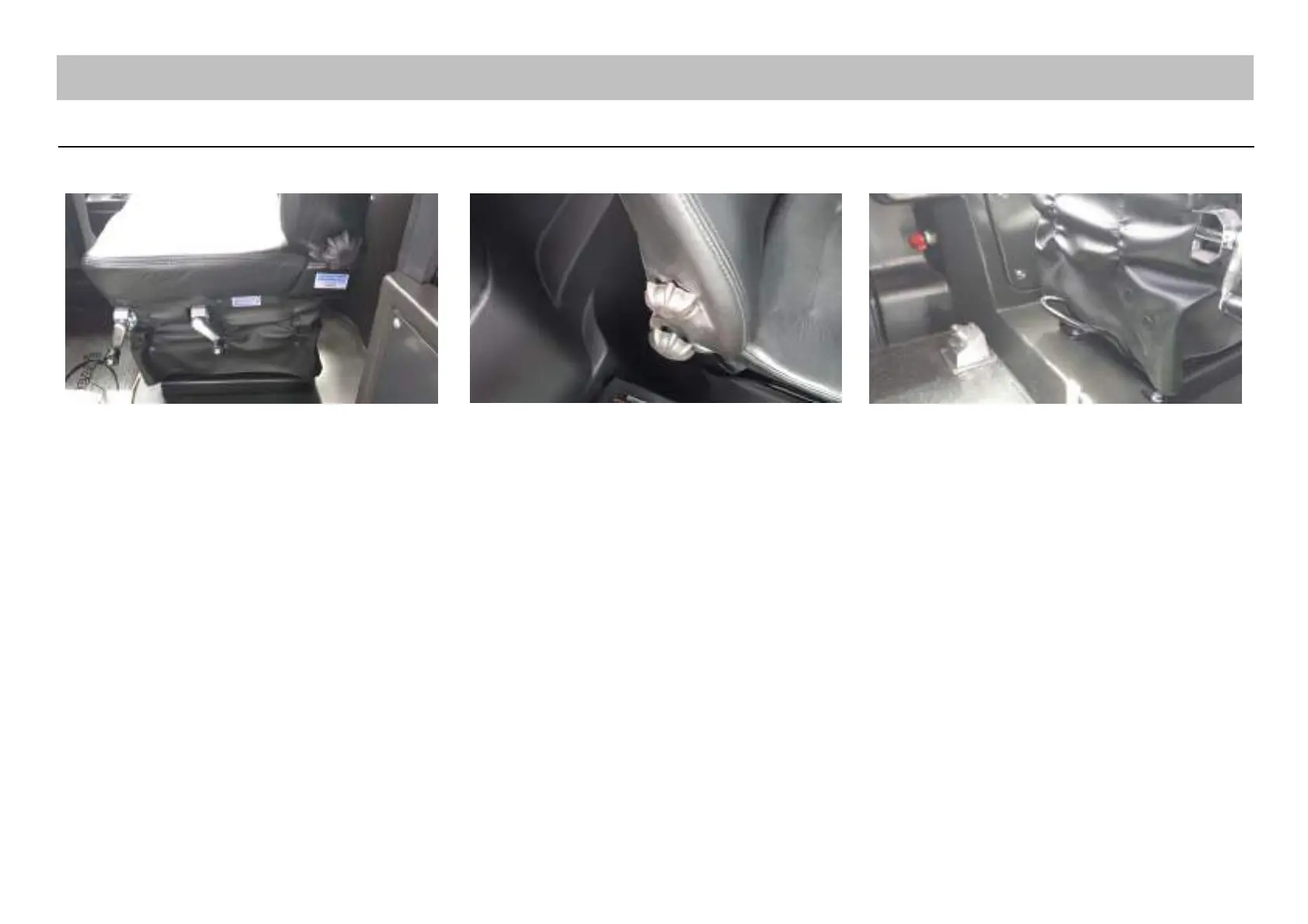

Drivers Seat Adjustment
There are 2 levers on the left hand side of the seat base. These are for adjusting the height of the front and rear of the
seat. The wire loop at the front of the seat is pulled up to adjust the fore and aft position of the seat. There are also 3
knurled knobs at the base of the seat back, 1 on the left side and 2 on the right side. The lower one on each side is for
adjusting the rake of the seat back. The upper one on the right side is for adjusting the lumbar support.
