Maintenance Checks
Cooling Systems

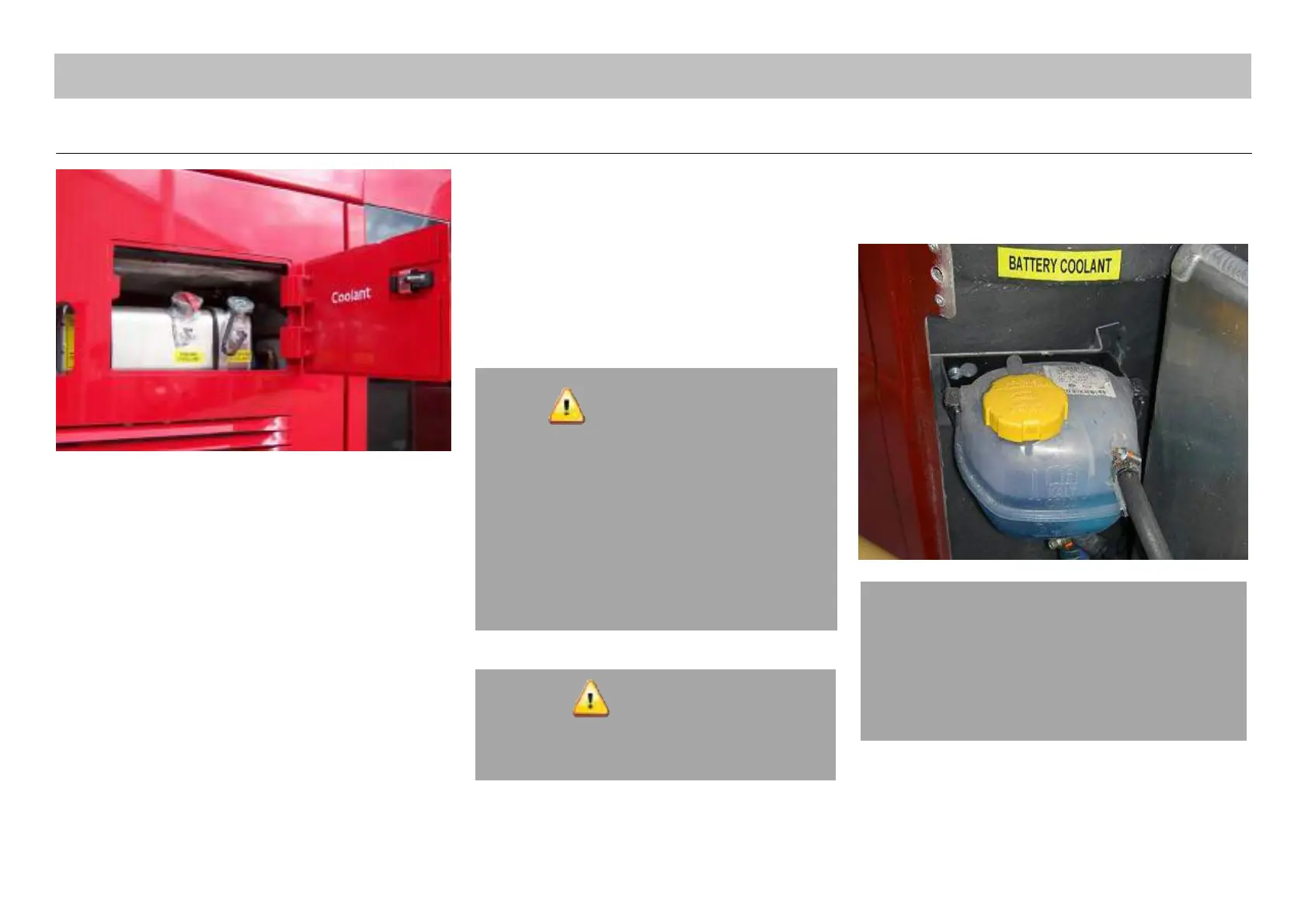

The expansion tank fillers are located on
the O/S rear corner of the vehicle, behind
a hinged access door.
The coolant level should be checked when
the engine is cold. If the engine has been
running, it must be allowed to stand for at
least 15 minutes before checking the level.
ENSURE CORRECT COOLANT IS USED AND
DO NOT MIX WITH OTHER TYPES.
Allow the system to cool sufficiently
before removing the
coolant tank filler
cap, to avoid personal
injury from the
hot coolant.
Always use the recommended coolant.
Warning
See Environmental Warnings
Warning
Coolant level.
Engine coolant has sight glass on header
tank. Hybrid circuit is a
manual dip or visual
check to the filler neck.
Battery
cooling
circuit has an expansion
tank under
the stairs and has a moulded level line.
Battery coolant circuit has an expansion tank
under the stairs and has a moulded level line.
Do not mix coolants between circuits,
see fluids and lubricants for correct
spec.
Caution
