2.2 Caution Warnings
If any of the following symbols (as shown in Table 2) appear, you should proceed with caution and rectify the fault at the earliest opportunity.

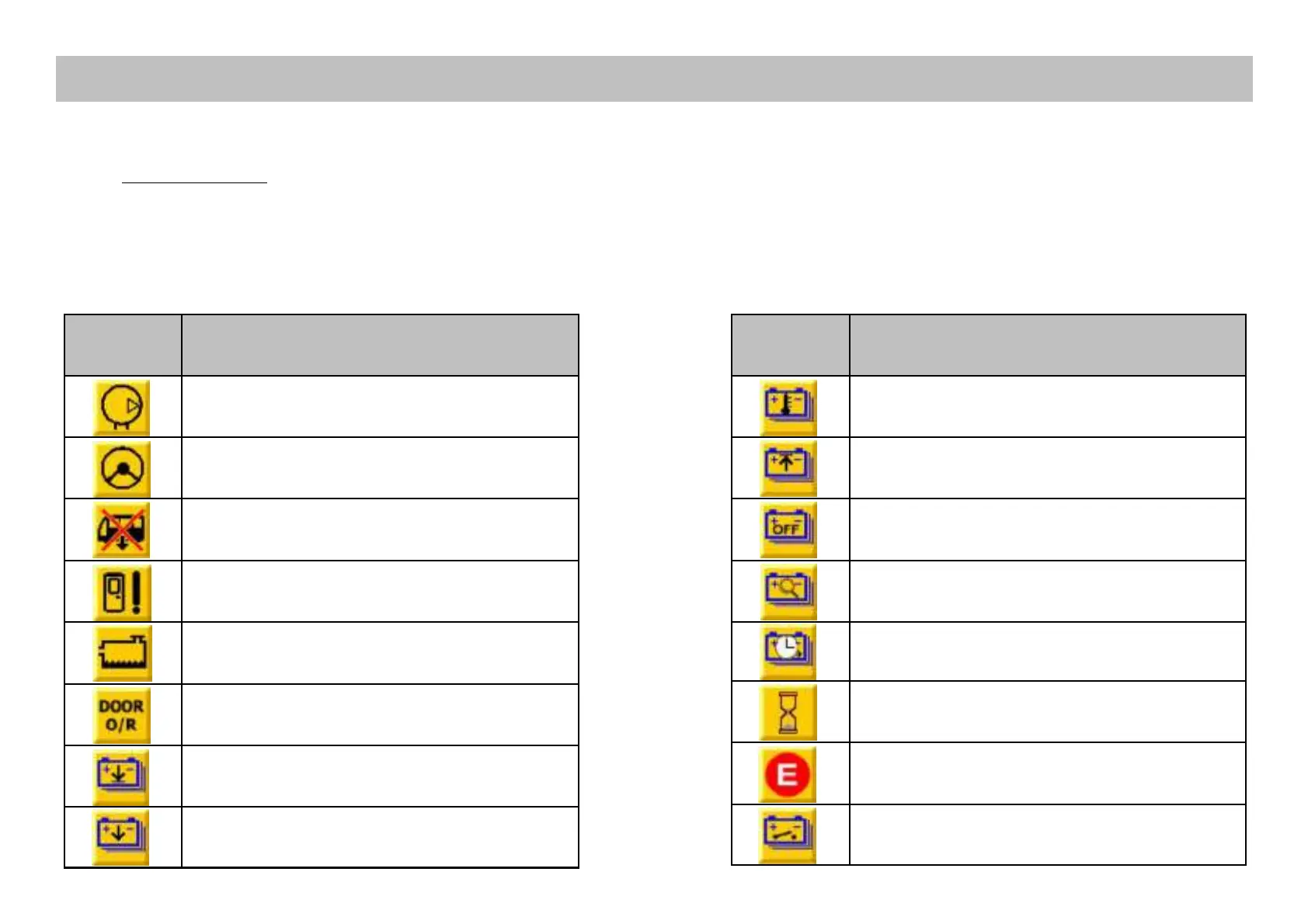

ICM Warning Indicators - Caution Warnings
Icon Description
Compressor fault warning
Power steering fault warning
Kneeling inhibit warning
Crew mode warning
Coolant level low warning
Door override warning
HV battery critically discharged
HV battery low capacity
Icon Description
HV over-temp warning
HV over-voltage warning
HV battery off (DE mode) warning
HV battery module lost warning
HV battery BMU timeout warning
Time approaching shutdown warning
E-Stop warning
HV battery contactor fault
