Battery Door Panel

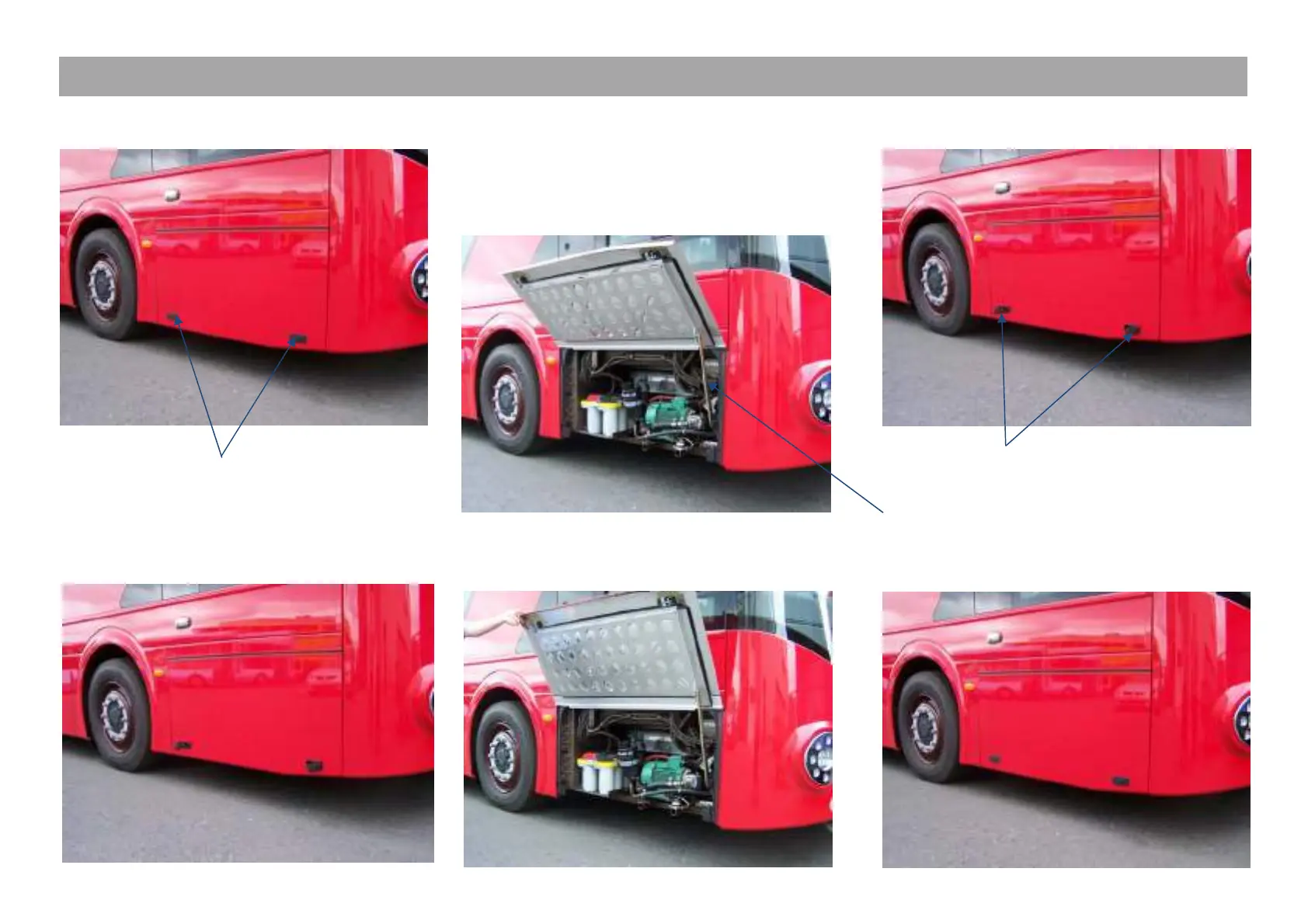

To open the above battery access panel,
push the button on each catch, this will
release the catch as shown below.
Lift the battery panel from both sides to its
highest point then lower it to its lock position,
see below.
To close the battery panel, lift to its highest
point then lower to close position.
Push the catches into their lock position as
shown below.
The strut should be lightly lubricated every
28 days to ensure smooth operation and
long service life.
