1.0 PURPOSE
To ensure the correct fitment of front and
rear wheels.
2.0 TOOLS REQUIRED
32mm Socket
Air Impact Wrench
Torque Wrench
3.0 PARTS REQUIRED
R22
1
/
2
” tyre and wheel assemblies
Wheel Nuts M22x1.5 - 10 off per
wheel
4.0 PROCEDURE
4.1 Check the wheel nuts are the correct
type and show no signs of damage.

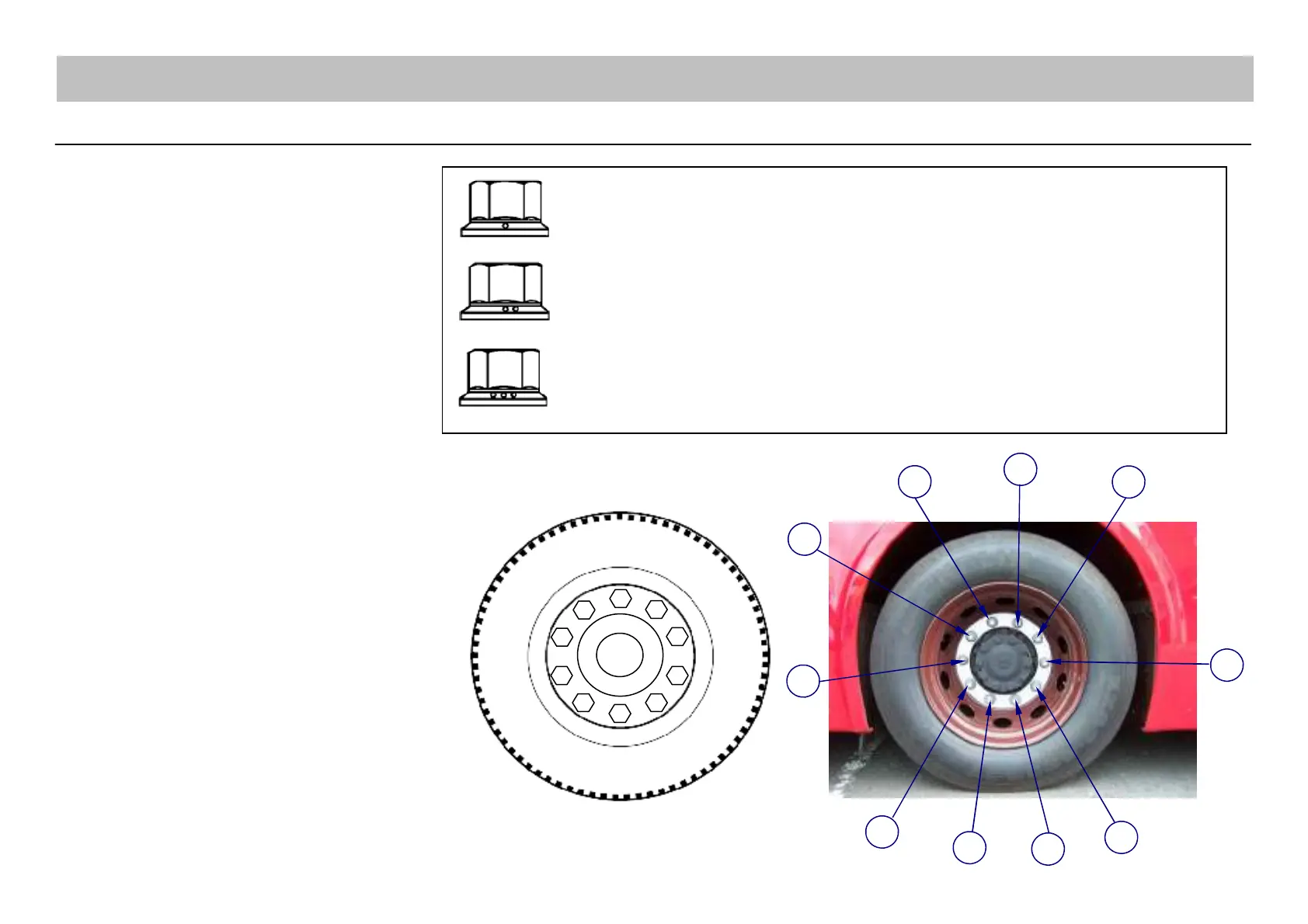

A spigot wheel nut with one ‘mark’ on the captive washer denotes that the captive
washer has been hardened to a degree where it is suitable for steel wheels only.
A spigot wheel nut with two ‘marks’ on the captive washer denotes that the captive
washer has undergone a controlled process which allows it to be used with both
steel and aluminium wheels.
A spigot wheel nut with three ‘marks’ on the captive washer denotes that the captive
washer is suitable for use on alloy wheel only.
