Revision 1.0 - 12/08/2013 78
High Voltage Lock Off and Isolation procedure
SAFETY CRITICAL
3.0 PROCEDURE

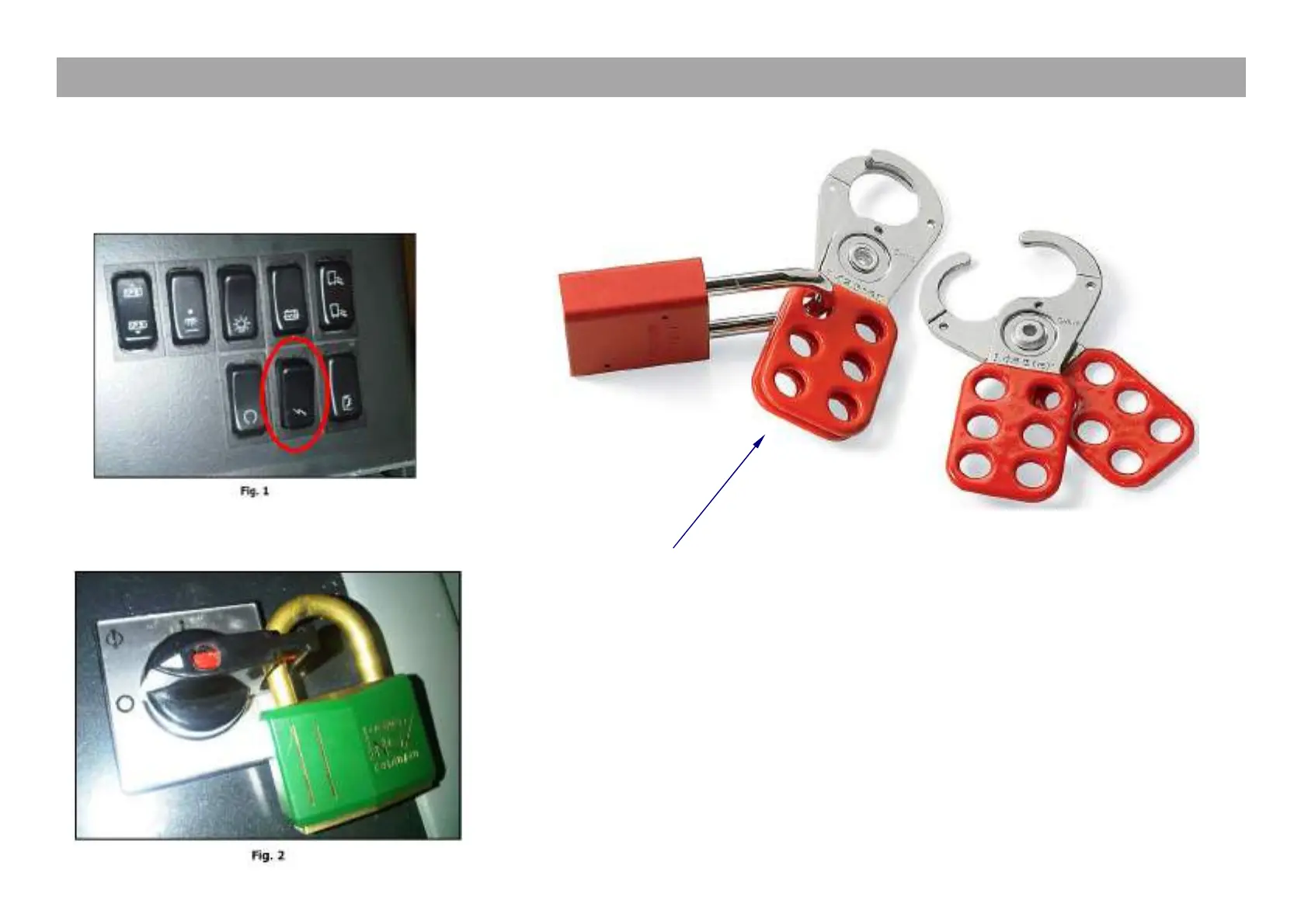

3.1 Switch the vehicle ignition switch off (Fig. 1).
3.2 Switch the battery master switch off and pad
lock to prevent switching on (Fig. 2).
You need a hasp for several people working on the vehicle so they can all lock the
system.
