High Voltage Lock Off and Isolation procedure
3.4 Wait 5 minutes to ensure that the inverter internal capacitors have safely discharged.
3.5 Remove the exterior panel to expose the battery back. Disconnect the HV power

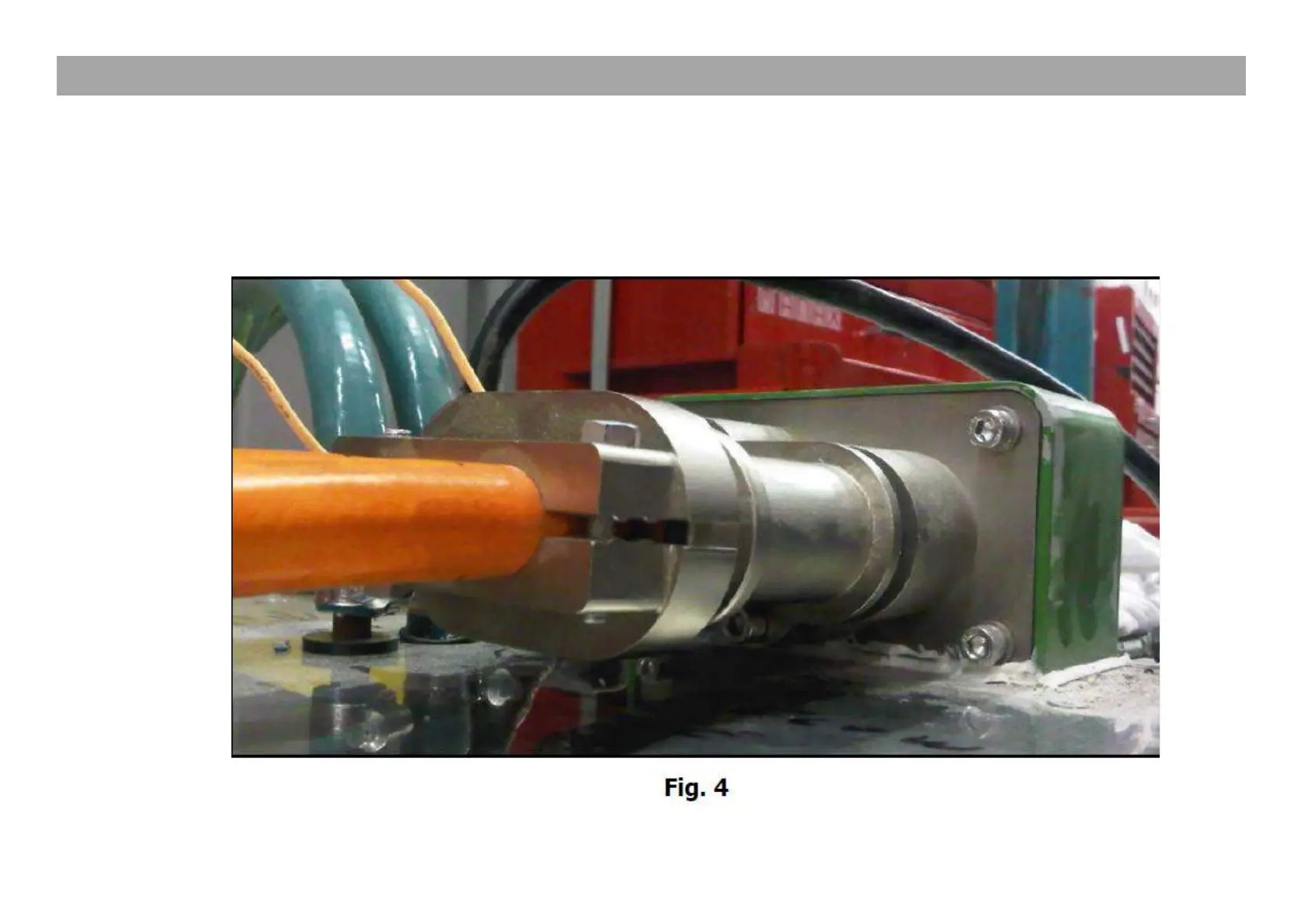

connector by unscrewing the two fixing screws and pulling the connector out (Fig. 4).
3.6 Remove the access hatch in the fibreglass inside the bus to expose the HV distribution box (Fig. 5).
SAFETY CRITICAL
