G-53
L3130 · L3430 · L3830 · L4630 · L5030, WSM
G GENERAL

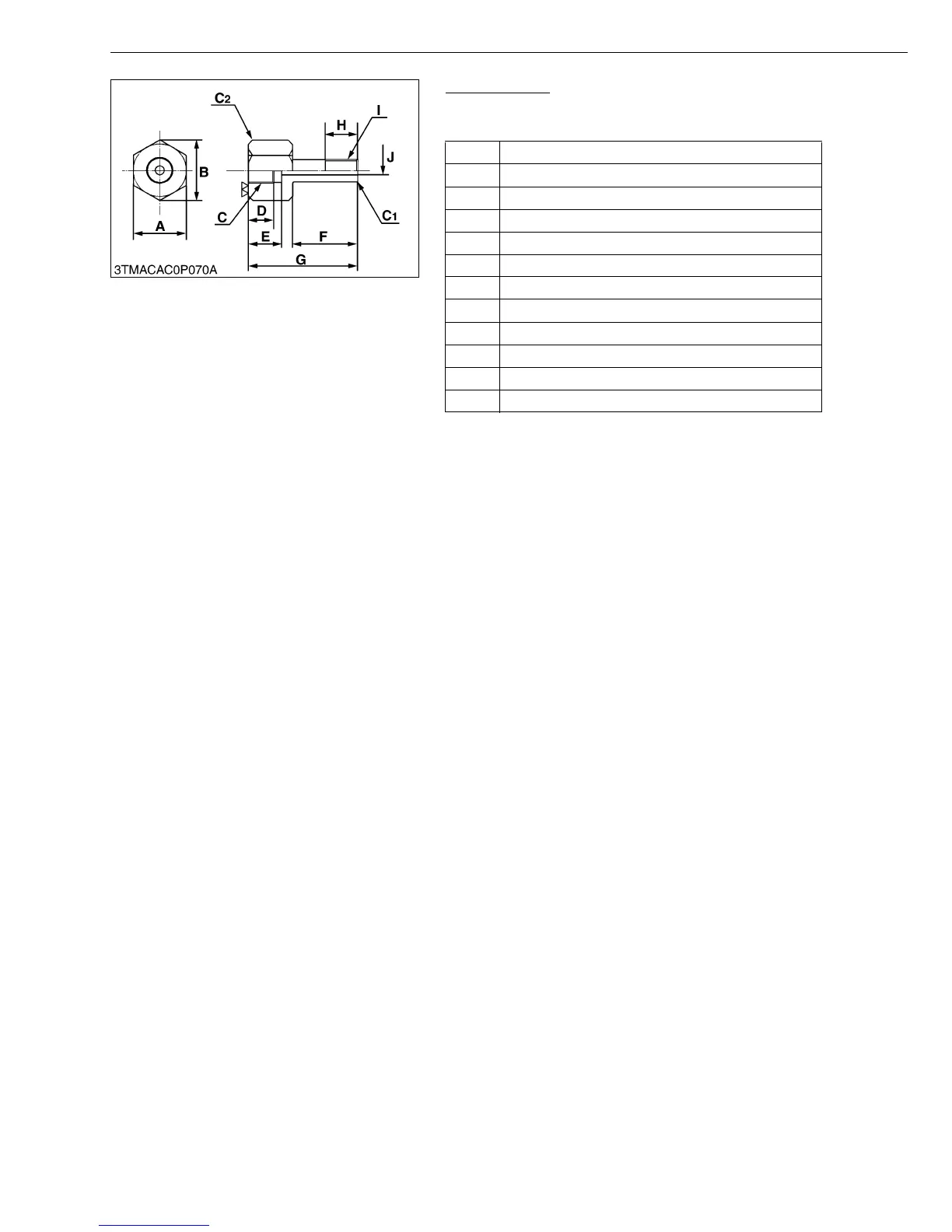

Valve Adaptor
Application: Use for measuring the system pressure of shuttle
valve.
W1039227
A 24 mm (0.94 in.)
B 27.7 mm (1.09 in.)
C PS1/4
D 11 mm (0.43 in.)
E 15 mm (0.59 in.)
F 40 mm (1.57 in.)
G 60 mm (2.36 in.)
H 15 mm (0.59 in.)
I PT1/8
J 4 mm dia. (0.15 in. dia.)
C
1 Chamfer 1 mm (0.039 in.)
C
2 Chamfer 2 mm (0.079 in.)
KiSC issued 02, 2007 A
