Würth VELDO - Parts List & Assembly

12
Note: * SMAW-Shielded Metal Arc Welding.
* MIG(heavy)-MIG on heavy metals.
* MIG(light)-MIG on light alloys.
* TIG, GTAW-Gas Tungsten Arc Welding
* SAW Shielded Semi-Automatic Arc Welding.
* PAC-Plasma Arc Cutting. * PAW-Plasma Arc Wedling.

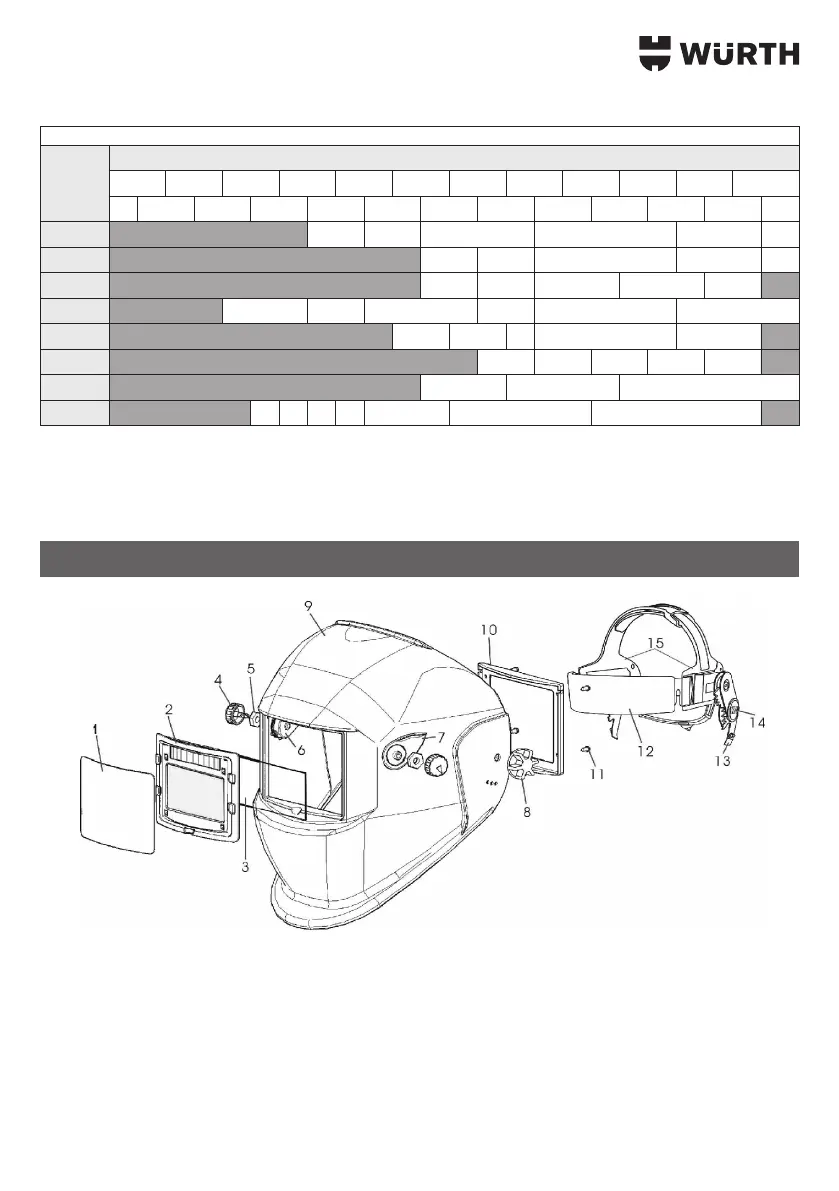

Shard Guide Table (No. 1)
Welding
Process
ARC Current (Amperes)
0.5 2.5 10 20 40 80 125 175 225 275 350 450
1 5 15 30 60 100 150 200 250 300 400 500
SMAW
9 10 11 12 13 14
MIG (Heavy)
10 11 12 13 14
MIG (Light)
10 11 12 13 14 15
TIG, GTAW
9 10 11 12 13 14
MAG/CO
2
10 11 12 13 14 15
SAW
10 11 12 13 14 15
PAC
11 12 13
PAW
8 9 10 11 12 13 14 15
Parts List & Assembly
1. Front cover lens
2. Auto-darkening filter cartridge
3. Inside cover lens
4. Shade knob/sensitivity knob
5. 2 x Shade nut
6. Shade-box/sensitivity-box
7. Shade scale plate/sensitivity scale plate
8. 2 x Block nut
9. Shell (welding mask)
10. Filter setting frame
11. 4 x Filter setting screw
12. Front headband
13. 2 x Adjustable limitation washer
14. 2 x Screw
15. Adjustable headband
