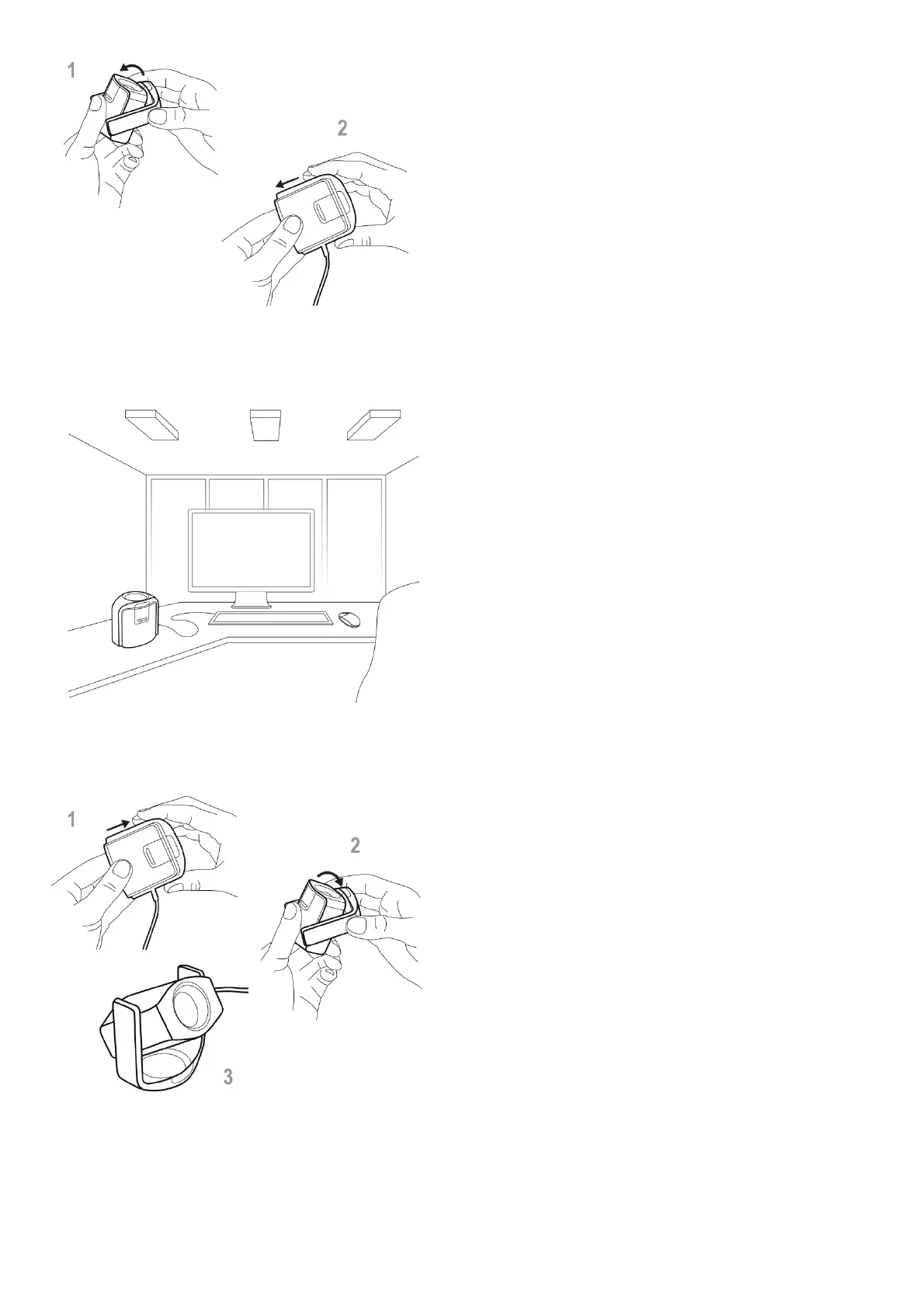

For ambient light measurements:
1. Rotate the ambient diffuser arm until the diffuser is positioned over the optics.
2. Press down on the ambient diffuser arm until it snaps into place over the optics.
Position the device on your work surface next to your display with an ambient diffuser pointing upwards.
Projector Measurement 1
For projector measurements:
1. Lift up on ambient diffuser arm.
2. Rotate ambient diffuser arm halfway towards the rear position.
3. Use the ambient diffuser arm as a stand for the device and position the device on a table in front of the projector screen. (A threaded tripod mount is also available on the bottom of
the device for use with a tripod.)
Projector Measurement 2
