97-0022-01-01 23
Xanbus-Enabled Device Configuration Using the SCP
Using the System Settings Menu
The System Settings menu displays information related to the operation
of the entire Xanbus system.

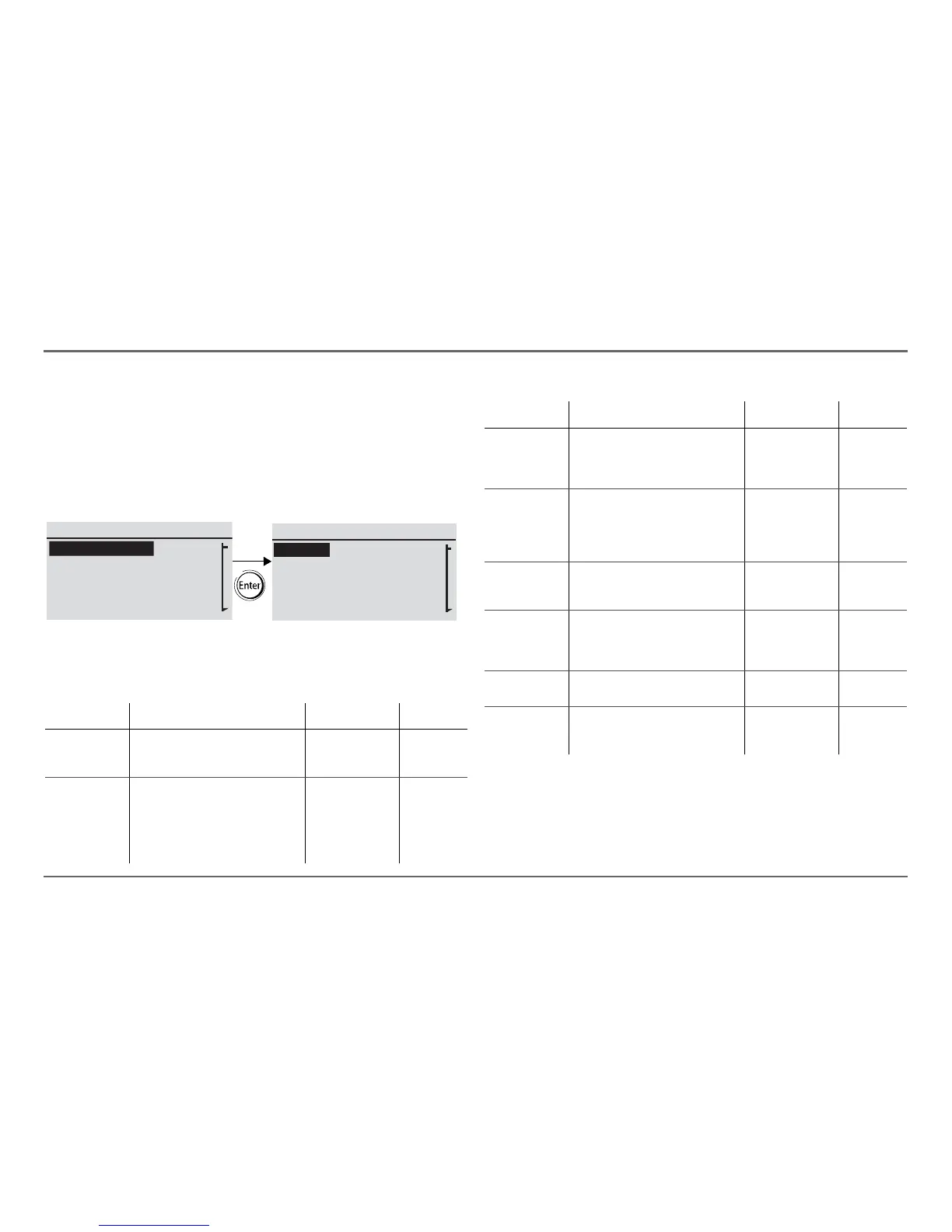

To view the System Settings menu:
◆ On the Select Device menu with System Settings highlighted,
press Enter.
System Settings Menu Configuration Items
Menu item Description Values/Action Default
Invert Enables or disables inverting for all
inverters in the system. Press Enter to
view and select values.
Enabled, Disabled Enabled
AC Charge Enables or disables charging on AC
input for all inverter/chargers in the
system. Press Enter to view and select
values. This command does not affect
Freedom SW Solar Charge
Controllers.
Enabled, Disabled Enabled
Select Device
System Settings
FSW3012 00
FSW3012 01
XSCP
System Settings
Invert
AC Charge
System Mode
Connection Names
System Mode Places all the devices in the system in
the selected mode. Press Enter to view
and select values. See “System
Modes” on page 25.
Operating, Standby Operating
Connection
Names
Customizes the names of AC and DC
connections in the system. For
example, “AC1” can be changed to
“Grid Power.”
House Battery, Start
Battery, Solar
Array, Grid,
Generator,
AC Load
n/a
View Fault List Displays the Fault List screen, which
shows active faults in the system (up to
20). Seepage30.
Press Enter to view
list.
n/a
View Warning
List
Displays the Warning List screen,
which shows active warnings in the
system
(up to 20).
Press Enter to view
list.
n/a
Clear All Flts/
Wrns
Clears active faults and warnings on
all devices on the system.
Press Enter to clear
faults and warnings
n/a
View Device Info Shows the model number, firmware
serial number and firmware revision
for each Xanbus-enabled device.
Press Down arrow
to view information
for each device.
n/a
Menu item Description Values/Action Default
