Features
2–2 975-0127-01-01
AC Panel

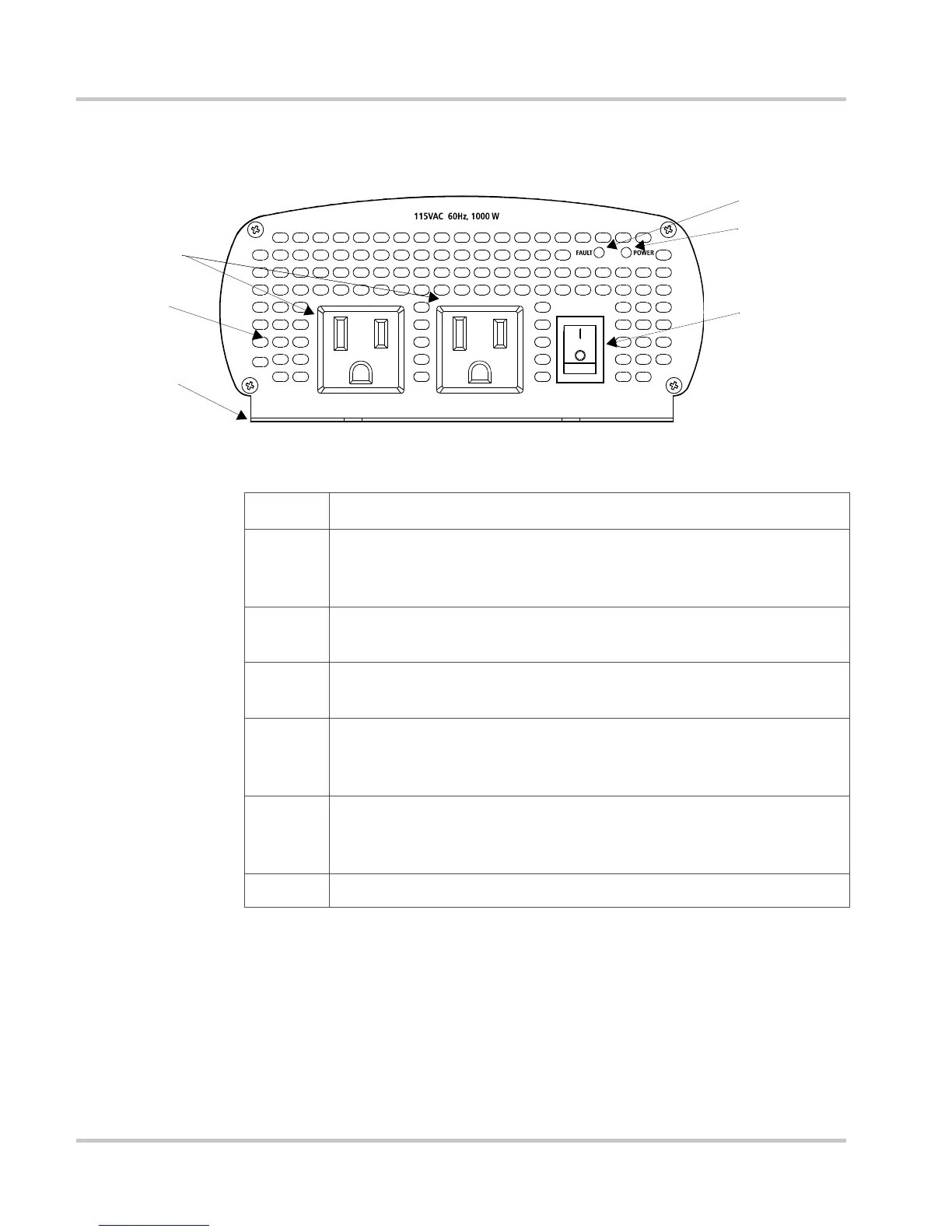

Figure 2-1
AC Panel
Feature Description
1
On/Off Switch turns the inverter’s control circuit on and off. This
switch is not a power disconnect switch. Disconnect AC and DC
power before working on any circuits connected to the inverter.
2 Power light is a green light indicating the On/Off Switch is on and
AC voltage is present at the inverter’s AC outlets.
3 Fault light is a red light indicating the inverter has shut down due to
low or high battery voltage, unit overload, or over temperature.
4 3-Prong AC Outlets:
XPower 1000 delivers a combined total of 1000 watts of continuous
AC power across two outlets.
5 Ventilation Opening must not be obstructed for the proper
operation of the inverter. When the inverter is mounted, the
ventilation opening must not point up or down.
6 Mounting Flange allows you to mount the inverter permanently.
1
3
2
4
6
1
5
