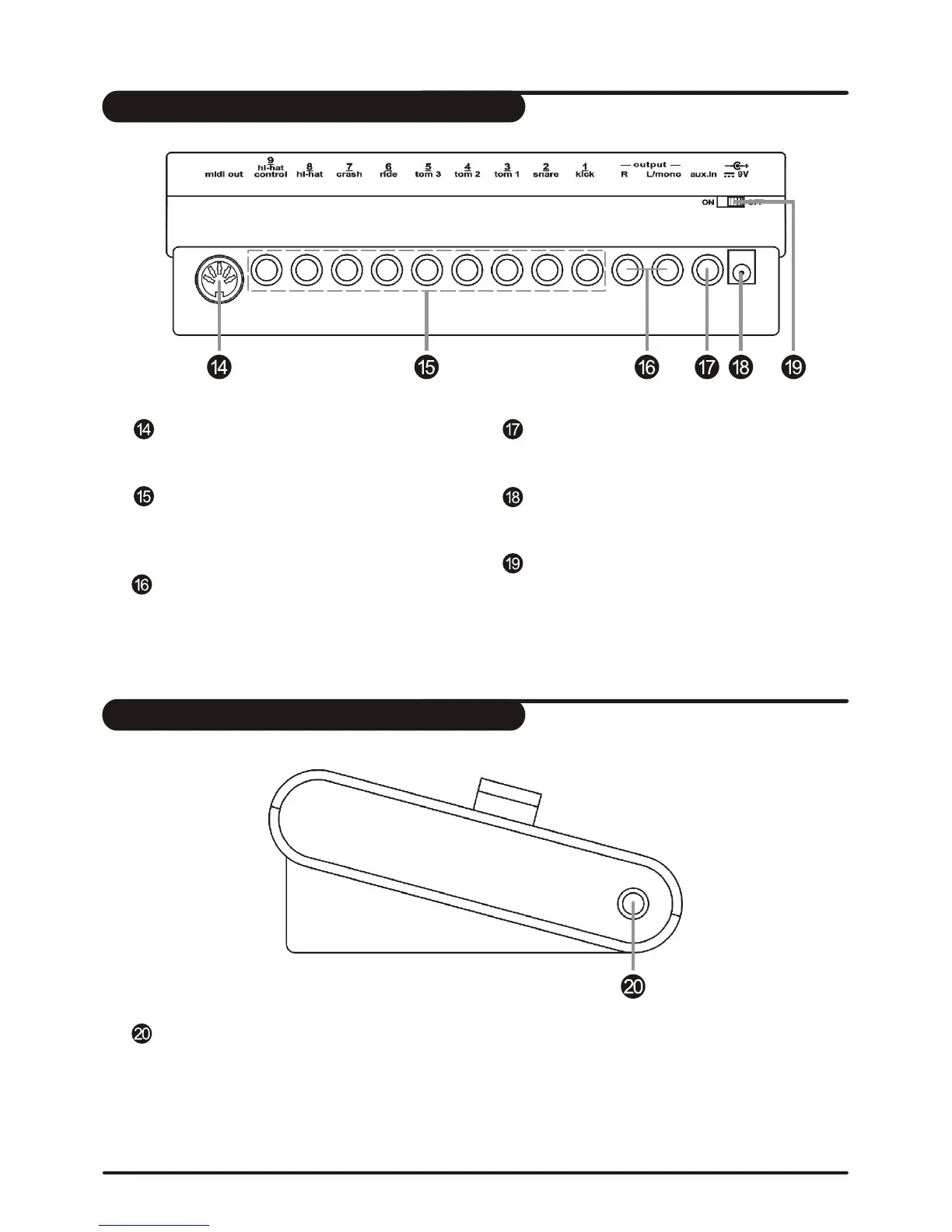

Trigger input jacks
Connect with pads, cymbals, hi-hat control,
kick trigger.
Output jacks (R, L/mono)
Connect with the amplifier or audio system.
For monaural output use the L/mono jack.
MIDI out jack
Connect with external sound module.
Aux.in jack
Connect with external sound source.
Power supply jack ( DC in 9V)
Connect an AC adaptor to this jack.
Power switch
Turn the power on/off.
Phones jack
Connect with to a pair of stereo headphones to this jack.
(Connect the headphones will not mute the output jacks.)
5
Rear Panel
Side Panel
