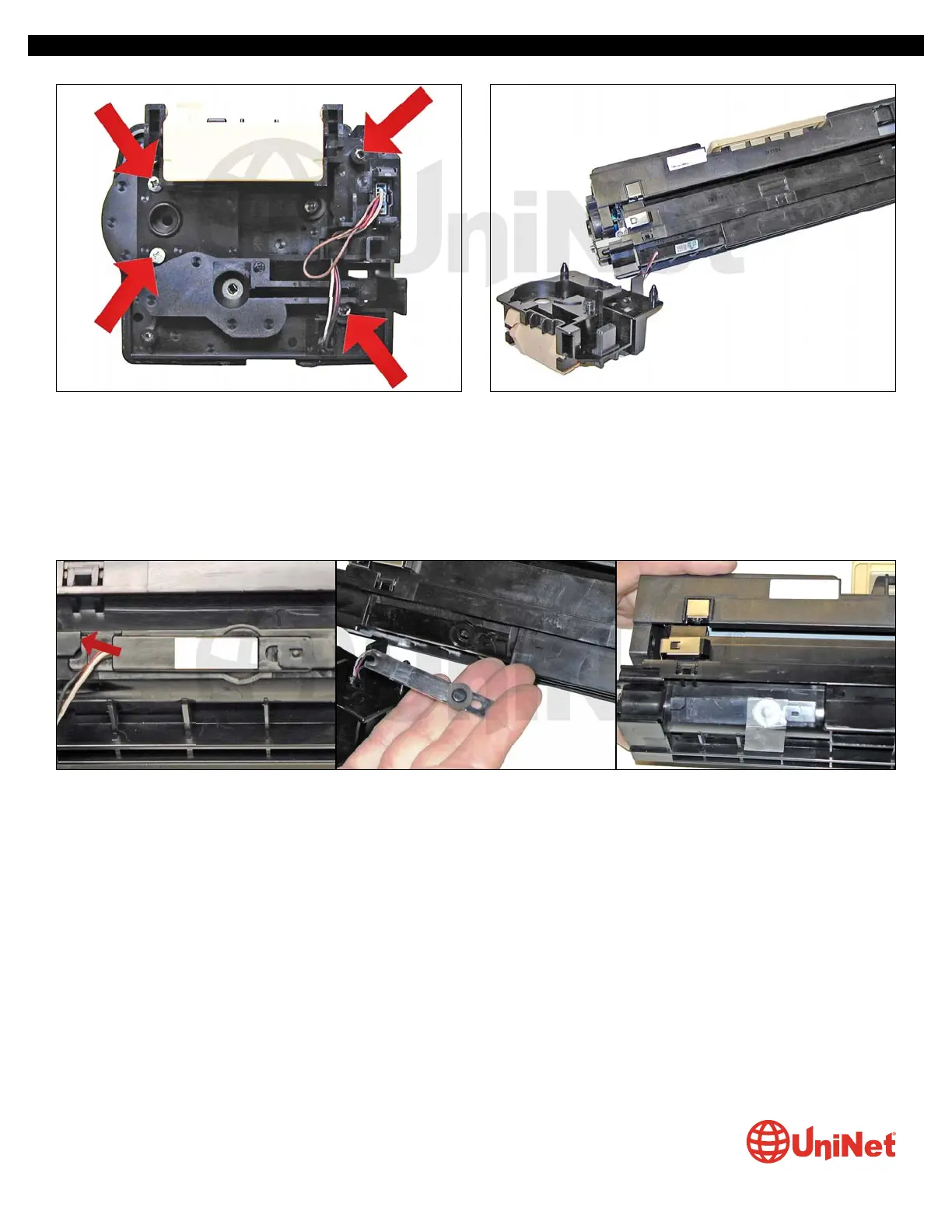

2. Remove the four screws from the inner end cap. Remove the end cap.
3. Follow the wires from the inner end cap to the sensor.
Pry up on the two locking tabs and remove the sensor.
Place a small piece of tape over the sensor hole.
XEROX WORKCENTRE M118 • 128 DRUM CARTRIDGE REMANUFACTURING INSTRUCTIONS
