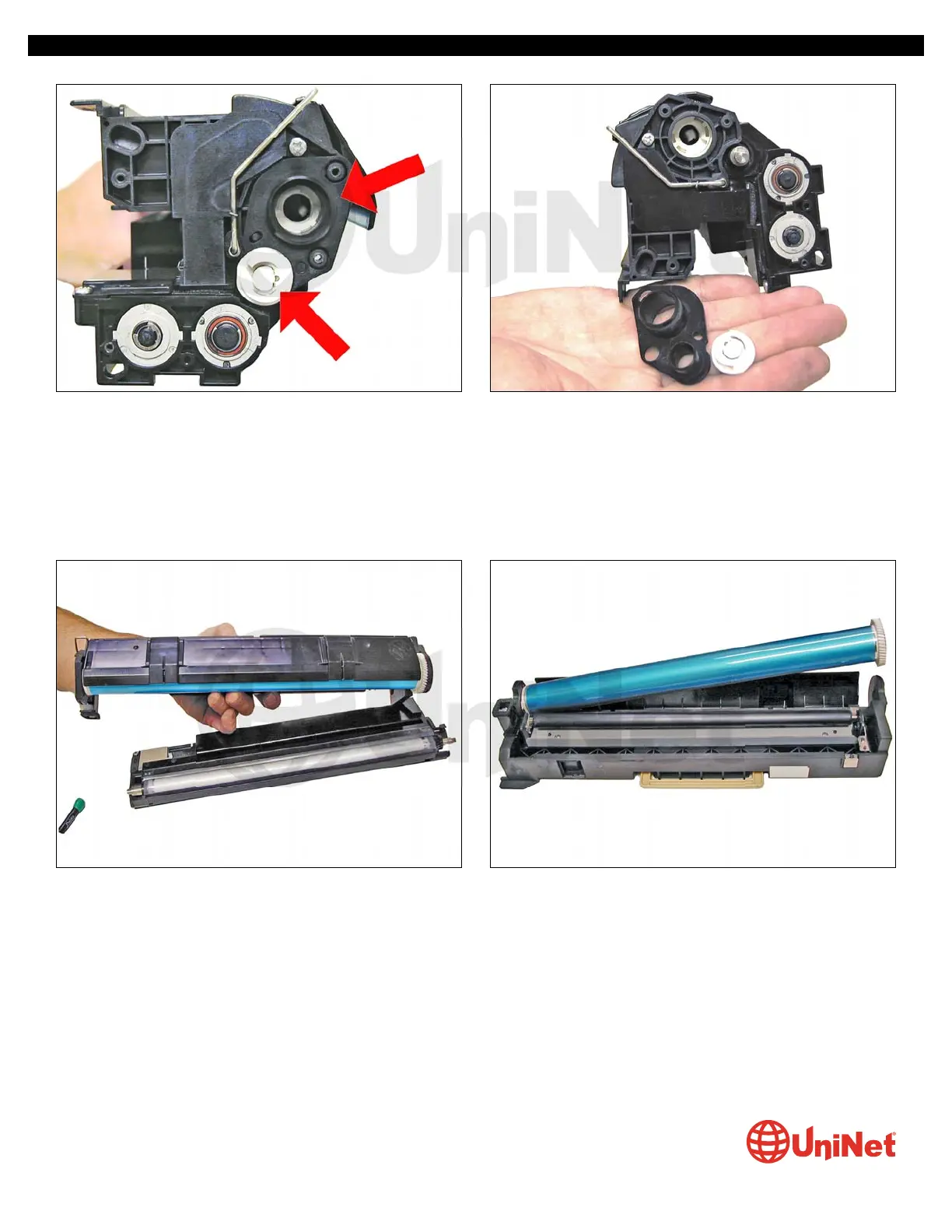

6. On the opposite side (non gear side) pry off the white gear and the drum bushing.
7. Carefully separate the two halves. 8. Remove the drum and place aside.
XEROX WORKCENTRE M118 • 128 DRUM CARTRIDGE REMANUFACTURING INSTRUCTIONS
