07

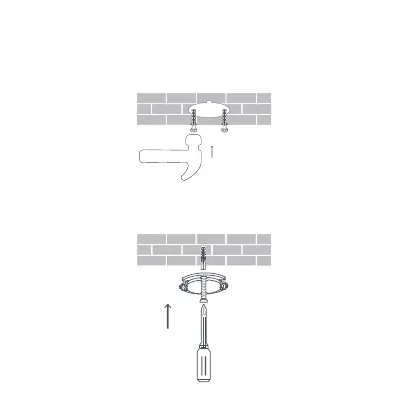

1. Stick the mounting template sticker in a proper position on the wall. Drill
holes in the wall that align with the holes on the sticker, with a diameter of
about 6 mm and a depth of about 30 mm.
2. Insert the plastic wall plugs into the drilled holes.
3. Place the side of the base with arrows facing forward, and then align the
holes. Insert the screws and then tighten them into the wall plugs with a
Phillips head screwdriver.
