13
Operation
Basic Operation Method
Frequency/Frequency Band Setting
1. Touch 100K~1Hz bits and the current bit will be selected. At this moment, turning
the big knob or scroll the mouse wheel can adjust the frequency value.
2. When MHz bit is touched or clicked with the mouse, a frequency band
switching/input frequency window will pop up, as shown in the figure below:

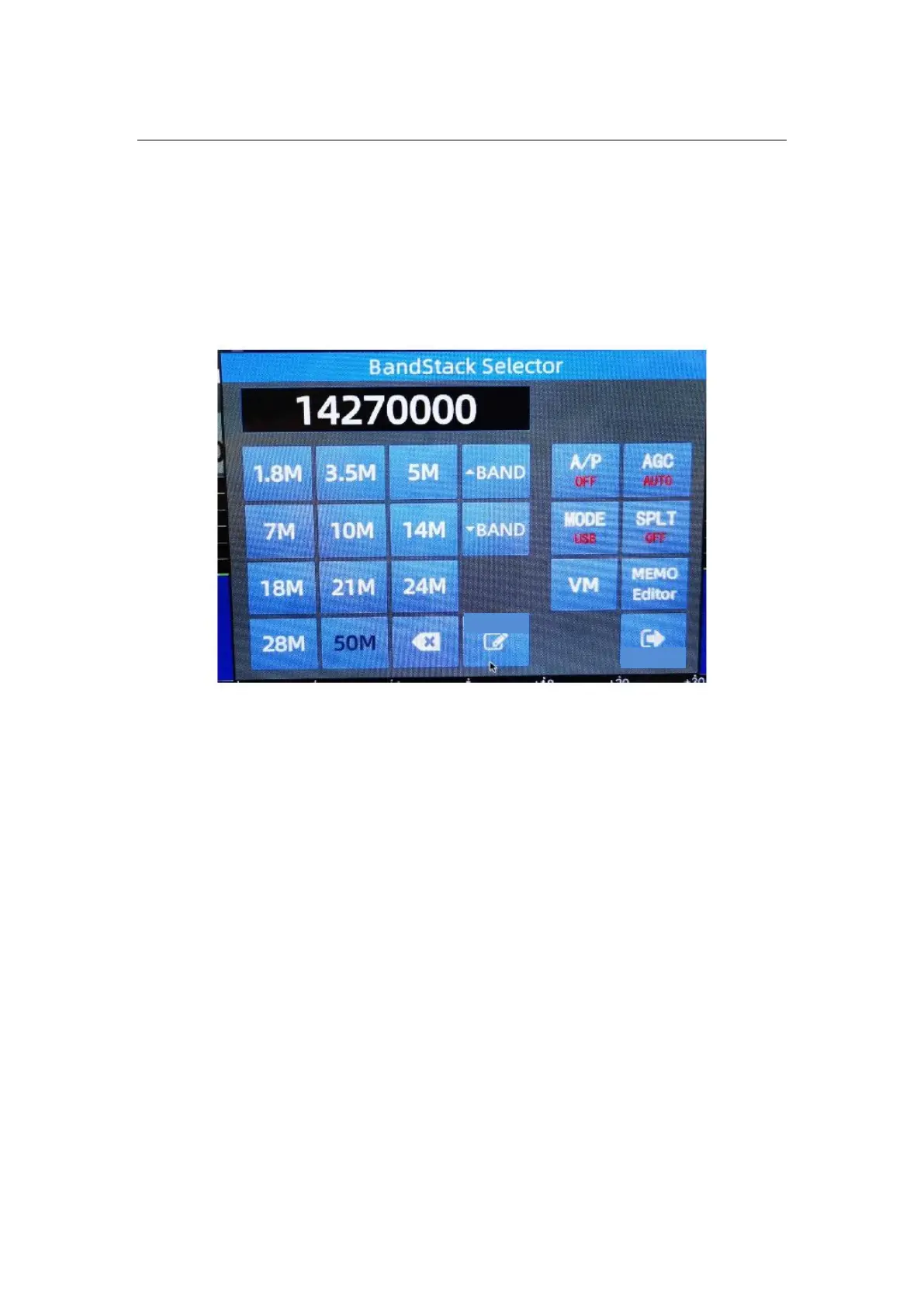

Band Selection/Frequency Input Pop-up Window
1) ▲BAND, ▼BAND: shortcut buttons of band sequence switching
2) It can also directly press the button of the corresponding band to switch to the
band.
3) Direct input frequency method:
➣ Click the input frequency button on the screen to enter the VFO Frequency
Editor interface;
➣ Input the required frequency values, including the decimal point, in turn
according to the megahertz representation. For example, if you want to switch to
7.068MHz, input 7.0, 6 and 8 in turn, then click OK button, and the input is finished;
➣ Press the exit window button to exit the current pop-up window.
4) VM: VFO and MEMO status switching
MEMO Editor: channel storage editor
SPLT: split frequency receiving & transmitting function switch
MODE: mode switching button
