Welcome to choose “XILIN” electric pallet stacker!
We hope our electric stackers will bring great convenience
to your work!
Please read the manual carefully before operation
This manual is a common manual. We reserve the right to modify
technology of the electric stacker. If there is anything in the
manual that is not consistent with the actual stacker, the actual
stacker should be considered correct and the manual is only for
reference.
************************************************************
Warning!
Operators must strictly conform to ISO3691 “Safety Specifications of Motor Industrial Vehicles”.
Untrained personnel are not allowed to operate the stacker.
************************************************************
According to ISO 3691 “Safety Specification of Motor Industrial Vehicles”, load capacity and lifting height of our
CDD Electric Pallet Stacker are stipulated as follows:
1．——When the lifting height of CDDR stacker is below 2500mm (including2500mm), the maximum
load capacity is the rated capacity. Overloading is prohibited.
2．——When the lifting height of CDDR stacker is above 2500mm (excluding2500mm), the load
capacity is less than the rated bearing capacity. Take the following diagrams as a reference with
the rated loads of 1000kg, 1500kg and 2000kg:
200 kg
1000
1000k g
800 kg
600 kg
400 kg
mm
60 0 700 800
900
40 00 mm
2500 mm
3500 mm
3300 mm
3 000 mm

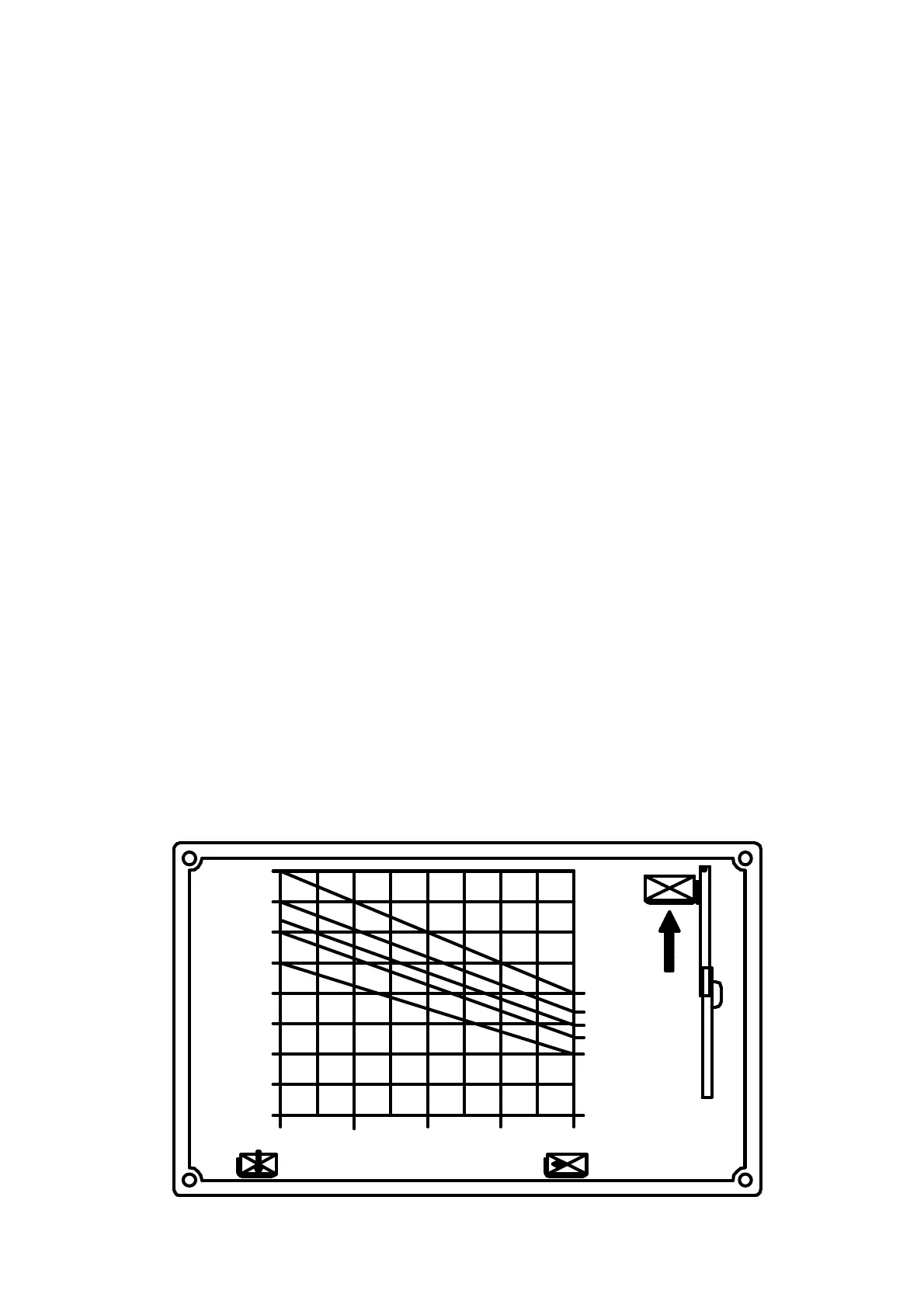

1.0 T L OAD CHA RT
To Next Page
