XINDAK DAC - Rear Panel Connectivity

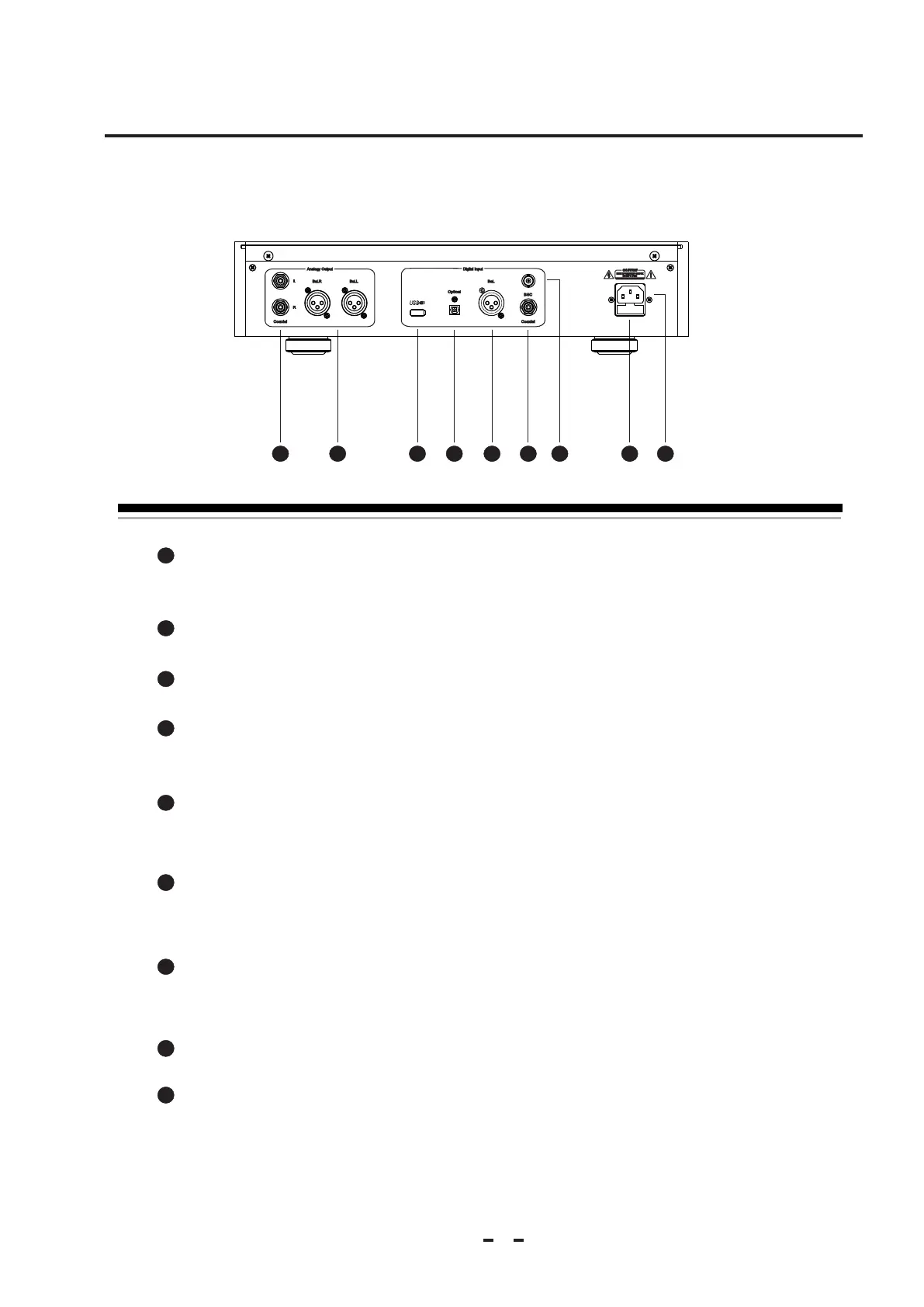

2.2 Rear Panel
Introduction
Chapter 2
1
2
3
4
5
6
7
RCA Audio Output Terminal
Output the analog stereo audio signal amplified by tube to the input port on the amplifier. This output port can
choose output audio signal of tube amplifying or output audio signal of operate amplifying.
Balanced Audio Output Terminal
Output the balanced audio signal (analog stereo)amplified by transistor to the input port on the amplifier.
USB Input Socket
Please connect this port to the computer by USB connection cable. (USB connection cable is not attached).
Digital Optical Input Terminal
It is used to input the digital audio signal. You could input the digital audio signal of the CD, VCD, DVD or the
computer to this unit by Optics cable.
Digital balanced Input Terminal
It is used to input the digital audio signal. You could input the digital audio signal of the CD, VCD, DVD or the
computer to this unit by .110Ohm balanced cord
Digital Coaxial Input Terminal
It is used to input the digital audio signal. You could input the digital audio signal of the CD, VCD, DVD or the
computer to this unit by .75Ohm coaxial cord
Digital BNC Input Terminal
It is used to input the digital audio signal. You could input the digital audio signal of the CD, VCD, DVD or the
computer to this unit by .75Ohm BNC cord
Fuse Socket
Use to install the fuse.
AC Input Socket
Connect the power cord to the AC inlet.
3
8
9
1 2
3
4
5
6
7
8 9
