Xinje TS Series User Manual

5

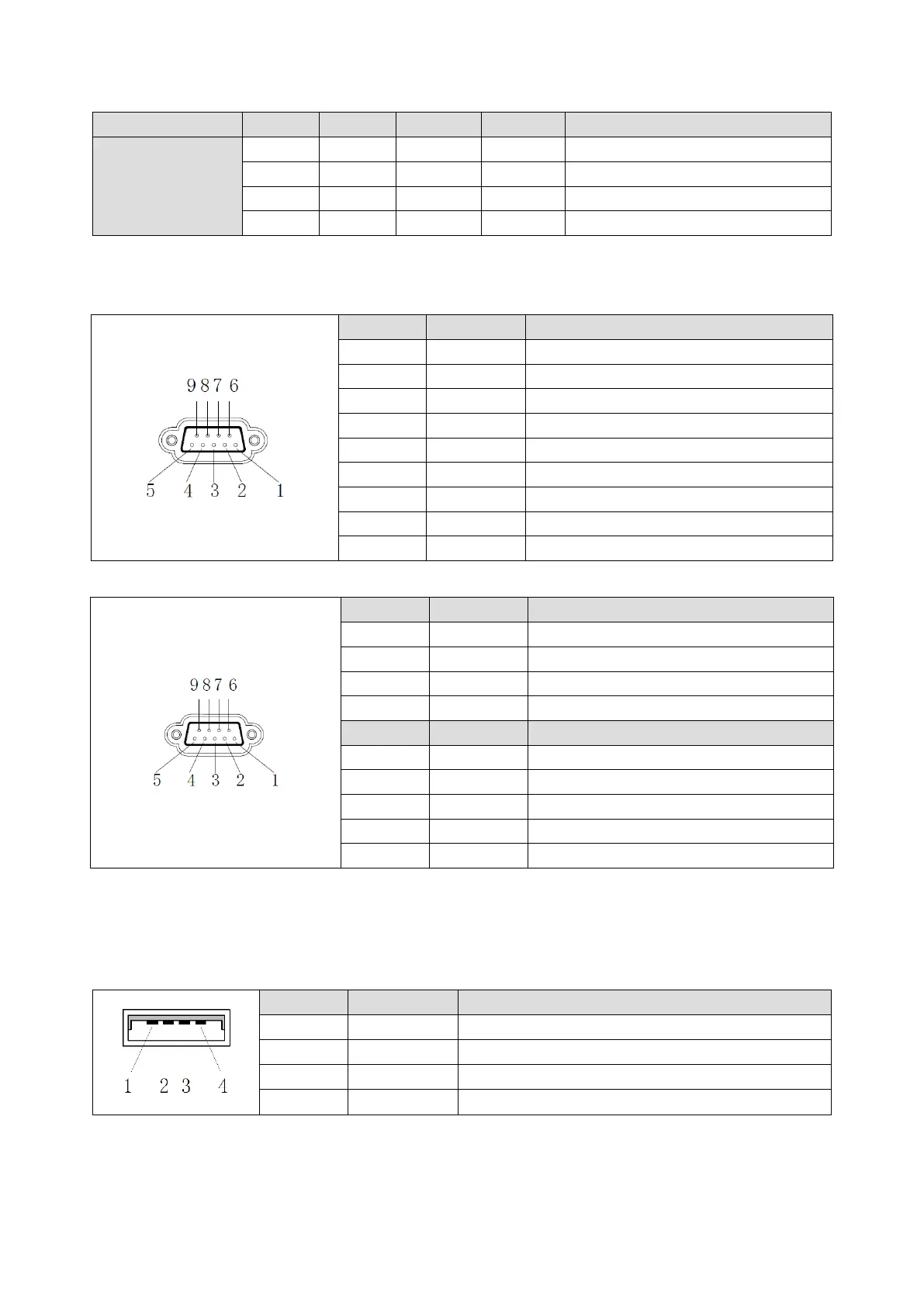

setting functions are as follows:
Switch
DIP1
DIP2
DIP3
DIP4
Function
Status
ON
OFF
OFF
OFF
Undefined
OFF
ON
OFF
OFF
USB flash disk import program
OFF
OFF
ON
OFF
Touch calibration
OFF
OFF
OFF
ON
Undefined
2. Communication port
(1) COM1 port pin definition:
Pin
Name
Explanation
1
NC
Null signal
2
RXD
RS232 communication receive data
3
TXD
RS232 communication send data
4
A
RS485 communication signal +
5
GND
Signal ground
6
NC
Null signal
7
B
RS485 communication signal -
8
NC
Null signal
9
NC
Null signal
(2) COM2 port pin definition:
Pin
Name
Explanation
1
TD+
RS422 communication send +
2
RXD
RS232 communication receive data
3
TXD
RS232 communication send data
4
A
RS485 communication signal +
Pin
Name
Explanation
5
GND
Signal ground
6
TD-
RS422 communication send -
7
B
RS485 communication signal -
8
RDD-
RS422 communication receive -
9
RDD+
RS422 communication receive +
3. USB-A port
TS5L series HMI is equipped with one USB-A (USB2.0) port as standard, which has the following functions:
realize backup management, complete data import and export functions, and the transmission rate reaches
480Mbps.
Pin
Definition
Explanation
1
+5V
+5V voltage signal
2
DATA+
Data﹢signal
3
DATA-
Data﹣signal
4
-5V
-5V voltage signal (ground signal)
4. USB-B port
TS5L series HMI has a USB-B (USB2.0) port, which is located on the upper right side of the reverse side and
realizes the following functions: data download function, transmission rate up to 480Mbps.
